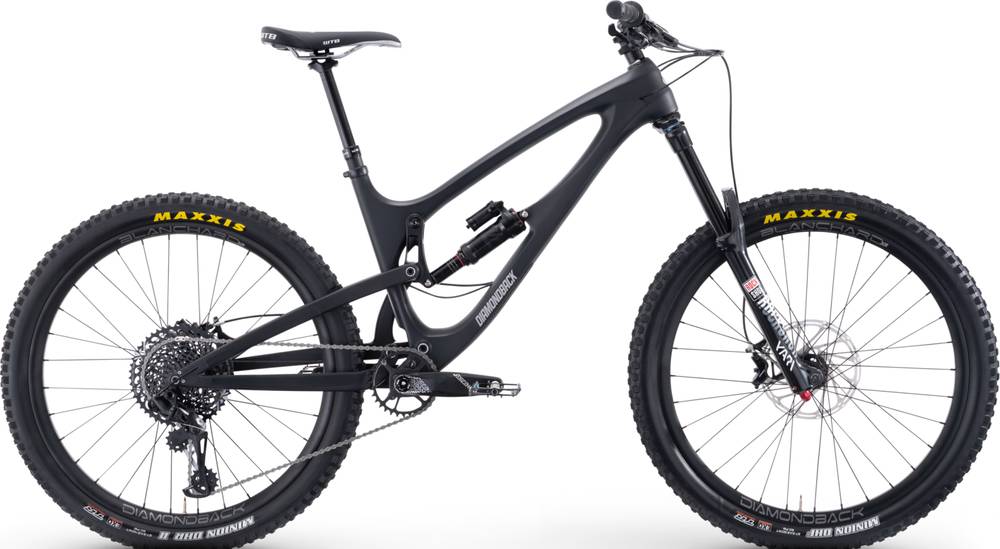

Diamondback Mission 1 Carbon 2021
2021 Mountain
Estimate price |
4,000$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 160mm -
Fork RockShox Yari RC
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New Mission Monocoque Carbon 160mm of Travel, Internal Cable Routing, Tapered Headtube, Threaded BB, ISCG-05 Tabs, Internal Dropper Post, 148x12mm Boost Hub Spacing, 27.5x2.6" ready, Post Mount Disc, w/ Replacable Hanger
Suspension Fork
Rockshox Yari RC 27.5" Boost 180mm of Travel
Rear Shock
Rockshox SuperDeluxe R, Metric 230x65 Spacing
Drivetrain
Rear Derailleur
SRAM GX Eagle
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle
Cassette
SRAM Eagle 10-50T
Crank
Truvativ Descendant 6K
Bottom Bracket
SRAM DUB
Chain
SRAM NX Eagle
Pedals
Diamondback CNC Alloy Sealed Pedal
Wheels
Front Hub
Alloy 2 sealed Bearing 15x110mm Boost
Rear Hub
Alloy 5 sealed Bearing 12x148mm Boost
Rims
Diamondback Blanchard 32, Tubeless Ready; 32 Hole
Spokes
14G Stainless
Tires
Maxxis DHF 2.50 & Maxxis DHR 2.40
Brakes
Brakes
SRAM Guide R
Brake Levers
SRAM Guide R
Cockpit
Stem
DB 35 Bore Stem
Handlebar
DB 35 Bore Bar
Grips
DB Lock-On Grip
Headset
FSA NO.57
Seat
Saddle
WTB Volt Race
Seatpost
Kindshok E201 125mm (S) / 150mm (M,L) Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 347.5 mm | 347.5 mm | 347.5 mm |
| Front Center | 760 mm | 788 mm | 820 mm |
| Rake | 39 mm | 40 mm | 45 mm |
| Trail | 130 mm | 129 mm | 123 mm |
| Stack | 593 mm | 602 mm | 611 mm |
| Reach | 428 mm | 450 mm | 473 mm |
| Top Tube Length | 582 mm | 607 mm | 632 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 457 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1187 mm | 1215 mm | 1247 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm |
| Standover Height | 653 mm | 672 mm | 690 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Mission 1 Carbon belongs to the Diamondback Mission model. Diamondback released 15 bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Diamondback Mission 1 Carbon 2021 is the most economical model, with a starting price of 4000$. Diamondback Mission 2 Carbon 2021 on the other hand costs 5000$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Diamondback Mission 1 Carbon price was 4000$. In conclusion, this bike price is 11.14% more expensive than the price of the average Enduro bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Mission 1 Carbon components
Fork
This bike has the RockShox Yari RC fork installed. The fork’s travel is 180mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Mission 1 Carbon has a rear shock with a travel of 160mm. The model Rockshox SuperDeluxe R is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Mission 1 Carbon model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Mission 1 Carbon has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
