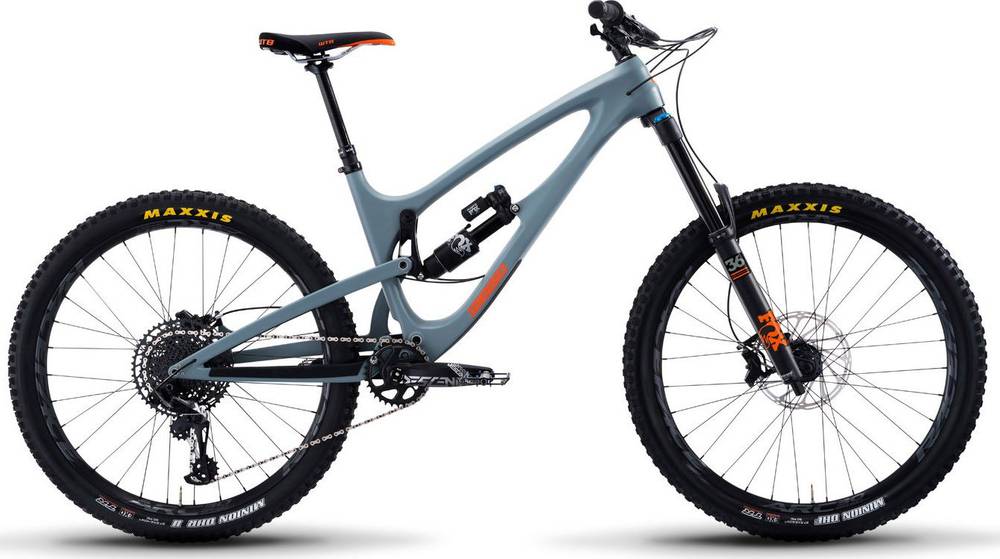

Diamondback Mission 2C Carbon 2019
2019 Mountain
Estimate price |
4,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset X01 Eagle, Truvativ Descendant -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New Mission Monocoque Carbon 160mm of Travel, Internal Cable Routing, Tapered Headtube, Threaded BB, ISCG-05 Tabs, Internal Dropper Post, 148x12mm Boost Hub Spacing, 27.5x2.6" ready, Post Mount Disc, w/ Replacable Hanger
Suspension Fork
Fox 36 Performance, 180mm Travel
Rear Shock
Fox Float X2 Performance Elite
Drivetrain
Rear Derailleur
SRAM XO1 Eagle
Shift Levers
SRAM XO1 Eagle
Cassette
SRAM Eagle 10-50T
Crank
Truvativ Descendant 7K
Bottom Bracket
SRAM DUB
Chain
SRAM GX Eagle
Pedals
Diamondback CNC Alloy Sealed Pedal
Wheels
Front Hub
Raceface Vault
Rear Hub
Raceface Vault
Rims
Raceface ARC
Spokes
14G Stainless
Tires
Maxxis DHF 2.50 & Maxxis DHR II 2.40
Brakes
Brakes
SRAM Code R
Brake Levers
SRAM Code R
Cockpit
Stem
Raceface Atlas
Handlebar
Raceface Atlas
Grips
DB Lock-On Grip
Headset
FSA NO.57
Seat
Saddle
WTB Volt Pro
Seatpost
Kindshok E201 125mm (S) / 150mm (M,L) Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 761 mm | 788 mm | 820 mm |
| Rake | 40 mm | 40 mm | 45 mm |
| Trail | 129 mm | 129 mm | 123 mm |
| Stack | 593 mm | 602 mm | 611 mm |
| Reach | 428 mm | 450 mm | 473 mm |
| Top Tube Length | 582 mm | 607 mm | 632 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 457 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1188 mm | 1215 mm | 1247 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm |
| Standover Height | 653 mm | 672 mm | 690 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Mission 2C Carbon belongs to the Diamondback Mission model. Diamondback released 15 bikes variations of this model so far. Take a sneak peek at all Diamondback Mission bikes models from 2019, by clicking here.
Model range prices
Diamondback Mission 1C Carbon 2019 is the most economical model, with a starting price of 3999$. Diamondback Mission 2C Carbon 2019 on the other hand costs 4999$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Diamondback Mission 2C Carbon price was 4999$. If we compare this with the average Enduro bike cost we notice that the price is 38.9% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Mission 2C Carbon components
Fork
The Mission 2C Carbon comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 180mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Diamondback Mission 2C Carbon bike has the Fox Float X2 Performance Elite model installed, and has a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Mission 2C Carbon bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mission 2C Carbon has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Diamondback Mission 2C Carbon bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Mission 2C Carbon. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
