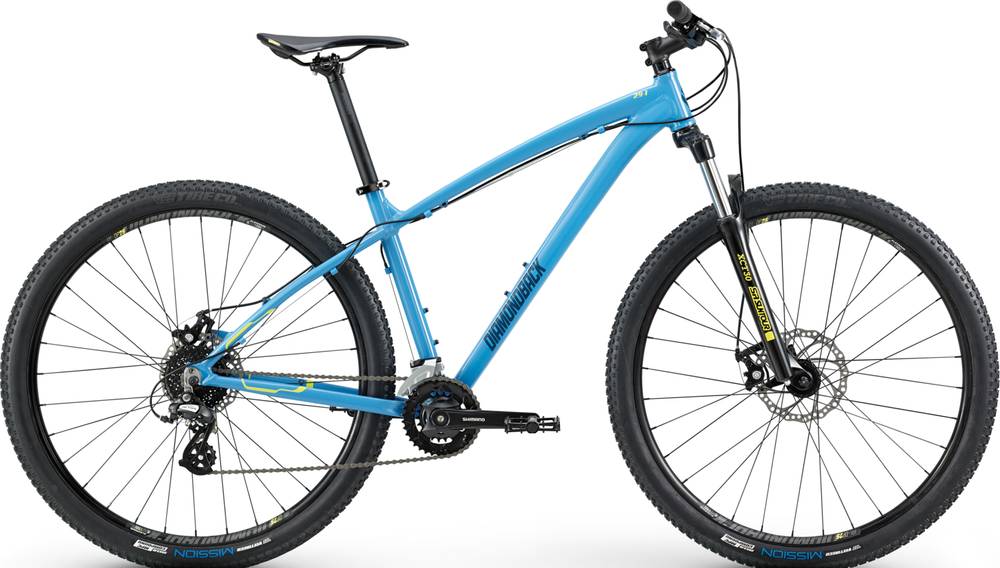

Diamondback Overdrive 29 1 2020
2020 Mountain
Estimate price |
730$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Overdrive 29" Butted 6061-T6 Aluminum, Forged Drop Outs, w/ Replaceable Hanger, Disc Only
Suspension Fork
SR Suntour XCT30 29", Coil Spring, 100mm Travel, w/ Preload Adjust
Drivetrain
Rear Derailleur
Shimano Altus M310, 8 Speed
Front Derailleur
Shimano Altus, Top Swing, Dual Pull, 34.9mm Clamp Diameter
Shift Levers
Shimano Altus rapid fire, 2x8 Speed
Cassette
Shimano HG31 Cassette, 8 Speed, 11-32T
Crank
Shimano Altus Alloy, 36/22T
Bottom Bracket
Steel Cartridge, 122mm Spindle
Chain
KMC Z82, 8 Speed
Pedals
DB4L Alloy Platform
Wheels
Front Hub
32h Alloy w/ CNC Disc Mount; 100mm
Rear Hub
32h Alloy Cassette w/ CNC Disc mount; 135mm
Rims
DP-25, 32 Hole with 22.4 ID; Doublewall
Spokes
14g Stainless Steel
Tires
Vee Rubber Mission frt 29x2.25 rr 29x2.1
Brakes
Brakes
Tektro Aries Mechanical Disc w/ 180mm Front / 160mm Rear Rotors
Brake Levers
Tektro Alloy
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
DB Laser Series, 720mm Wide, 15mm Rise, 31.8mm Bar Bore
Grips
DB4L 135mm Kraton
Headset
FSA IS-3/NO.11 Integrated Style
Seat
Saddle
DB Race M-Series Saddle
Seatpost
DB Alloy Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.435 mm | 1.418 mm | 1.438 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 632 mm | 662 mm | 683 mm | 702 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 80 mm | 80 mm | 81 mm | 87 mm |
| Stack | 597 mm | 607 mm | 624 mm | 653 mm |
| Reach | 397 mm | 423 mm | 440 mm | 454 mm |
| Top Tube Length | 580 mm | 609 mm | 630 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1074 mm | 1104 mm | 1125 mm | 1144 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 767 mm | 782 mm | 810 mm | 831 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Overdrive 29 1 is a Diamondback Overdrive model. Diamondback launched 37 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Diamondback Overdrive 29 1 2020 is the cheapest bike model and costs 730$. Diamondback Overdrive 29 1C 2020 is the most expensive one and costs 2000$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Diamondback Overdrive 29 1 price was 730$. In conclusion, this bike price is 160.96% lower than the price of the average Crosscountry bike.
Overdrive 29 1 components
Fork
Diamondback Overdrive 29 1 2020 bike is equipped with the SunTour XCT fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Overdrive 29 1 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Overdrive 29 1 comes with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Diamondback Overdrive 29 1 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
