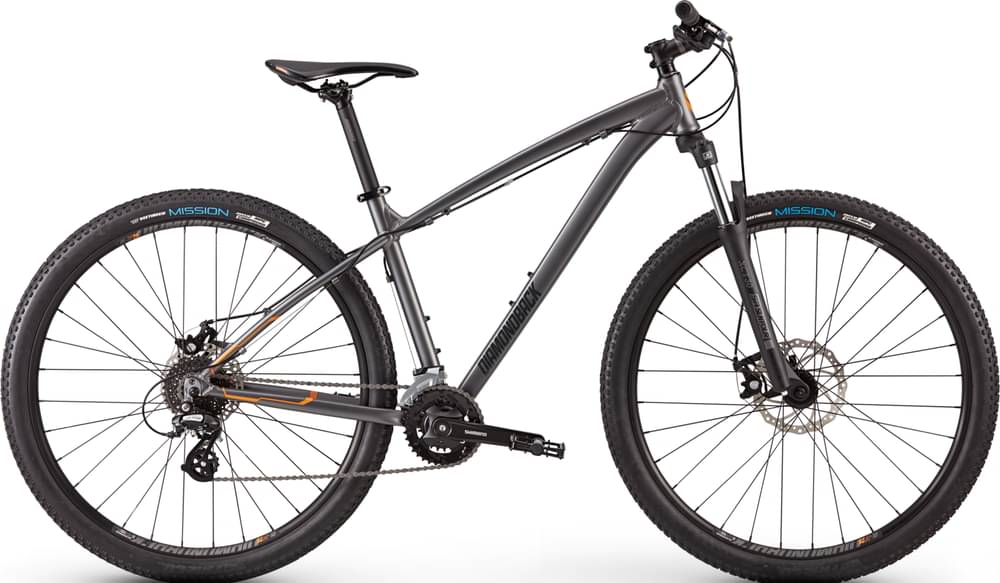

Diamondback Overdrive 29 1 2021
2021 Mountain
Estimate price |
730$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Overdrive 29" Butted 6061-T6 Aluminum Forged Drop Outs, w/ Replaceable Hanger, Disc Only
Suspension Fork
SR Suntour XCT30 29", Coil Spring, 100mm Travel, w/ Preload Adjust
Drivetrain
Rear Derailleur
Shimano Altus M310, 8 Speed
Front Derailleur
Shimano Altus, Top Swing, Dual Pull, 34.9mm Clamp Diameter
Shift Levers
Shimano EF-500 EZ-fire, 2x8 Speed
Cassette
Shimano HG31 Cassette, 8 Speed, 11-32T
Crank
Shimano Altus Aluminum 36/22T
Bottom Bracket
Steel Cartridge, 122mm Spindle
Chain
KMC Z82, 8 Speed
Pedals
DB4L Alloy Platform
Wheels
Front Hub
32h Alloy w/ CNC Disc Mount; 100mm
Rear Hub
32h Alloy Cassette w/ CNC Disc mount; 135mm
Rims
DP-25, 32 Hole with 22.4 ID; Doublewall
Spokes
14g Stainless Steel
Tires
Vee Rubber Mission Front 29x2.25 / Rear 29x2.1
Brakes
Brakes
Radius BH-960 Hydraulic Disc w/ 180mm Front / 160mm Rear Rotors
Brake Levers
Radius Hydraulic
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
DB Laser Series, 720mm Wide, 15mm Rise, 31.8mm Bar Bore
Grips
DB4L 135mm Kraton
Headset
FSA IS-3/NO.11 Integrated Style
Seat
Saddle
DB Race M-Series Saddle
Seatpost
DB Alloy Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.435 mm | 1.418 mm | 1.438 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 632 mm | 662 mm | 683 mm | 702 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 80 mm | 80 mm | 81 mm | 87 mm |
| Stack | 597 mm | 607 mm | 624 mm | 653 mm |
| Reach | 397 mm | 423 mm | 440 mm | 454 mm |
| Top Tube Length | 580 mm | 609 mm | 630 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1074 mm | 1104 mm | 1125 mm | 1144 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 767 mm | 782 mm | 810 mm | 831 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Overdrive 29 1 is a Diamondback Overdrive model. Diamondback launched 37 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Diamondback Overdrive 29 1 2021 is the most affordable bike of this model and has a price of 730$. On the other hand, Diamondback Overdrive 29 3 2021, is the most expensive and costs 1400$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Diamondback released this model in 2021, its price was 730$. Comparing this to the average Crosscountry bike price, we see that the price is 160.96% smaller.
Overdrive 29 1 components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Overdrive 29 1 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
