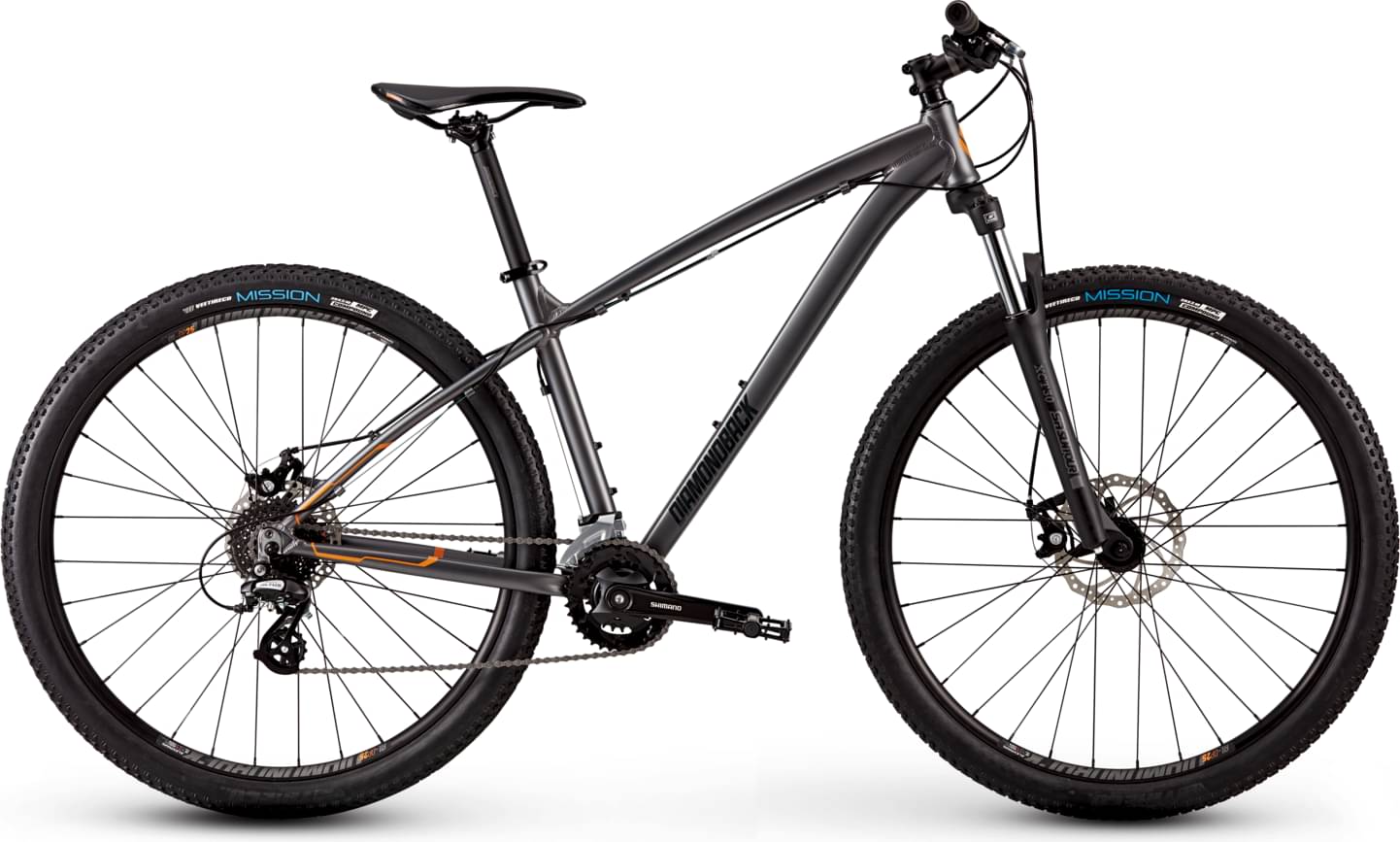

Diamondback Overdrive 29 1 2023
2023 Mountain
Estimate price |
750$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Overdrive 29" Butted 6061-T6 Aluminum Forged Drop Outs, w/ Replaceable Hanger, Disc Only
Suspension Fork
SR Suntour XCT30 29", Coil Spring, 100mm Travel, w/ Preload Adjust
Drivetrain
Rear Derailleur
Shimano Altus M310, 8 Speed
Front Derailleur
Shimano Altus, Top Swing, Dual Pull, 34.9mm Clamp Diameter
Shift Levers
Shimano EF-500 EZ-fire, 2x8 Speed
Cassette
Shimano HG31 Cassette, 8 Speed, 11-32T
Crank
Shimano Altus Aluminum 36/22T
Bottom Bracket
Steel Cartridge, 122mm Spindle
Chain
KMC Z82, 8 Speed
Pedals
DB4L Alloy Platform
Wheels
Front Hub
32h Alloy w/ CNC Disc Mount; 100mm
Rear Hub
32h Alloy Cassette w/ CNC Disc mount; 135mm
Rims
DP-25, 32 Hole with 22.4 ID; Doublewall, Not Taped
Spokes
14g Stainless Steel
Tires
Vee Rubber Mission Front 29x2.25 / Rear 29x2.1, Non Tubeless Tire
Brakes
Brakes
Tektro Mechanical Disc w/ 180mm Front / 160mm Rear Rotors
Brake Levers
Shimano EF500
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
DB Laser Series, 720mm Wide, 15mm Rise, 31.8mm Bar Bore
Grips
DB4L 135mm Kraton
Headset
FSA IS-3/NO.11 Integrated Style
Seat
Saddle
DB Race M-Series Saddle
Seatpost
DB Alloy Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.435 mm | 1.418 mm | 1.438 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 632 mm | 662 mm | 683 mm | 702 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 80 mm | 80 mm | 81 mm | 87 mm |
| Stack | 597 mm | 607 mm | 624 mm | 653 mm |
| Reach | 397 mm | 423 mm | 440 mm | 454 mm |
| Top Tube Length | 580 mm | 609 mm | 630 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1074 mm | 1104 mm | 1125 mm | 1144 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 767 mm | 782 mm | 810 mm | 831 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Overdrive 29 1 is part of the Diamondback Overdrive model. Diamondback launched 37 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Diamondback Overdrive 29 1 2023 has a starting price of 750$. Diamondback Overdrive 29 3 2023 on the other hand is the most expensive at 1400$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 750$. Comparing the average cost of a Crosscountry bike to this one, you will see that Overdrive 29 1 price is 154% smaller.
Overdrive 29 1 components
Fork
The Overdrive 29 1 comes factory-installed with the Suntour XCT fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Overdrive 29 1 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
