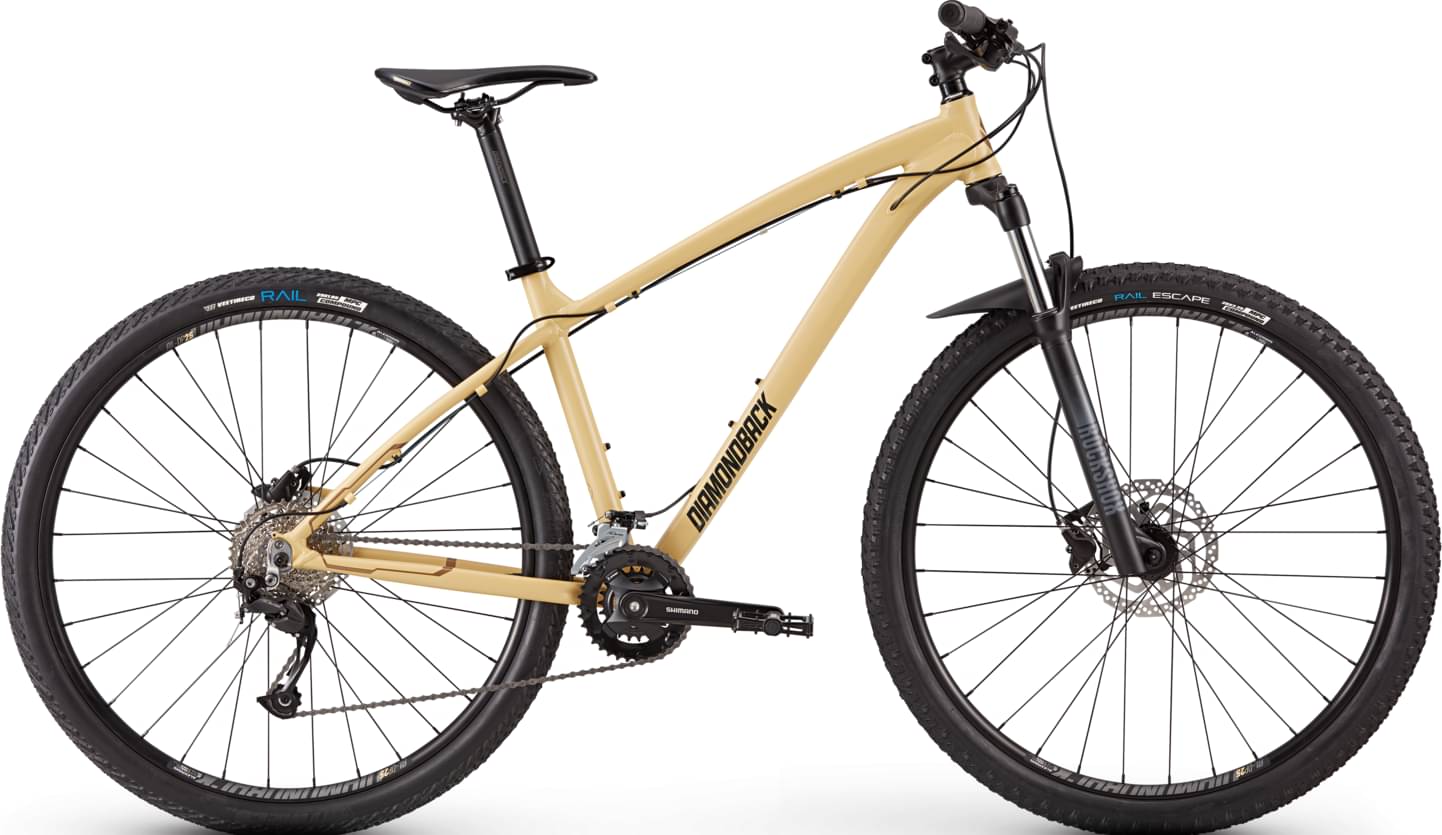

Diamondback Overdrive 29 2 2022
2022 Mountain
Estimate price |
1,000$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Overdrive 29" Butted 6061-T6 Aluminum Formed Top / Down Tube, Machined Headtube, Boost 141 QR, Forged Drop Outs, w/ Replaceable Hanger
Suspension Fork
Rockshox Judy TK, Coil Spring, Turn Key Lockout, 29" 100mm Travel, Quick Release
Drivetrain
Rear Derailleur
Shimano Alivio, M3100 Shadow Plus, 9 speed
Front Derailleur
Shimano Alivio side swing
Shift Levers
Shimano Altus, 2x9 RapidFire Plus
Cassette
Shimano 9 Speed, 11-36T
Crank
Shimano Altus Aluminum 36/22T
Bottom Bracket
CH-52 Sealed Cartridge
Chain
KMC X9
Pedals
DB4L Aluminum Platform w/ Replaceable Pins
Wheels
Front Hub
Aluminum 32h Disc, 6 Bolt Quick Release
Rear Hub
Aluminum Cassette Disc, 6 Bolt, 141 Boost, Quick Release
Rims
DB DP-25 Aluminum 25mm internal width, Double Wall Rim, 32H
Spokes
14g Stainless Steel
Tires
Vee Rubber Rail Escape 29x2.25"
Brakes
Brakes
Shimano MT200 Hydraulic Disc w/ 180mm Front / 160mm Rear Rotors
Brake Levers
Shimano MT200 Hydraulic
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
DB "Flanged" Lock-on, 135mm Silcone
Headset
FSA IS-3/NO.11N
Seat
Saddle
DB Race M-series Saddle
Seatpost
DB Aluminum Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.435 mm | 1.418 mm | 1.438 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 632 mm | 662 mm | 683 mm | 702 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 80 mm | 80 mm | 81 mm | 87 mm |
| Stack | 597 mm | 607 mm | 624 mm | 653 mm |
| Reach | 397 mm | 423 mm | 440 mm | 454 mm |
| Top Tube Length | 580 mm | 609 mm | 630 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1074 mm | 1104 mm | 1125 mm | 1144 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 767 mm | 782 mm | 810 mm | 831 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Overdrive 29 2 completes the Diamondback Overdrive model. There are 37 bikes that carry this model name. Take a sneak peek at all Diamondback Overdrive bikes models from 2022, by clicking here.
Model range prices
Diamondback Overdrive 29 1 2022 is the cheapest bike model and costs 750$. Diamondback Overdrive 29 3 2022 is the most expensive one and costs 1400$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1000$. Comparing the average cost of a Crosscountry bike to this one, you will see that Overdrive 29 2 price is 90.5% smaller.
Overdrive 29 2 components
Fork
Diamondback Overdrive 29 2 2022 bike is equipped with the RockShox Judy fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Overdrive 29 2 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Overdrive 29 2 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
