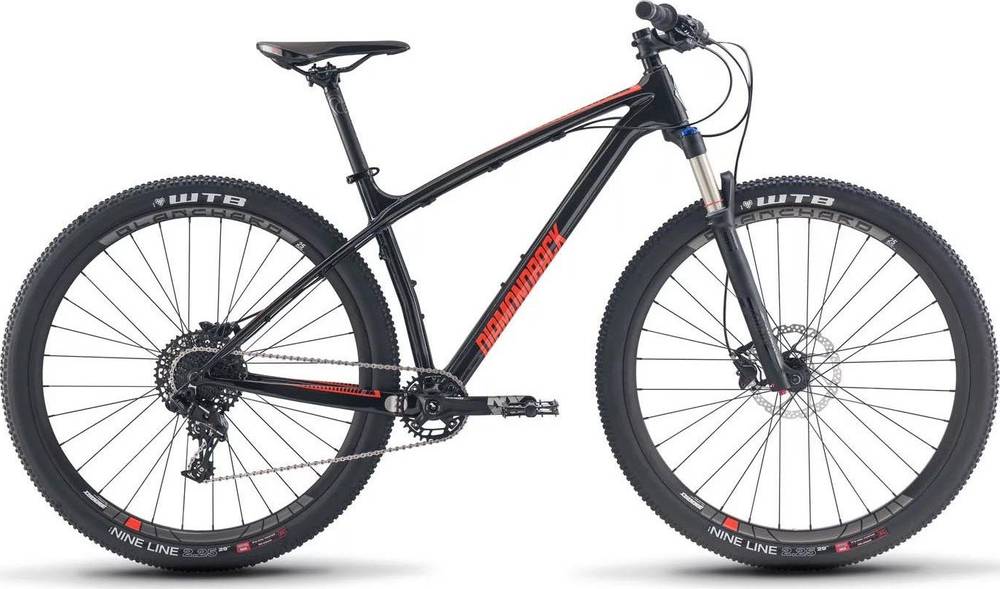

Diamondback Overdrive 29C 1 Carbon 2019
2019 Mountain
Estimate price |
1,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset NX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB AMMP XC MTB Carbon Technology, Full Monocoque Construction, 142x12 Carbon Drop Outs, w/ Taper Headtube, Press-Fit 30 BB
Suspension Fork
Rockshox Recon Gold RL 29", Solo Air, 100mm Travel, 32mm Stanchions, w/ External Rebound Adjust, Low Speed Compression to Lockout
Drivetrain
Rear Derailleur
SRAM NX X-Horizon, 11 Speed
Shift Levers
SRAM NX 11 Speed X-Actuation Trigger
Cassette
SRAM PG1130, 11 Speed, 11-42T
Crank
SRAM NX 1x, w/ X-Sync 32T Chain Ring
Bottom Bracket
SRAM PF30
Chain
KMC X11EL, 11 Speed
Pedals
DB4L Alloy Platform w/ Replaceable Pins
Wheels
Front Hub
32h Alloy 15MM Thru-Axle w/ Center Lock Disc Mount
Rear Hub
32h Alloy, Boost 148x12mm Thru-axle, 5 Sealed Cartridge Bearing, Cassette w/ CNC Disc Mount
Rims
Diamondback Blanchard 25, Tubeless Ready, 32h
Spokes
14g Stainless Steel
Tires
WTB Nineline, DNA Compound, 60TPI, 29x2.25"
Brakes
Brakes
Shimano BR-M315 Hydraulic Disc, w/ 180mm Front /160mm Rear Rotors
Brake Levers
Shimano BR-M315 Hydraulic Lever w/ Reach Adjust
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
New DB "Flanged" Lock-on, 135mm Silcone
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Race M-Series Saddle
Seatpost
DB Alloy Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.511 mm | 1.445 mm | 1.421 mm | 1.408 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 631 mm | 660 mm | 682 mm | 701 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 82 mm | 81 mm | 81 mm | 81 mm |
| Stack | 600 mm | 610 mm | 624 mm | 638 mm |
| Reach | 397 mm | 422 mm | 439 mm | 453 mm |
| Top Tube Length | 580 mm | 609 mm | 630 mm | 648 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1058 mm | 1087 mm | 1109 mm | 1128 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 775 mm | 785 mm | 815 mm | 833 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Overdrive 29C 1 Carbon is part of the Diamondback Overdrive model. Diamondback launched 37 bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Diamondback Overdrive 29 1 2019 is the most economical model, with a starting price of 569$. Diamondback Overdrive 29C 1 Carbon 2019 on the other hand costs 1999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1999$. Comparing this to the average Crosscountry bike price, we see that the price is 4.93% higher.
Overdrive 29C 1 Carbon components
Fork
The RockShox Recon Gold RL is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Overdrive 29C 1 Carbon 2019 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Overdrive 29C 1 Carbon comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Overdrive 29C 1 Carbon comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
