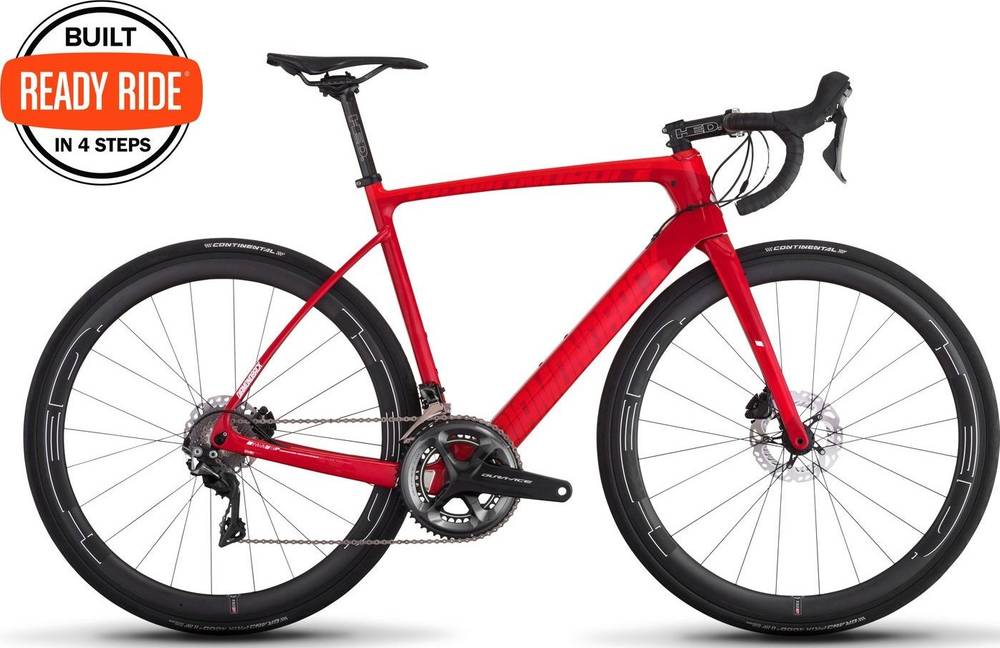

Diamondback Podium Equipe Dura-Ace Disc 2017
2017 Road
Estimate price |
4,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB AMMP+ Carbon Technology, Specific Modulous, Monocoque Competition Road Frame, UCI Certified, Di2/EPS Compatible Internal Cable Routing, Thru-axle Carbon Drop Outs, w/ Flat Mount Disc, Taper Headtube & Press-Fit 30 BB
Suspension Fork
DBR AmmP+ Carbon Competition Road Fork, Thru-axle Carbon Drop Outs, Flat Mount Disc Tabs w/ 1.5" Taper Carbon Steerer Tube, Continuous Fiber Technology (CFT)
Drivetrain
Rear Derailleur
Shimano Dura-Ace RD-9100, 11 Speed
Front Derailleur
Shimano Dura-Ace FD-9100, Braze-on
Shift Levers
Shimano Dura-Ace ST-9120, Dual Control, 2x11 Speed
Cassette
Shimano Dura-Ace CS-9100, 11 Speed Cassette, 11-28T
Crank
Shimano Dura-Ace FC-9100, 52/36T
Bottom Bracket
Praxis PF30-Shimano Conversion
Chain
Shimano HG9100, 11 Speed
Pedals
Wellgo Alloy Road
Wheels
Front Hub
HED Jet 4 Plus Disc, 18h
Rear Hub
HED Jet 4 Plus Disc, 24h, Cassette
Rims
HED Jet 4 Plus Disc, SCT, Clincher
Spokes
HED Stainless Steel
Tires
Continental Grand Prix, Folding, 700x25c
Brakes
Brakes
Shimano BR-R9170 Flat Mount Hydraulic Disc, w/ 160mm Front / 140mm Rear Rotors
Brake Levers
Shimano Dura-Ace ST-9120
Cockpit
Stem
HED Pro Tour, 7050 Alloy, +/-7° Rise, 31.8mm Bar Bore
Handlebar
HED Pro Tour, 6061-T6 Alloy, 80mm Reach, 135mm Drop, 31.8mm Bar Bore
Grips
EVA Cork w/ Gel
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Seat
Saddle
Prologo Zero-II, w/ Carbon Nack Rails
Seatpost
HED Pro Tour Carbon, Di2 Battery Compatible, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.46 mm | 1.45 mm | 1.49 mm |
| Bottom Bracket Height | 263 mm | 266 mm | 266 mm | 268 mm | 268 mm |
| Front Center | 574 mm | 580 mm | 589 mm | 602 mm | 613 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 57 mm | 57 mm | 59 mm | 59 mm |
| Stack | 544 mm | 557 mm | 572 mm | 584 mm | 608 mm |
| Reach | 381 mm | 385 mm | 392 mm | 403 mm | 407 mm |
| Top Tube Length | 535 mm | 550 mm | 565 mm | 580 mm | 595 mm |
| Seat Tube Angle | 74 ° | 73.3 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 72.3 ° | 72.8 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 135 mm | 150 mm | 165 mm | 180 mm | 205 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 973 mm | 980 mm | 989 mm | 1003 mm | 1014 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm |
| Standover Height | 760 mm | 771 mm | 791 mm | 807 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
Podium Equipe Dura-Ace Disc is part of the Diamondback Podium model. Diamondback released 13 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Diamondback Podium 24 2017 is the cheapest bike model and costs 319$. Diamondback Podium Equipe Dura-Ace Disc 2017 is the most expensive one and costs 4999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for General Road bikes
According to our calculations, the average cost of a General Road bike that is reliable is 1915$. However, this doesn’t mean that if you spend less money on a General Road bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Diamondback released this model in 2017, its price was 4999$. If we compare this with the average General Road bike cost we notice that the price is 161.04% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Podium Equipe Dura-Ace Disc are the 700c carbon type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
