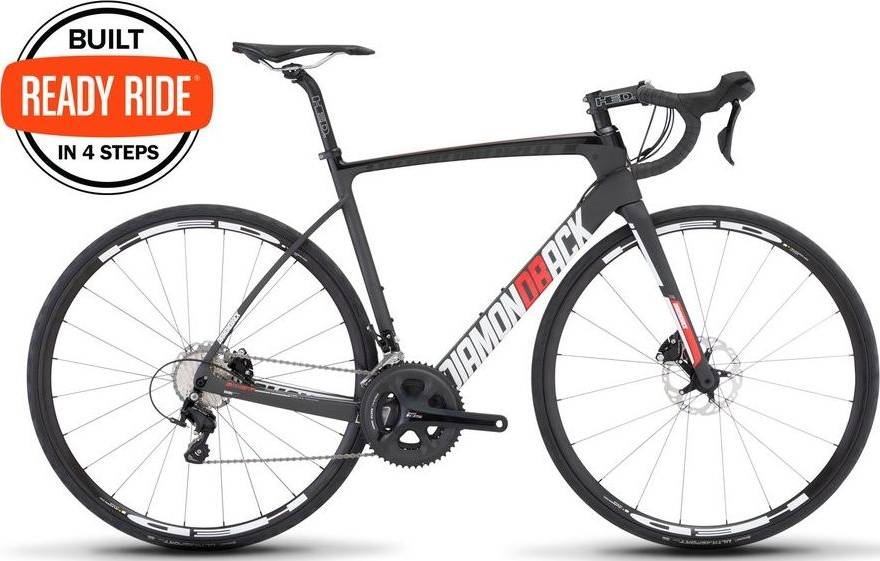

Diamondback Podium E’tape Disc 2017
2017 E-bike
Estimate price |
2,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB AMMP+ Carbon Technology, Specific Modulous, Monocoque Competition Road Frame, UCI Certified, Di2/EPS Compatible Internal Cable Routing, Thru-axle Carbon Drop Outs, w/ Flat Mount Disc, Taper Headtube & Press-Fit 30 BB
Suspension Fork
DBR AmmP+ Carbon Competition Road Fork, Thru-axle Carbon Drop Outs, Flat Mount Disc Tabs w/ 1.5" Taper Carbon Steerer Tube, Continuous Fiber Technology (CFT)
Drivetrain
Rear Derailleur
Shimano 105 RD-5800, 11 Speed
Front Derailleur
Shimano 105 FD-5800, Braze-on
Shift Levers
Shimano ST-RS505, Dual Control 2x11 Speed
Cassette
Shimano 105 CS-5800 Cassette, 11 Speed, 11-28T
Crank
Shimano 105 FC-5800, 52/36T
Bottom Bracket
Praxis PF30-Shimano Conversion
Chain
Shimano HG601, 11 Speed
Pedals
Wellgo Alloy Road
Wheels
Front Hub
20h Alloy, Sealed Cartridge, Center Lock, 12mm Thru-axle
Rear Hub
24h Alloy, Sealed Cartridge, Center Lock, 142x12mm Thru-axle, Cassette
Rims
HED Flanders C2+, 20h/24h
Spokes
14g Stainless Steel
Tires
Continental Ultra Sport II, Folding, 700x23c
Brakes
Brakes
Shimano BR-RS505 Flat Mount Hydraulic Disc, w/ 160mm Front / 140mm Rear Rotors
Brake Levers
Shimano ST-RS505
Cockpit
Stem
HED Pro Tour, 7050 Alloy, +/-7° Rise, 31.8mm Bar Bore
Handlebar
HED Pro Tour, 6061-T6 Alloy, 80mm Reach, 135mm Drop, 31.8mm Bar Bore
Grips
EVA Cork w/ Gel
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Seat
Saddle
Prologo Zero-II, w/ Cromoly Rails
Seatpost
HED Tour, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.46 mm | 1.45 mm | 1.49 mm |
| Bottom Bracket Height | 263 mm | 266 mm | 266 mm | 268 mm | 268 mm |
| Front Center | 574 mm | 580 mm | 589 mm | 602 mm | 613 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 57 mm | 57 mm | 59 mm | 59 mm |
| Stack | 544 mm | 557 mm | 572 mm | 584 mm | 608 mm |
| Reach | 381 mm | 385 mm | 392 mm | 403 mm | 407 mm |
| Top Tube Length | 535 mm | 550 mm | 565 mm | 580 mm | 595 mm |
| Seat Tube Angle | 74 ° | 73.3 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 72.3 ° | 72.8 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 135 mm | 150 mm | 165 mm | 180 mm | 205 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 973 mm | 980 mm | 989 mm | 1003 mm | 1014 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm |
| Standover Height | 760 mm | 771 mm | 791 mm | 807 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Podium E’tape Disc belongs to the Diamondback E Podium model. There are 2 e-bikes that carry this model name. You can easily view all of the Diamondback E Podium e-bikes models from 2017, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
General Road e-bikes average price
If you want an acceptable General Road e-bike you should know that the average price is 2631$. However, this doesn’t mean that if you spend less money on a General Road e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2299$. Comparing this to the average General Road e-bike price, we see that the price is 14.44% lower.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Podium E’tape Disc components
Fork material
The fork on this e-bike is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The Podium E’tape Disc 2017 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Podium E’tape Disc has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
