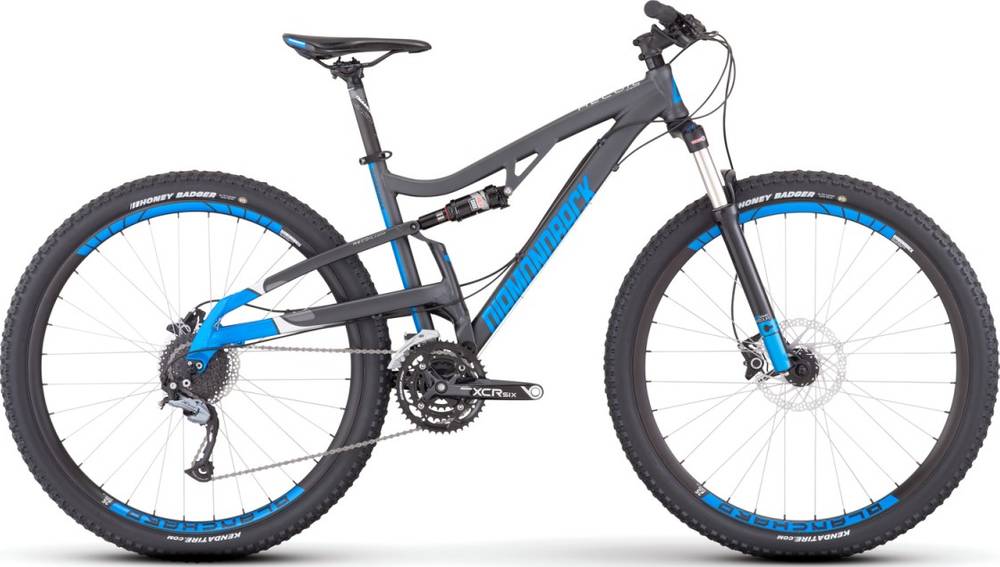

Diamondback Recoil Comp 29 2017
2017 Mountain
Estimate price |
999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork SunTour XCR
-
Groupset Acera, Altus -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Recoil 6061 T-6 Aluminum Trail w/ 4" travel, Optimized Single Pivot, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, w/ Replaceable Hanger
Suspension Fork
SR Suntour XCR-LO Coil 29", 100mm Travel, 32mm Stanchions, Magnesium Lower, Alloy Crown w/ Hydraulic Speed Lock
Rear Shock
RockShox Monarch R, Air Spring, 190x51mm w/ External Rebound Adjust
Drivetrain
Rear Derailleur
Shimano Acera M3000, 9 Speed
Front Derailleur
Shimano Altus M370, Top Swing, Dual Pull, 34.9mm Clamp Diameter
Shift Levers
Shimano Altus M370 3x9 Speed Rapidfire
Cassette
Shimano HG200, 9 Speed Cassette, 11-34T
Crank
SR Suntour XCR, 44/32/22T
Bottom Bracket
Sealed Cartridge
Chain
KMC Z99, 9 Speed
Pedals
DB4L Alloy Platform
Wheels
Front Hub
32h SL-7 Alloy w/ CNC Disc Mount
Rear Hub
32h SL-7 Alloy w/ CNC Disc Mount, Cassette
Rims
Diamondback Blanchard 25 Rim, 32H
Spokes
14g Stainless Steel
Tires
Kenda Honey Badger 29x 2.2"
Brakes
Brakes
Shimano BR-M355 Hydraulic Disc, w/ 180mm Front /160mm Rear Rotors
Brake Levers
Shimano BR-M355 Hydraulic Lever w/ Reach Adjust
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
DB SL318B, 685mm Wide, 15mm Rise, 31.8mm Bar Bore
Grips
DB4L 135mm Kraton
Headset
Zero Stack Ahead 1 1/8"
Seat
Saddle
DB Race saddle
Seatpost
DB Alloy Micro Adjust 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.425 mm | 1.41 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Front Center | 641 mm | 666 mm | 693 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 86 mm | 88 mm | 86 mm |
| Stack | 584 mm | 593 mm | 612 mm |
| Reach | 392 mm | 416 mm | 434 mm |
| Top Tube Length | 560 mm | 585 mm | 610 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 90 mm | 100 mm | 120 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1104 mm | 1129 mm | 1156 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm |
| Standover Height | 749 mm | 775 mm | 800 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Recoil Comp 29 is part of the Diamondback Recoil model. Diamondback launched 4 bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Diamondback Recoil 29 2017 is the cheapest bike model and costs 599$. Diamondback Recoil Comp 29 2017 is the most expensive one and costs 999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Diamondback released this model in 2017, its price was 999$. In conclusion, this bike price is 90.69% smaller than the price of the average Crosscountry bike.
Recoil Comp 29 components
Fork
This bike has the SunTour XCR fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Recoil Comp 29 has an aluminum fork, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
The Recoil Comp 29 has a rear shock with a travel of 100mm. The model RockShox Monarch R is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Recoil Comp 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamondback Recoil Comp 29 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
