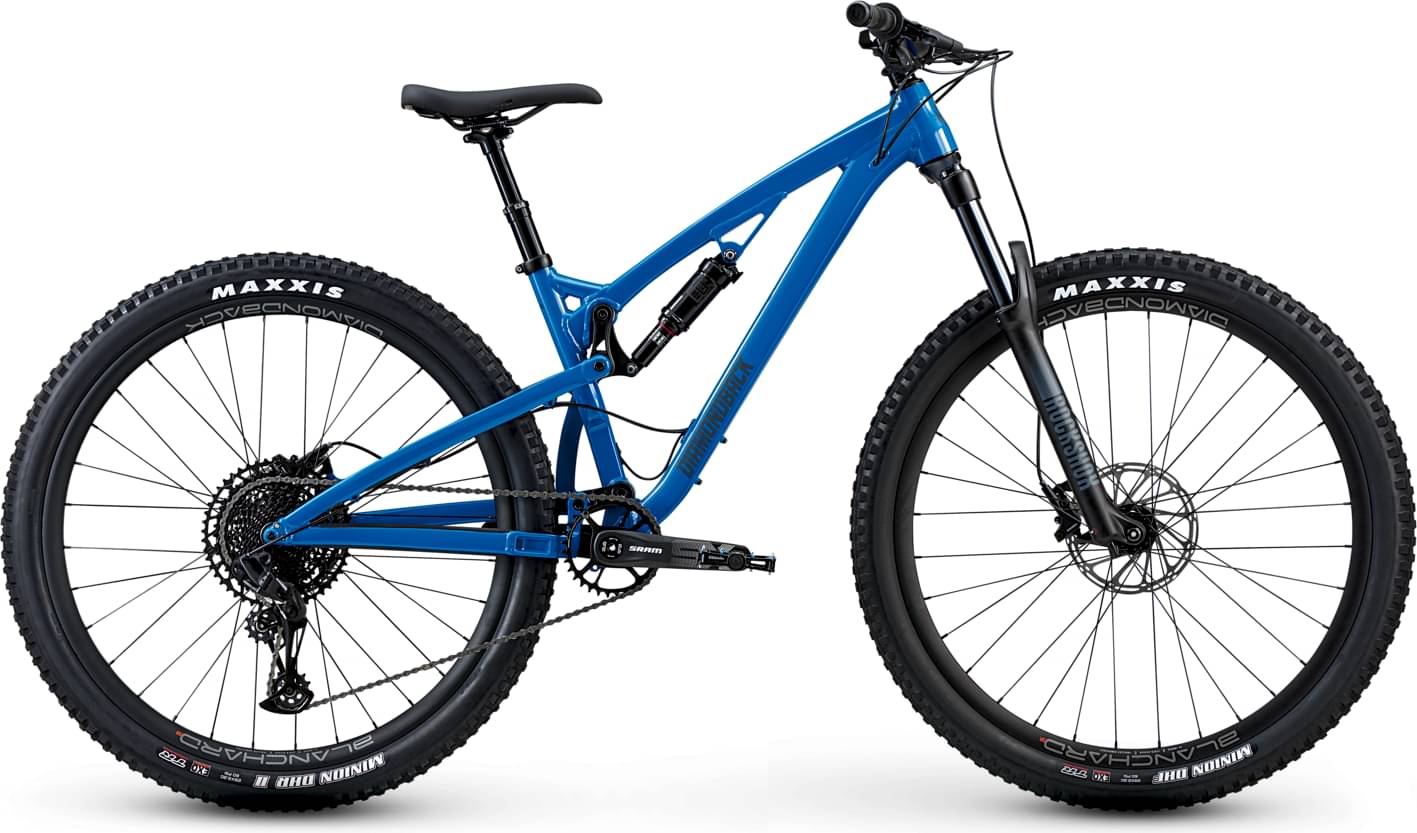

Diamondback Release 29 1 2023
2023 Mountain
Estimate price |
2,850$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Release 29, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube
Suspension Fork
RockShox 35 Silver, 140mm of Travel, TurnKey Lock-Out, 15x110mm,1.5" Tapered Steer
Rear Shock
RockShox Monarch R, 200x57mm
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12 Speed
Front Derailleur
N/A
Shift Levers
SRAM SX Eagle, 12 Speed
Cassette
SRAM PG1210, 12 Speed, 11-50T
Crank
SRAM SX w/Steel 32T Direct Mount
Bottom Bracket
SRAM DUB
Chain
SRAM SX Eagle, 12 Speed
Pedals
DB Aluminum Platform w/Replaceable Pins
Wheels
Front Hub
32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing
Rear Hub
32h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette
Rims
Diamondback Blanchard 28R, Taped for Tubeless, 32h
Spokes
14g Stainless Steel
Tires
Maxxis Minion DHF 29x2.3" EXO, TR (Tubeless Ready), Folding / Maxxis Minion DHR II 29x2.3" EXO, TR (Tubeless Ready), Folding
Brakes
Brakes
SRAM Level, 180mm Front / 180mm Rear
Brake Levers
SRAM Level
Cockpit
Stem
DB35 Aluminum 35mm Reach, 35mm Bar Bore
Handlebar
DB35 Aluminum 780mm Wide, 15mm Rise, 35mm Bar Bore
Grips
DB Lock-On Grip
Headset
FSA No. 57 Sealed Cartridge
Seat
Saddle
WTB Volt
Seatpost
Kind Shock EXA Form 900i, Internal Dropper, 31.6mm with Westy Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.41 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 689 mm | 714 mm | 740 mm | 766 mm |
| Rake | 47 mm | 47 mm | 48 mm | 47 mm |
| Trail | 103 mm | 103 mm | 102 mm | 103 mm |
| Stack | 593 mm | 593 mm | 602 mm | 611 mm |
| Reach | 396 mm | 421 mm | 443 mm | 466 mm |
| Top Tube Length | 579 mm | 604 mm | 629 mm | 654 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1128 mm | 1153 mm | 1179 mm | 1205 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 769 mm | 778 mm | 785 mm | 798 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Release 29 1 belongs to the Diamondback Release model. Diamondback released 37 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Diamondback Release 29 1 2023 is the cheapest bike model and costs 2850$. Diamondback Release 5C 2023 is the most expensive one and costs 5850$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Diamondback released this model in 2023, its price was 2850$. Comparing the average cost of a Trail bike to this one, you will see that Release 29 1 price is 3.19% higher.
Release 29 1 components
Fork
Diamondback Release 29 1 2023 bike is equipped with the RockShox 35 Silver fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the RockShox Monarch R model, with a travel of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Release 29 1 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamondback Release 29 1 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Release 29 1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Diamondback Release 29 1 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
