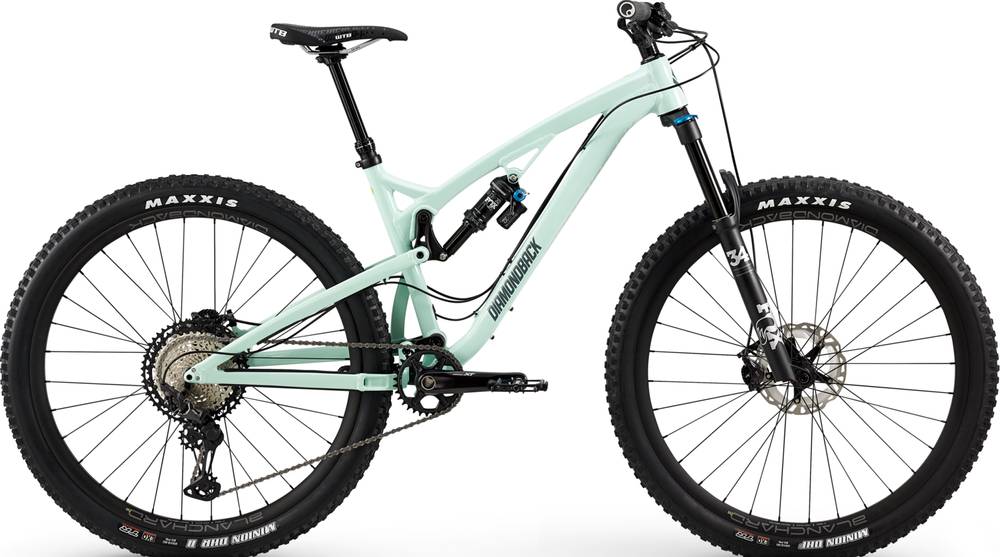

Diamondback Release 29 3 2021
2021 Mountain
Estimate price |
4,050$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Release 29, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube
Suspension Fork
Fox 34 Performance Float, 29", 140mm Travel, Grip 3 Position Dampener, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle
Rear Shock
Fox Performance Float DPX2, 3 Position Lever, LV EVOL, 200x57mm, 22.2mm Eyelet Width
Drivetrain
Rear Derailleur
Shimano XT M8100 Shadow Plus, 12 Speed SGS
Shift Levers
Shimano XT M8100, 12 Speed
Cassette
Shimano XT M8100 Cassette, 12 Speed, 10-51T
Crank
Shimano XT M8100, 32T
Bottom Bracket
Shimano BB-52
Chain
Shimano XT M8100, 12 Speed
Pedals
DB CNC Platform, Sealed Cartidge Bearing w/ Replaceable Pins
Wheels
Front Hub
32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing
Rear Hub
32h Aluminum Boost 148x12mm Thru-axle, 5 Sealed Cartridge Bearing, Cassette
Rims
Diamondback Blanchard 28R, Tubeless ready, 32h
Spokes
2.0/1.8/2.0 Double Butted Stainless Steel
Tires
Maxxis Minion DHF 29x2.3" EXO, TLR, Folding / Maxxis Minion DHR 29x2.3" EXO, TLR, Folding
Brakes
Brakes
Shimano XT M8100, w/180mm Front /180mm Rear, RT800 Rotors
Brake Levers
Shimano XT M8100
Cockpit
Stem
DB35 Aluminum 35mm Reach, 35mm Bar Bore
Handlebar
DB35 Aluminum 760mm Wide, 15mm Rise, 35mm Bar Bore
Grips
Ergon GE10 Evo Lock-On
Headset
FSA No. 57 Sealed Cartridge
Seat
Saddle
WTB Koda Race
Seatpost
KS LEV Integra, Internal Dropper, 31.6mm w/Southpaw Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.41 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 689 mm | 714 mm | 740 mm | 766 mm |
| Rake | 47 mm | 47 mm | 48 mm | 47 mm |
| Trail | 103 mm | 103 mm | 102 mm | 103 mm |
| Stack | 593 mm | 593 mm | 602 mm | 611 mm |
| Reach | 396 mm | 421 mm | 443 mm | 466 mm |
| Top Tube Length | 579 mm | 604 mm | 629 mm | 654 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1128 mm | 1153 mm | 1179 mm | 1205 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 769 mm | 778 mm | 785 mm | 798 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Release 29 3 is a Diamondback Release model. 37 bikes variations carry this model name so far. Take a sneak peek at all Diamondback Release bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Diamondback Release 29 1 2021 has a starting price of 2550$. Diamondback Release 5C 2021 on the other hand is the most expensive at 5200$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 4050$. Comparing the average cost of a Trail bike to this one, you will see that Release 29 3 price is 46.63% higher.
Release 29 3 components
Fork
The fork installed on this bike is the Fox Performance Float 34 model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Diamondback Release 29 3 bike has the Fox Performance Float DPX2 model installed, and has a travel of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Diamondback Release 29 3 2021, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Release 29 3 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Diamondback Release 29 3 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
