Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Performance Elite Float 36
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Release 27.5, Monocoque Carbon Front and Rear Triangle, 130mm Travel, Level Link Suspension Platform, Euro Standard Threaded BB, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs
Suspension Fork
Fox 36 Performance Elite Float, 27.5", 150mm Travel, Fit4, 3 Position Damper, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle
Rear Shock
Fox Performance Elite Float DPX2, 3 Position Lever w/Open Mode Adjust, LV EVOL, 200x57mm, 22.2mm Eyelet Width
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12 Speed
Front Derailleur
MRP XCG V2 Aluminum Bash Guard, 32T, ISCG-05
Shift Levers
SRAM GX Eagle, 12 Speed
Cassette
SRAM XG-1275 Eagle, 12 Speed, 10-50T
Crank
SRAM Descendant 7K Eagle w/32T Direct Mount
Bottom Bracket
SRAM DUB Outboard Bearing
Chain
SRAM GX Eagle, 12 Speed
Pedals
DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins
Wheels
Front Hub
Novatec XD641, 28h Aluminum110x15mm Boost Thru-axle, Sealed Cartridge Bearing
Rear Hub
Novatec XD642, 28h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, w/CNC Disc Mount, XD Cassette Body
Rims
e*thirteen LG1 EN Plus, w/TRS Plus Aluminum 27.5", 30mm internal width, 28h
Spokes
2.0/1.8/2.0 Butted Stainless Steel
Tires
e*thirteen TRS Race SS 2.35 Tire Tubeless Ready Single Ply Apex Aramid Reinforced, Slow Rebound, Dual Compound
Brakes
Brakes
SRAM G2 RS, 4 Piston, Hydraulic Disc, w/180mm Front / 180mm Rear Centerline Rotors
Brake Levers
SRAM G2 RS
Cockpit
Stem
Race Face Æffect R 35, 40mm Reach, 35mm Bar Bore
Handlebar
Race Face Turbine R, 780mm Wide, 20mm Rise, 35mm Bar Bore
Grips
Ergon GE10 Evo Lock-On
Headset
FSA No. 57 Sealed Cartridge
Seat
Saddle
WTB Volt Chromoly SL
Seatpost
KS LEV Integra Internal Dropper, w/SouthPaw Remote, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.4 mm | 1.34 mm | 1.3 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 708 mm | 735 mm | 761 mm | 788 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 111 mm | 110 mm | 109 mm |
| Stack | 578 mm | 591 mm | 597 mm | 606 mm |
| Reach | 400 mm | 423 mm | 445 mm | 467 mm |
| Top Tube Length | 579 mm | 604 mm | 629 mm | 654 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1127 mm | 1154 mm | 1180 mm | 1207 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Standover Height | 733 mm | 734 mm | 737 mm | 743 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

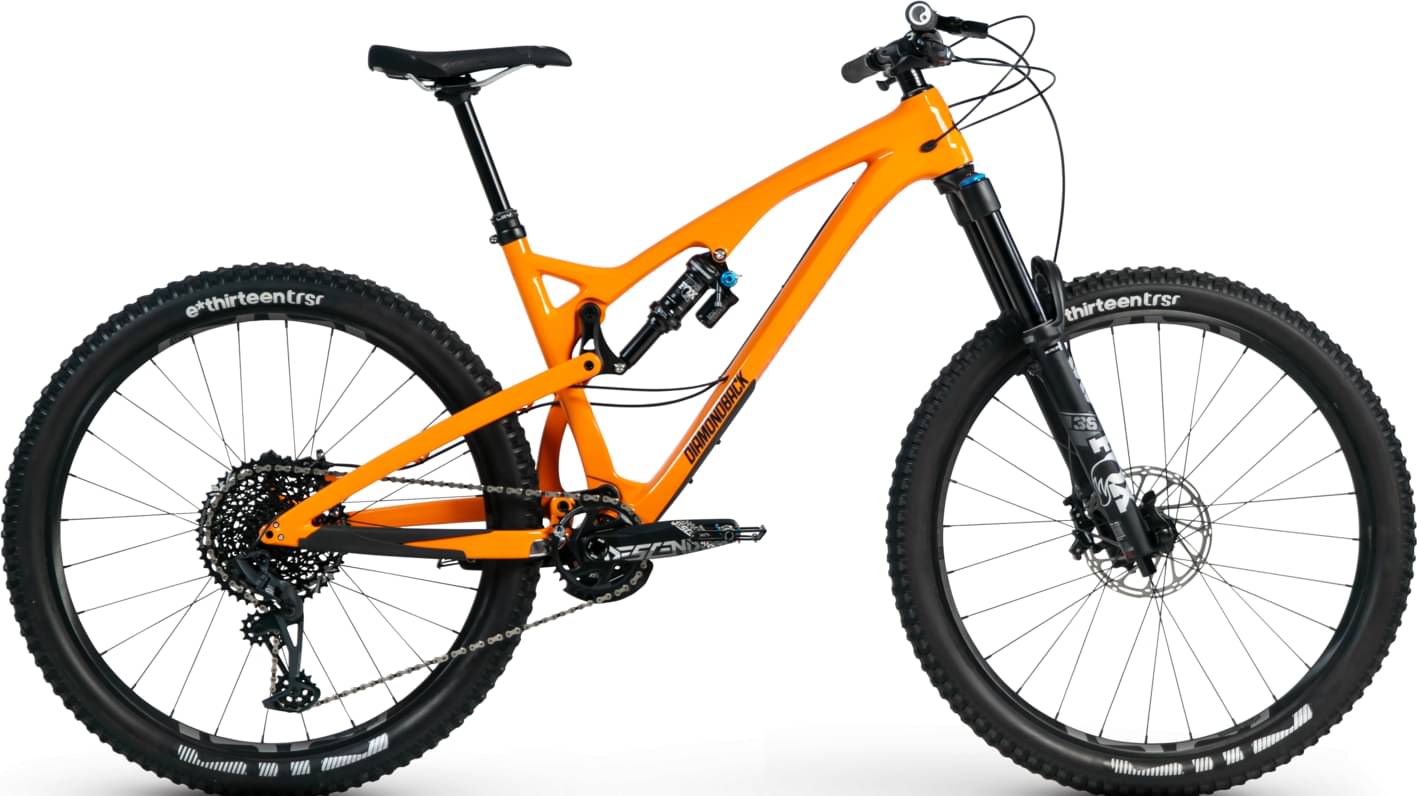

Model Overview
Release 5C belongs to the Diamondback Release model. 37 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Diamondback Release 29 1 2022 is the cheapest bike model and costs 2550$. Diamondback Release 5C 2022 is the most expensive one and costs 5200$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Diamondback released this model in 2022, its price was 5200$. Doing a quick comparison, we notice that Release 5C price is 88.27% more expensive than the average cost of a Trail bike.
Overview of components
Fork
This bike has the Fox Performance Elite Float 36 fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is Fox Performance Elite Float DPX2, with a travel distance of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Diamondback Release 5C 2022, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Release 5C has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Diamondback Release 5C bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Diamondback Release 5C comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
