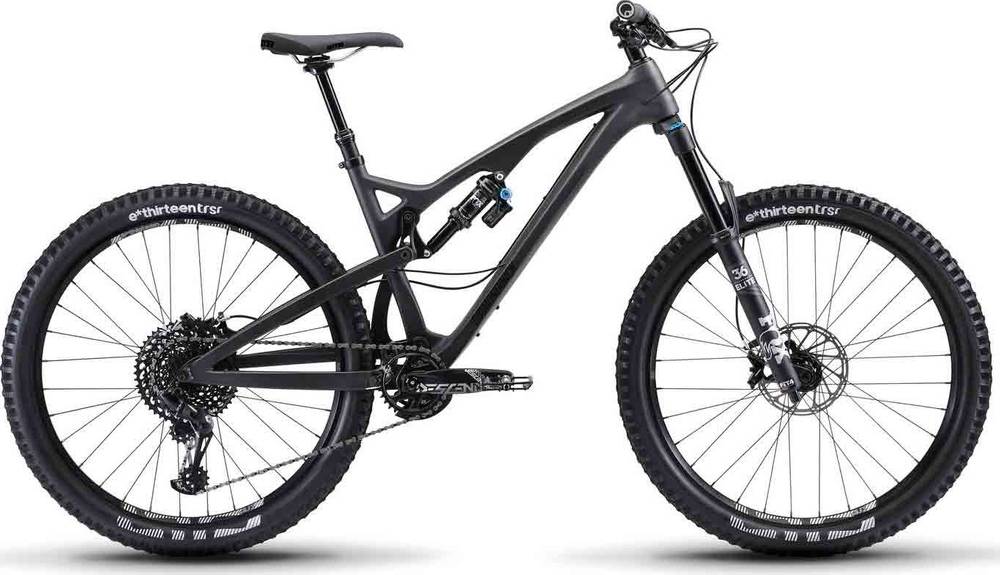

Diamondback Release 5C Carbon 2019
2019 Mountain
Estimate price |
4,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Performance Elite Float 36
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Release 27.5, Monocoque Carbon Front and Rear Triangle, 130mm Travel, Level Link Suspension Platform, Euro Standard Threaded BB, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs
Suspension Fork
Fox 36 Performance Elite Float, 27.5", 150mm Travel, Fit4, 3 Position Dampener, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle
Rear Shock
Fox Performance Elite Float DPX2, 3 Position Lever w/Open Mode Adjust, LV EVOL, 200x57mm, 22.2mm Eyelet Width
Drivetrain
Rear Derailleur
SRAM GXEagle, 12 Speed
Front Derailleur
MRP XCG V2 Alloy Bash Guard, 32T, ISCG-05
Shift Levers
SRAM GXEagle, 12 Speed
Cassette
SRAM XG-1275 Eagle, 12 Speed, 10-50T
Crank
SRAM Descendant 7K Eagle w/32T Direct Mount
Bottom Bracket
SRAM DUB Outboard Bearing
Chain
SRAM GX Eagle, 12 Speed
Pedals
DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins
Wheels
Rims
e*thirteen TRS Plus 30mm Aluminum Rim TRS Plus Aluminum 32h
Spokes
2.0/1.8/2.0 Butted Stainless Steel
Tires
e*thirteen TRS Race SS 2.35 Tire Tubeless Ready Single Ply Apex Aramid Reinforced, Slow Rebound, Dual Compound
Brakes
Brakes
SRAM Guide RS Hydraulic Disc, w/180mm Front / 180mm Rear Centerline Rotors
Brake Levers
SRAM Guide RS
Cockpit
Stem
Raceface Æffect R 35, 40mm Reach, 35mm Bar Bore
Handlebar
Raceface Turbine R, 780mm Wide, 20mm Rise, 35mm Bar Bore
Grips
Ergon GE10 Evo Lock-On
Headset
FSA No. 57 Sealed Cartridge
Seat
Saddle
WTB Volt Pro
Seatpost
KS LEV Integra Internal Dropper, w/SouthPaw Remote, 31.6mm, XS/SM = 125mm, MD/LG/XL = 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.4 mm | 1.34 mm | 1.3 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 708 mm | 735 mm | 761 mm | 788 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 111 mm | 110 mm | 109 mm |
| Stack | 578 mm | 591 mm | 597 mm | 606 mm |
| Reach | 400 mm | 423 mm | 445 mm | 467 mm |
| Top Tube Length | 579 mm | 604 mm | 629 mm | 654 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1127 mm | 1154 mm | 1180 mm | 1207 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Standover Height | 733 mm | 734 mm | 737 mm | 743 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Release 5C Carbon belongs to the Diamondback Release model. 37 bikes variations carry this model name so far. You can easily view all of the Diamondback Release bikes models from 2019, here.
Model range prices
Diamondback Release 1 2019 is the cheapest bike model and costs 2299$. Diamondback Release 5C Carbon 2019 is the most expensive one and costs 4799$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 4799$. Doing a quick comparison, we notice that Release 5C Carbon price is 73.75% more expensive than the average cost of a Trail bike.
Overview of components
Fork
Diamondback Release 5C Carbon 2019 bike is equipped with the Fox Performance Elite Float 36 fork, and has 150mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Release 5C Carbon has a rear shock with a travel of 130mm. The model Fox Performance Elite Float DPX2 is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on Release 5C Carbon are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Release 5C Carbon has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Release 5C Carbon. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
