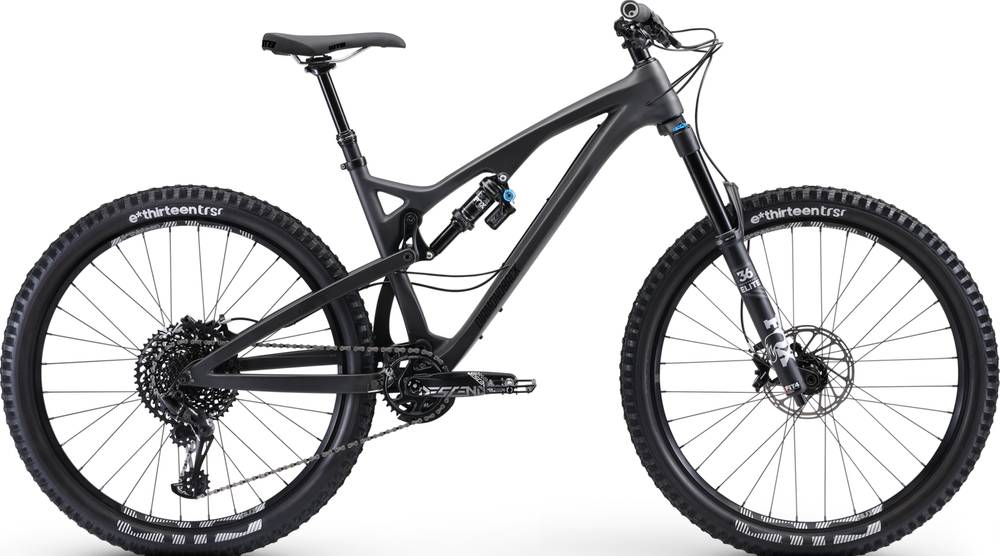

Diamondback Release 5C Carbon 2020
2020 Mountain
Estimate price |
5,000$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Performance Elite Float 36
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Release 27.5, Monocoque Carbon Front and Rear Triangle, 130mm Travel, Level Link Suspension Platform, Euro Standard Threaded BB, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs
Suspension Fork
Fox 36 Performance Elite Float, 27.5", 150mm Travel, Fit4, 3 Position Dampener, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle
Rear Shock
Fox Performance Elite Float DPX2, 3 Position Lever w/Open Mode Adjust, LV EVOL, 200x57mm, 22.2mm Eyelet Width
Drivetrain
Rear Derailleur
SRAM GXEagle, 12 Speed
Front Derailleur
MRP XCG V2 Alloy Bash Guard, 32T, ISCG-05
Shift Levers
SRAM GXEagle, 12 Speed
Cassette
SRAM XG-1275 Eagle, 12 Speed, 10-50T
Crank
SRAM Descendant 7K Eagle w/32T Direct Mount
Bottom Bracket
SRAM DUB Outboard Bearing
Chain
SRAM GX Eagle, 12 Speed
Pedals
DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins
Wheels
Front Hub
Novatec XD641, 32h Alloy,110x15mm Boost Thru-axle, Sealed Cartridge Bearing
Rear Hub
Novatec XD642, 32h Alloy, Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, w/CNC Disc Mount, XD Cassette Body
Rims
e*thirteen TRS Plus 30mm Aluminum Rim TRS Plus Aluminum 32h
Spokes
2.0/1.8/2.0 Butted Stainless Steel
Tires
e*thirteen TRS Race SS 27.5 x 2.35 Tire Tubeless Ready Single Ply Apex Aramid Reinforced, Slow Rebound, Dual Compound
Brakes
Brakes
SRAM Guide RS Hydraulic Disc, w/180mm Front / 180mm Rear Centerline Rotors
Brake Levers
SRAM Guide RS
Cockpit
Stem
Raceface Æffect R 35, 40mm Reach, 35mm Bar Bore
Handlebar
Raceface Turbine R, 780mm Wide, 20mm Rise, 35mm Bar Bore
Grips
Ergon GE10 Evo Lock-On
Headset
FSA No. 57 Sealed Cartridge
Seat
Saddle
WTB Volt Pro
Seatpost
KS LEV Integra Internal Dropper, w/SouthPaw Remote, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.4 mm | 1.34 mm | 1.3 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 708 mm | 735 mm | 761 mm | 788 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 111 mm | 110 mm | 109 mm |
| Stack | 578 mm | 591 mm | 597 mm | 606 mm |
| Reach | 400 mm | 423 mm | 445 mm | 467 mm |
| Top Tube Length | 579 mm | 604 mm | 629 mm | 654 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1127 mm | 1154 mm | 1180 mm | 1207 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Standover Height | 733 mm | 734 mm | 737 mm | 743 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Release 5C Carbon is part of the Diamondback Release model. 37 bikes variations carry this model name so far. Take a sneak peek at all Diamondback Release bikes models from 2020, by clicking here.
Model range prices
Diamondback Release 1 2020 is the most affordable bike of this model and has a price of 2500$. On the other hand, Diamondback Release 5C Carbon 2020, is the most expensive and costs 5000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Diamondback released this model in 2020, its price was 5000$. Doing a quick comparison, we notice that Release 5C Carbon price is 81.03% higher than the average cost of a Trail bike.
Overview of components
Fork
Diamondback Release 5C Carbon 2020 bike is equipped with the Fox Performance Elite Float 36 fork, and has 150mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Diamondback Release 5C Carbon bike has the Fox Performance Elite Float DPX2 model installed, and has a travel of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The Release 5C Carbon 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Release 5C Carbon has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Release 5C Carbon comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Diamondback model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
