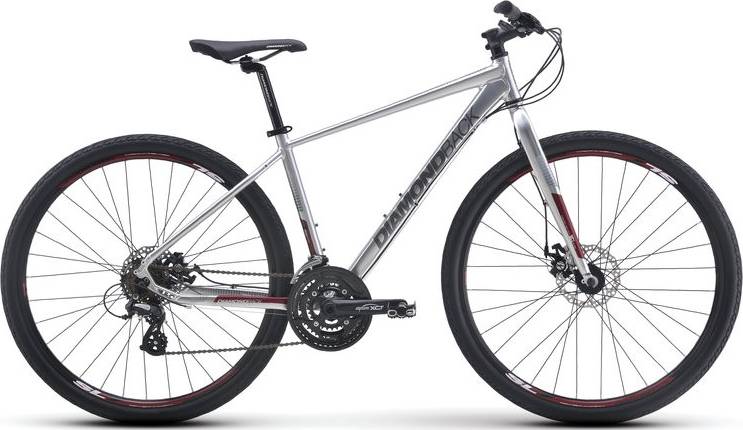

Diamondback Trace 2017
2017 Urban
Estimate price |
499$
Weight | 13.05 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trace 6061-T6 Butted Aluminum Dual Sport Frame w/ Formed Top and Down Tube, Forged Drop Outs, w/ Integrated Chainstay Disc Mount
Suspension Fork
SR Suntour M3030, 700c, 75mm Travel, 28mm Stanchion, Alloy Lower, Alloy Crown, Coil Spring
Drivetrain
Rear Derailleur
Shimano Altus 7 Speed
Front Derailleur
Shimano Tourney TY510, Top Swing, Dual Pull, 31.8mm Clamp Diameter
Shift Levers
Shimano EF-51 Easyfire, 3x7 Speed
Cassette
Shimano HG-20, 7 Speed, 12-32T
Crank
SR Suntour XCT w/ Chainguard, 48/38/28T
Bottom Bracket
Sealed Cartridge
Chain
KMC-Z51, 7 Speed
Pedals
Wellgo Alloy forged, CNC MTB
Wheels
Front Hub
32h SL-7 Alloy w/ CNC Disc Mount
Rear Hub
32h SL-7 Alloy Cassette w/ CNC Disc mount
Rims
32h Diamondback SL-7 Doublewall
Spokes
14g Stainless Steel
Tires
Kenda Bitumen, 700x45c
Brakes
Brakes
Tektro Aries Disc w/ 160mm Rotors
Brake Levers
Shimano EF-51
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
DB Laser Series, Low rise, 660mm Wide, 31.8mm Bar Bore
Grips
Diamondback Dual Density Comfort Grip
Headset
Ahead 1 1/8"
Seat
Saddle
DB Dual Sport Series
Seatpost
DB Laser Micro Adjust 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.549 mm | 1.491 mm | 1.539 mm | 1.537 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 611 mm | 626 mm | 641 mm | 657 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 73 mm | 73 mm | 69 mm | 72 mm |
| Stack | 604 mm | 604 mm | 628 mm | 647 mm |
| Reach | 390 mm | 405 mm | 408 mm | 421 mm |
| Top Tube Length | 575 mm | 590 mm | 605 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 105 mm | 105 mm | 130 mm | 150 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1060 mm | 1075 mm | 1090 mm | 1106 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 757 mm | 789 mm | 831 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Trace completes the Diamondback Trace model. Diamondback launched 5 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Diamondback released this model in 2017, its price was 499$. In conclusion, this bike price is 12.63% smaller than the price of the average Hybrid bike.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Trace weighs 13.05 kg (28.77 lbs) and is a bit lighter than the average. In other words, this model is 6.13% lighter than the average Hybrid bike.
Trace components
Fork
The Trace comes factory-installed with the SunTour fork. This has a travel range of 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The wheels on Trace are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trace has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
