Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 110mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Yowie Alloy 29" Frame, 110mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube
Suspension Fork
Fox 34 Performance Float, 29", 130mm Travel, Grip 3 Position Dampener, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle
Rear Shock
Fox DPS Performance Elite Float LV Evol
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12 Speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12 Speed
Cassette
SRAM XG Eagle, 10-50T
Crank
SRAM Stylo 7K, 32T
Bottom Bracket
SRAM DUB
Chain
SRAM NX Eagle W/PowerLock
Pedals
DB Aluminum Platform w/Replaceable Pins
Wheels
Front Hub
32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing
Rear Hub
32h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, XD Cassette
Rims
Diamondback Blanchard 28R, Taped for Tubeless, 32h
Spokes
Stainless Steel
Tires
Maxxis Rekon 29x2.4" Front / Rekon Race 29x2.25" Rear, both Tubeless Ready
Brakes
Brakes
Shimano SLX M7100
Brake Levers
Shimano SLX
Cockpit
Stem
DB35 Aluminum 35mm Reach, 35mm Bar Bore
Handlebar
DB35 Aluminum 780mm Wide, 20mm Rise, 35mm Bar Bore
Grips
Ergon GE10 Evo Lock-On
Headset
FSA No. 57 Sealed Cartridge
Seat
Saddle
WTB Koda Race
Seatpost
KS Rage-I, Internal Dropper, 31.6 w/Westy 1x Remote, Travel XS - 75MM, S - 100MM, MED - 150MM, L - 150MM, XL - 170MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.362 mm | 1.323 mm | 1.288 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 720 mm | 744 mm | 767 mm | 791 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 109 mm | 110 mm | 110 mm |
| Stack | 604 mm | 613 mm | 622 mm | 631 mm |
| Reach | 430 mm | 450 mm | 470 mm | 490 mm |
| Top Tube Length | 592 mm | 617 mm | 637 mm | 660 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 383 mm | 410 mm | 460 mm | 485 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1152 mm | 1176 mm | 1199 mm | 1223 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 730 mm | 730 mm | 738 mm | 740 mm |
| Front Travel | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

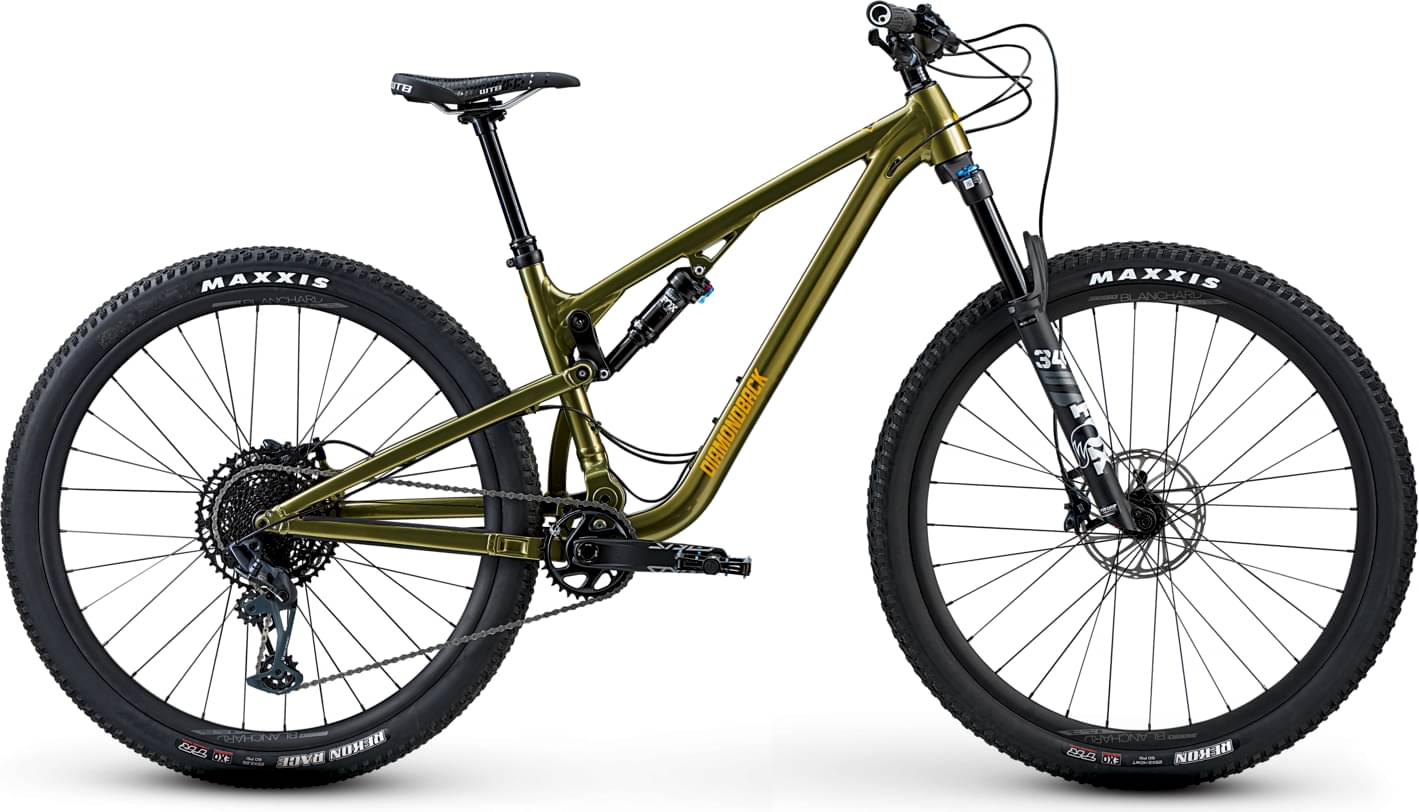

Yowie 3 is a Diamondback Yowie model. There are 5 bikes that carry this model name. Take a sneak peek at all Diamondback Yowie bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Diamondback Yowie 1 2023 has a starting price of 3100$. Diamondback Yowie 5C 2023 on the other hand is the most expensive at 5550$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 4150$. If we compare this with the average Crosscountry bike cost we notice that the price is 117.85% more expensive.
Yowie 3 components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox DPS Performance Elite Float LV Evol rear shock model, which has a travel of 110mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Yowie 3 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Yowie 3 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Diamondback Yowie 3 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
