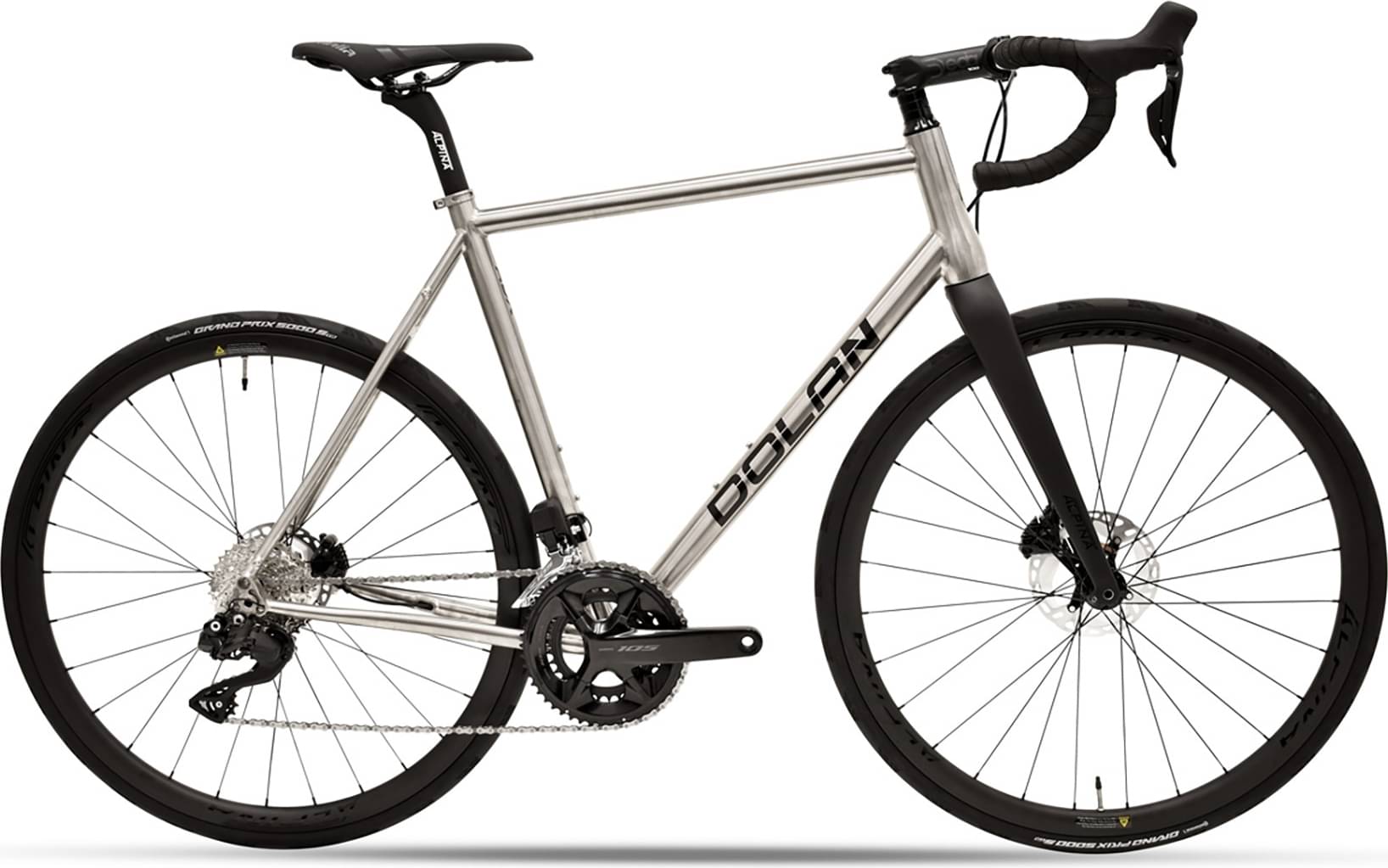

dolan ADX Titanium Disc Road Bike – Shimano-12s-105 R7170 Di2 2022
2022 Road
Estimate price |
4,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ADX Titanium Disc Frame
Suspension Fork
Alpina ADX Carbon Disc Fork
Drivetrain
Rear Derailleur
105 R7150 Di2 12s Rear Derailleur
Front Derailleur
105 R7150 Di2 Brazed-On 12s Front Derailleur
Cassette
Shimano 105 R7100 12Spd Cassette - 11/34
Crank
105-R7100 12s Chainset - 170mm 50/34T
Chain
Shimano CN-M6100 114 LINKS 12SPD Quick-Link Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Aksium Disc Wheelset
Tires
Continental Ultra Sport III Rigid Clincher 700x28c Tyre
Brakes
Brakes
Shimano 105 BR-R7170F / BR-R7170R Front/Rear Disc Brake Calipers
Cockpit
Stem
Deda Zero (7cm) Stem
Handlebar
Deda Zero RHM Black on Black (Alloy) Handlebars (42cm - Outside-Outside)
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Alpina 31.6mm Matt Inline Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50.5cm | 52.5cm | 54.5cm | 56.5cm | 58.5cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.53 mm | 1.53 mm | 1.55 mm | 1.59 mm |
| Stack | 553.1 mm | 571.7 mm | 588.9 mm | 600.3 mm | 626.1 mm |
| Reach | 376 mm | 373.7 mm | 384 mm | 387.8 mm | 393.2 mm |
| Top Tube Length | 534 mm | 542 mm | 552 mm | 570 mm | 583 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 505 mm | 525 mm | 545 mm | 565 mm | 585 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73 ° | 73.5 ° | 74 ° |
| Head Tube Length | 135 mm | 152 mm | 170 mm | 180 mm | 205 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
ADX Titanium Disc Road Bike – Shimano-12s-105 R7170 Di2 completes the Dolan Adx model. 25 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Dolan ADX Titanium Road Bike – Campag Centaur 2022 is the most affordable bike of this model and has a price of 2188$. On the other hand, Dolan ADX Titanium Disc Road Bike – Shimano Dura-Ace R9270 Di2 12SPD 2022, is the most expensive and costs 7845$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 3770$. In conclusion, this bike price is 60.7% higher than the price of the average Endurance bike.
ADX Titanium Disc Road Bike – Shimano-12s-105 R7170 Di2 components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on ADX Titanium Disc Road Bike – Shimano-12s-105 R7170 Di2 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Dolan ADX Titanium Disc Road Bike – Shimano-12s-105 R7170 Di2 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
