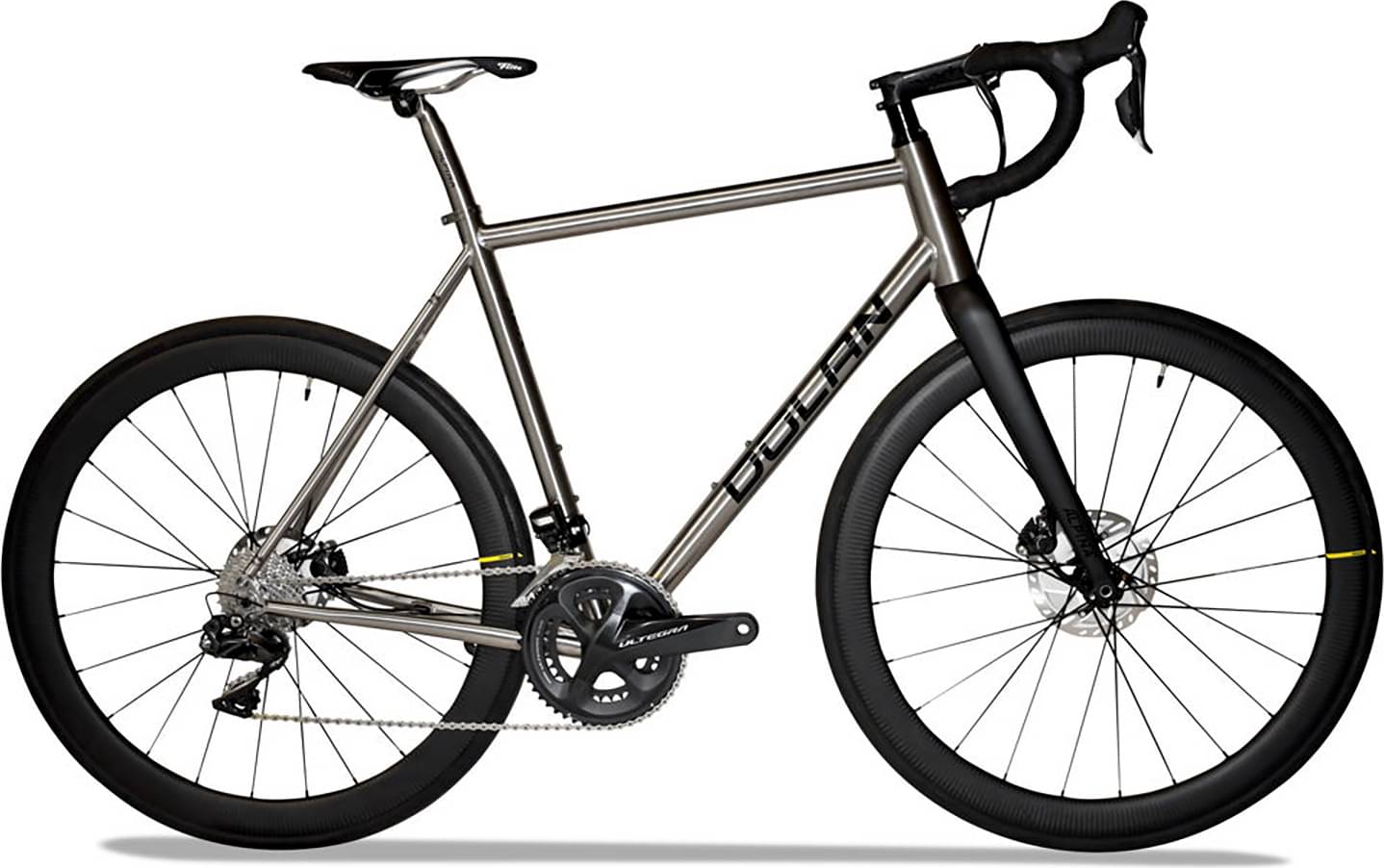

dolan ADX Titanium Disc Road Bike – Shimano Ultegra R8020 2023
2023 Road
Estimate price |
3,792$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
157cm - 165cm
SM
167cm - 170cm
MD
172cm - 175cm
LG
177cm - 180cm
XL
182cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ADX Titanium Disc Frame
Suspension Fork
Alpina Carbon Disc Fork
Drivetrain
Rear Derailleur
Ultegra RD-R8000 11-SPD - 34T - Rear Derailleur
Front Derailleur
Ultegra FD-R8000 11-SPD Brazed-On - Front Derailleur
Shift Levers
Shimano Ultegra ST-R8020-Shift-Levers
Cassette
Ultegra R8000 11 Speed Cassette - 11/28
Crank
Ultegra R8000 Chainset - 170mm-50/34
Chain
KMC X11 11spd Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Aksium Disc Wheelset
Tires
Vittoria Zaffiro V Rigid BLK Tyre (25-622-700x25c)
Brakes
Brakes
Shimano Ultegra BR-R8070-Brake-Calipers
Cockpit
Stem
Deda Zero (7cm) Stem
Handlebar
Deda Zero RHM Black on Black (Alloy) Handlebars (42cm - Outside-Outside)
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Alpina 31.6mm Matt Inline Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.53 mm | 1.53 mm | 1.55 mm | 1.59 mm |
| Stack | 553.1 mm | 571.7 mm | 588.9 mm | 600.3 mm | 626.1 mm |
| Reach | 376 mm | 373.7 mm | 384 mm | 387.8 mm | 393.2 mm |
| Top Tube Length | 534 mm | 542 mm | 552 mm | 570 mm | 583 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 505 mm | 525 mm | 545 mm | 565 mm | 585 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73 ° | 73.5 ° | 74 ° |
| Head Tube Length | 135 mm | 152 mm | 170 mm | 180 mm | 205 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 167 cm | 172 cm | 177 cm | 182 cm |
| Rider Max Height | 165 cm | 170 cm | 175 cm | 180 cm | 190 cm |
About this model
ADX Titanium Disc Road Bike – Shimano Ultegra R8020 is part of the Dolan Adx model. Dolan released 25 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Dolan ADX Titanium Road Bike – Campag Centaur 2023 has a starting price of 2188$. Dolan ADX Titanium Disc Road Bike – Shimano Dura-Ace R9270 Di2 12SPD 2023 on the other hand is the most expensive at 7845$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Dolan ADX Titanium Disc Road Bike – Shimano Ultegra R8020 price was 3405$. Comparing the average cost of an Endurance bike to this one, you will see that ADX Titanium Disc Road Bike – Shimano Ultegra R8020 price is 45.14% more expensive.
ADX Titanium Disc Road Bike – Shimano Ultegra R8020 components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The ADX Titanium Disc Road Bike – Shimano Ultegra R8020 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 157 cm – 190 cm (5.15 ft – 6.23 ft). In conclusion, it won’t take much to find one that’s right for you.
