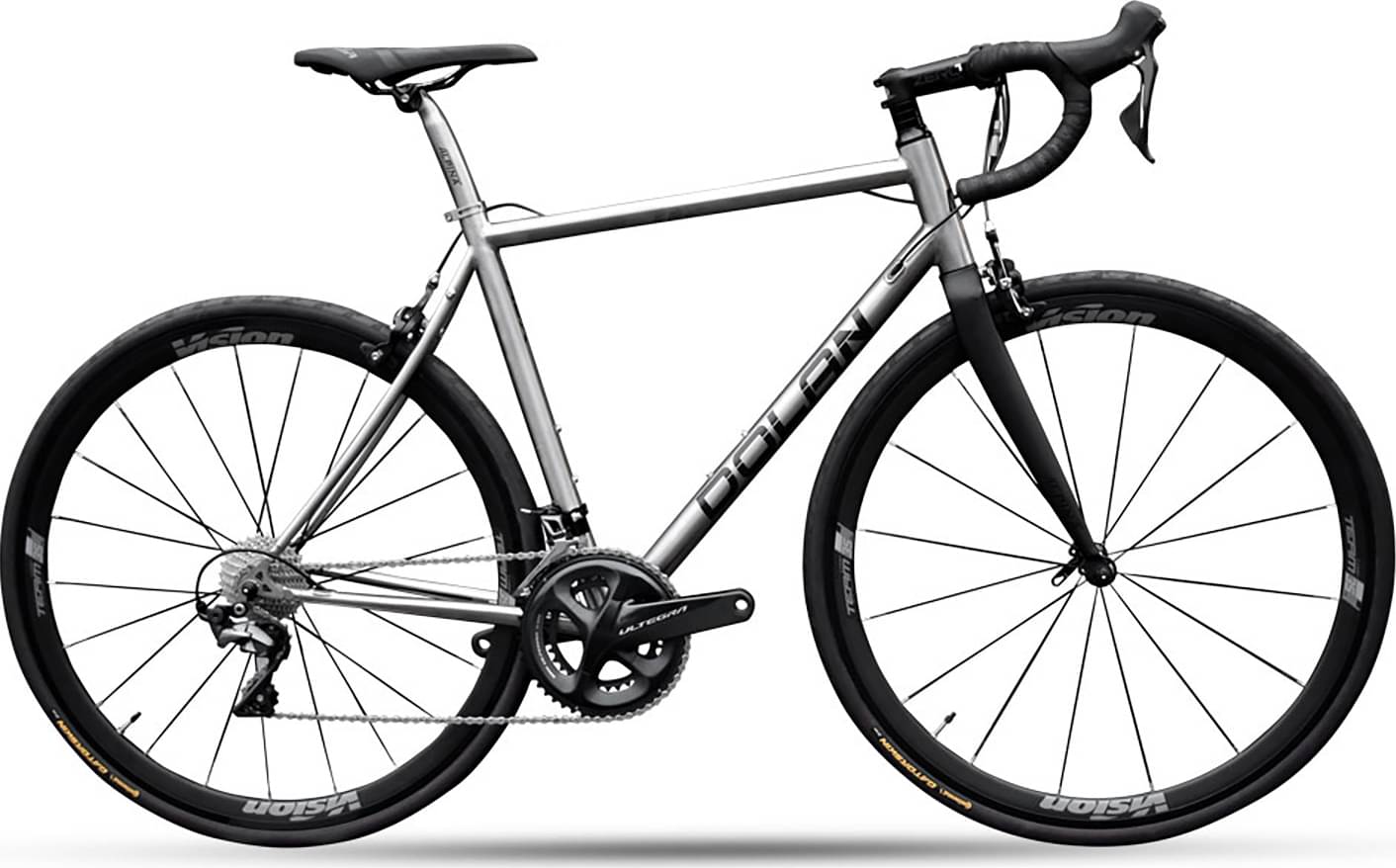

dolan ADX Titanium Road Bike – Shimano 105 R7000 2023
2023 Road
Estimate price |
2,437$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
SM
167cm - 170cm
SM
167cm - 170cm
MD
172cm - 175cm
LG
177cm - 180cm
XL
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ADX Titanium Internal Frame
Suspension Fork
Alpina carbon fork 1 1/8 Int, Carbon Fibre Blades, Aluminium Steering Column, Mudguard fittings.
Drivetrain
Rear Derailleur
105 RD-R7000 Rear Derailleur - 11 Speed - Medium Cage GS
Front Derailleur
105 FD-R7000 Front Derailleur - 11 Speed / Braze On
Cassette
Shimano 105 R7000 Cassette - 11/28
Crank
Shimano 105-R7000 Chainset - 170mm-50/34
Bottom Bracket
Shimano BB-R60 Bottom Bracket
Chain
KMC X11 11spd Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Aksium Wheelset
Tires
Vittoria Zaffiro V Rigid BLK Tyre (25-622-700x25c)
Brakes
Brakes
Shimano BR-R451 Deep Drop Brakes F+R
Cockpit
Stem
Deda Zero (7cm) Stem
Handlebar
Deda Zero RHM Black on Black (Alloy) Handlebars (42cm - Outside-Outside)
Headset
Alpina 1 1/8th Integral - 45*45.
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Alpina 31.6mm Matt Inline Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.48 mm | 1.5 mm | 1.5 mm | 1.54 mm |
| Stack | 547 mm | 565 mm | 582 mm | 593 mm | 619 mm |
| Reach | 383 mm | 381 mm | 387 mm | 395 mm | 401 mm |
| Top Tube Length | 534 mm | 542 mm | 552 mm | 570 mm | 583 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 505 mm | 525 mm | 545 mm | 565 mm | 585 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73 ° | 73.5 ° | 74 ° |
| Head Tube Length | 135 mm | 152 mm | 170 mm | 180 mm | 205 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 167 cm | 167 cm | 172 cm | 177 cm | 182 cm |
| Rider Max Height | 170 cm | 170 cm | 175 cm | 180 cm | 193 cm |
Model Overview
ADX Titanium Road Bike – Shimano 105 R7000 is a Dolan Adx model. Dolan launched 25 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Dolan ADX Titanium Road Bike – Campag Centaur 2023 is the cheapest bike model and costs 2188$. Dolan ADX Titanium Disc Road Bike – Shimano Dura-Ace R9270 Di2 12SPD 2023 is the most expensive one and costs 7845$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2188$. In conclusion, this bike price is 7.22% smaller than the price of the average Endurance bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Dolan ADX Titanium Road Bike – Shimano 105 R7000 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Dolan ADX Titanium Road Bike – Shimano 105 R7000 has Rim brakes installed. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Dolan ADX Titanium Road Bike – Shimano 105 R7000 bike has 5 sizes, in the range of 167 cm – 193 cm (5.48 ft – 6.33 ft). In conclusion, it won’t take much to find one that’s right for you.
