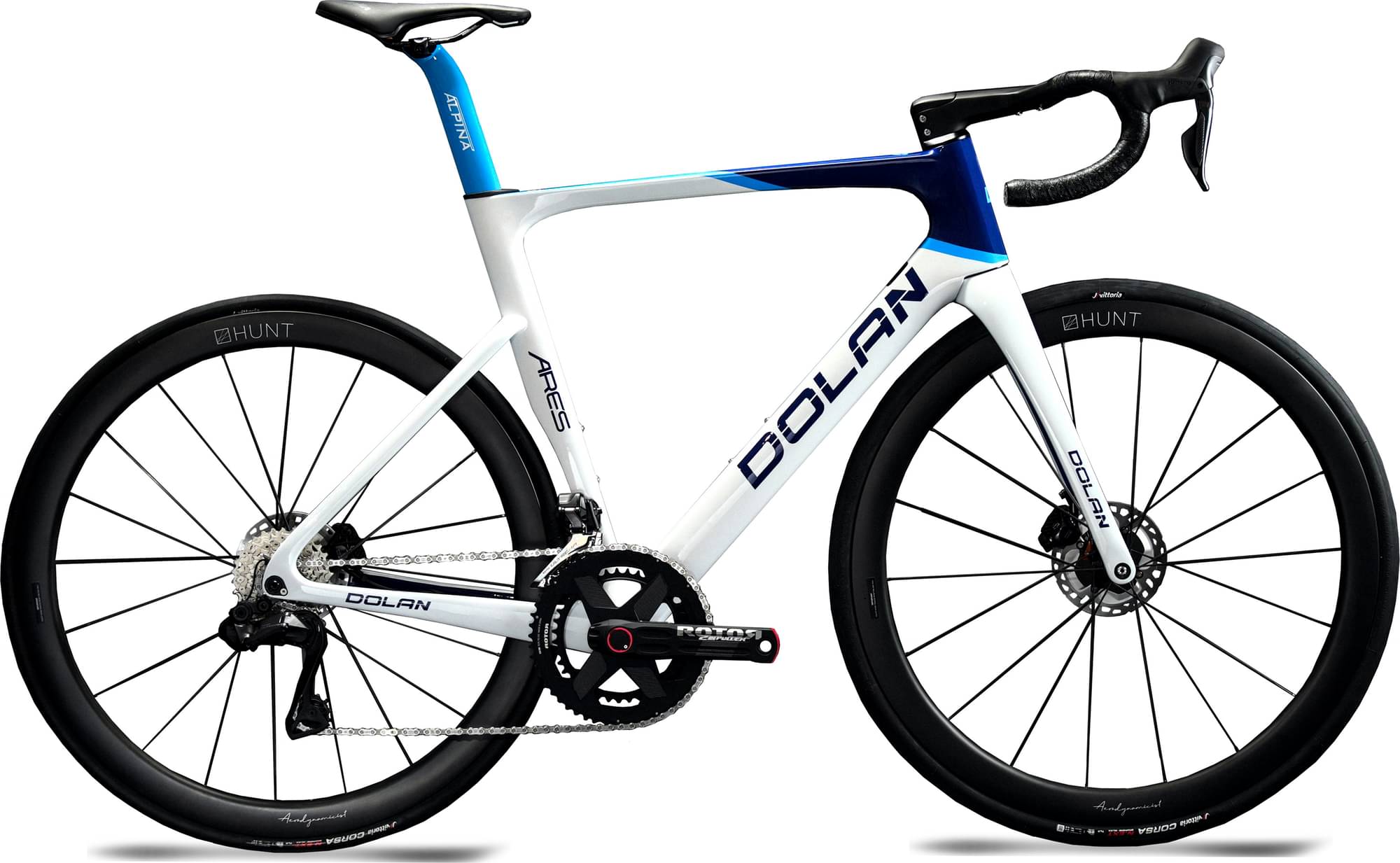

dolan Ares AT85 Replica Team Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 2023
2023 Road
Estimate price |
10,289$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ares Carbon Disc Frame - (X-SML)
Suspension Fork
Ares Disc Carbon Fork
Drivetrain
Rear Derailleur
Dura-Ace R9250 12-SPD - Rear Derailleur
Front Derailleur
Dura-Ace R9250 Di2 Brazed-On 12-SPD - Front Derailleur
Cassette
Dura-Ace R9200 12spd Cassette - 11/30
Crank
Dura-Ace FC R9200 Chainset -170mm - 50/34
Bottom Bracket
Press Fit
Chain
Shimano CN-M8100 XT/Ultegra Chain 12 Speed (With Quick Link)
Pedals
None-Fitted
Wheels
Rims
Hunt 44 UD Carbon Spoke Disc Wheelset
Tires
Vittoria Corsa N.EXT 700x28 Foldable Tyre
Brakes
Brakes
Shimano Dura-Ace R9270 Disc Brake Calipers
Cockpit
Stem
Alpina Onepiece Carbon Road Stem - 9cm
Handlebar
Alpina Onepiece Carbon Road (38cm - Centre-Centre) Handlebars
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Ares Disc Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.44 mm | 1.45 mm | 1.48 mm |
| Stack | 520 mm | 532 mm | 554 mm | 574 mm | 598 mm |
| Reach | 374 mm | 380 mm | 384 mm | 395 mm | 403 mm |
| Top Tube Length | 512 mm | 532 mm | 542 mm | 564 mm | 579 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 105 mm | 115 mm | 135 mm | 155 mm | 180 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Ares AT85 Replica Team Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 completes the Dolan Ares model. Dolan released 22 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Dolan Ares Disc Carbon Road Bike – Shimano-12s-105 R7120 2023 is the most economical model, with a starting price of 3526$. Dolan Ares AT85 Replica Team Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 2023 on the other hand costs 9237$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 9237$. In conclusion, this bike price is 119.35% higher than the price of the average Aero bike.
Ares AT85 Replica Team Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Ares AT85 Replica Team Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 are the 700c carbon type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Dolan Ares AT85 Replica Team Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Dolan Ares AT85 Replica Team Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
