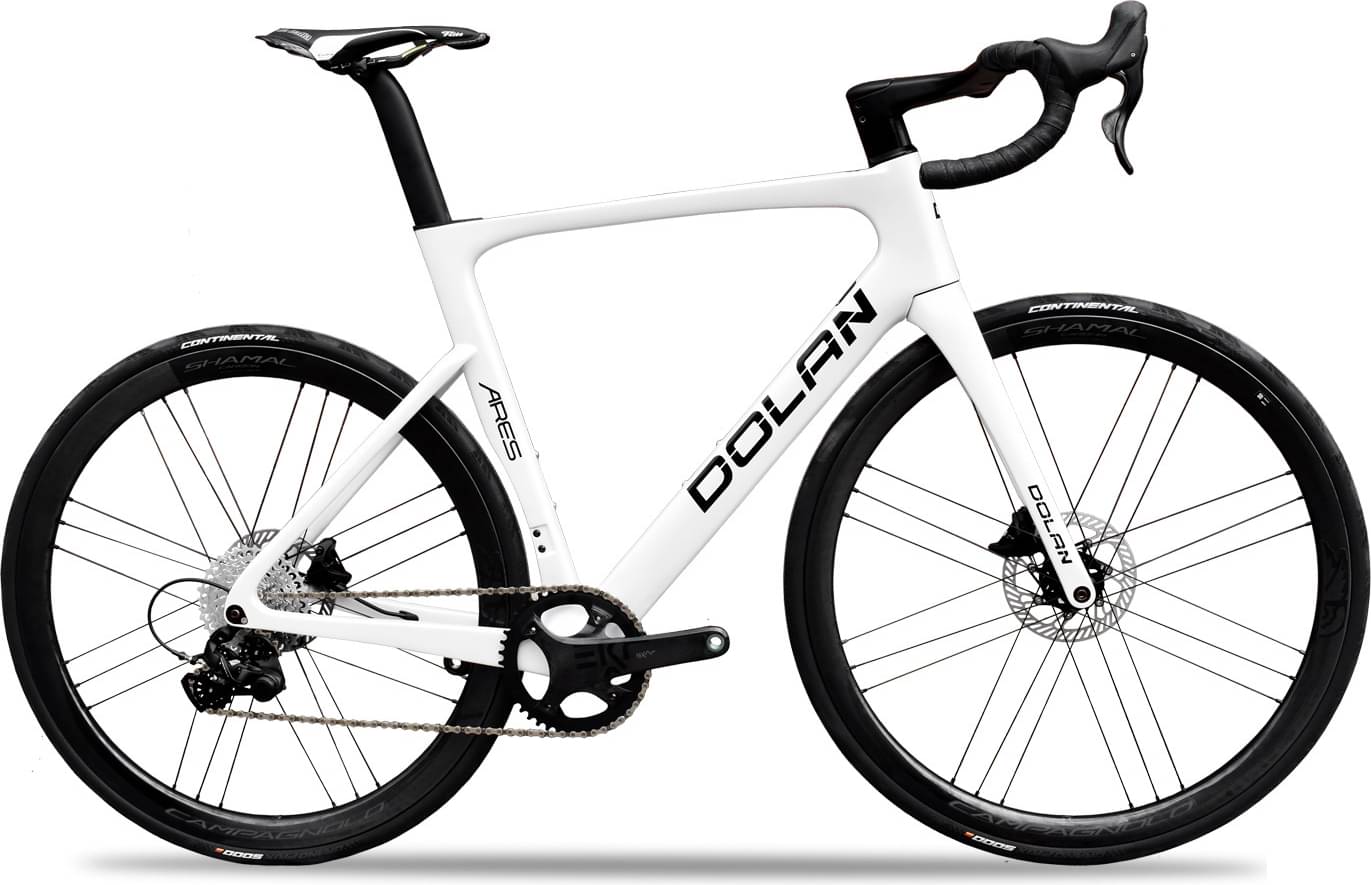

dolan Ares Carbon Disc Road Bike – Campag Ekar 1×13 2022
2022 Road
Estimate price |
5,012$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ares Carbon Disc Frame - (X-SML)
Suspension Fork
Ares Disc Carbon Fork
Drivetrain
Rear Derailleur
Campag Ekar 1x13 Rear Derailleur
Cassette
Campag Ekar 13Spd Cassette-(9/36)
Crank
Campag Ekar Crankset 1x13 - (170 - 38)
Bottom Bracket
Press Fit
Chain
Campag Ekar C13 Gravel Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Allroad Disc Wheelset
Tires
Continental Ultra Sport III Rigid Clincher 700x25c Tyre
Brakes
Brakes
Campag Ekar Disc brake calipers
Cockpit
Stem
Deda Vinci (Alloy) DCR Stem (9cm)
Handlebar
Deda RHM Superzero (Alloy) (40cm - Outside-Outside) Handlebars
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Ares Disc Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.44 mm | 1.45 mm | 1.48 mm |
| Stack | 520 mm | 532 mm | 554 mm | 574 mm | 598 mm |
| Reach | 374 mm | 380 mm | 384 mm | 395 mm | 403 mm |
| Top Tube Length | 512 mm | 532 mm | 542 mm | 564 mm | 579 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 105 mm | 115 mm | 135 mm | 155 mm | 180 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Ares Carbon Disc Road Bike – Campag Ekar 1×13 is part of the Dolan Ares model. Dolan launched 22 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Dolan Ares Carbon Disc Road Bike – Shimano 105 R7020 2022 has a starting price of 3222$. Dolan Ares Carbon Disc Road Bike – Shimano Dura-Ace R9250 Di2 12SPD 2022 on the other hand is the most expensive at 7601$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4499$. Comparing this to the average Aero bike price, we see that the price is 6.84% higher.
Ares Carbon Disc Road Bike – Campag Ekar 1×13 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Ares Carbon Disc Road Bike – Campag Ekar 1×13 2022 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Ares Carbon Disc Road Bike – Campag Ekar 1×13 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
