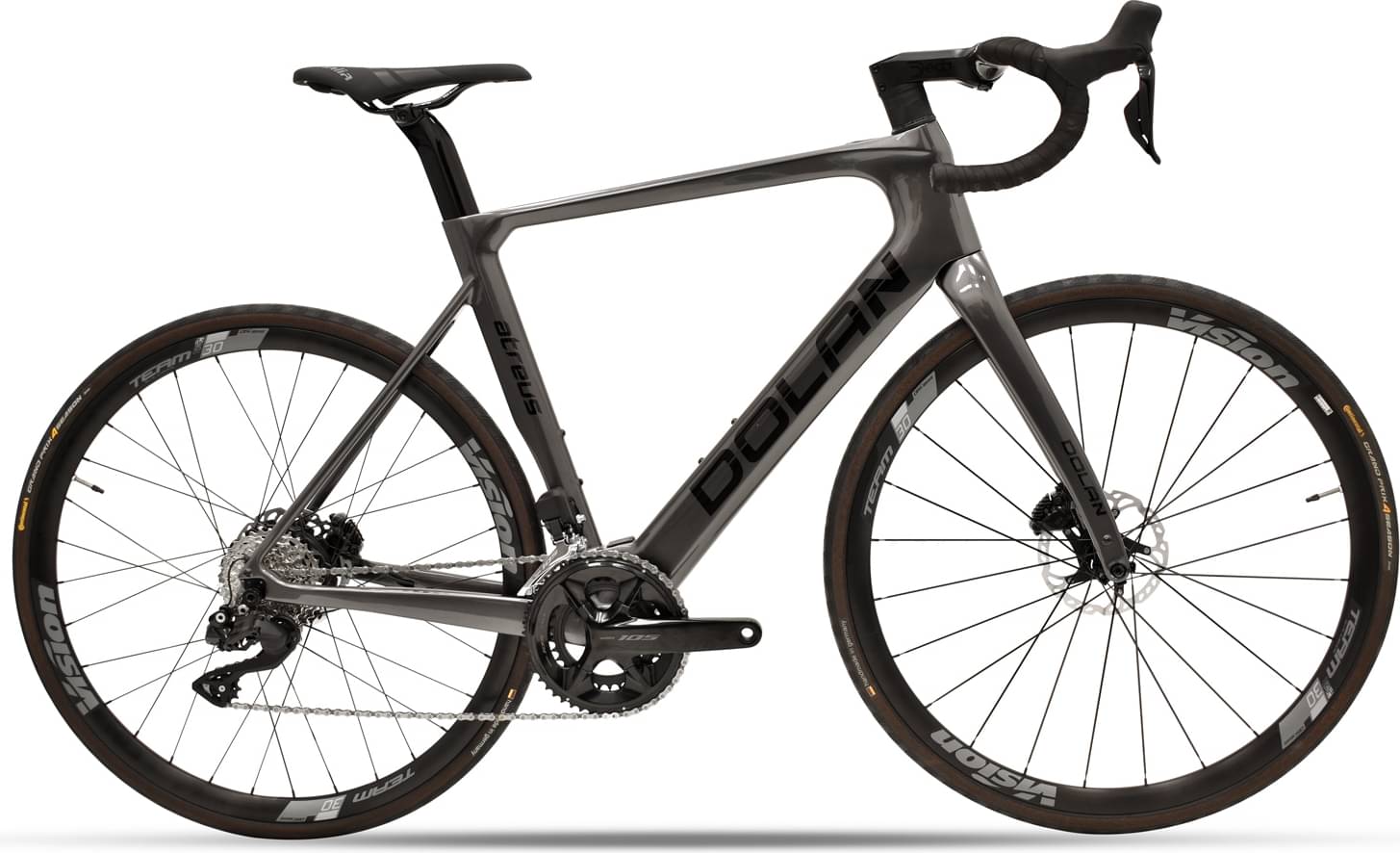

dolan Atreus Carbon Road e-Bike – Shimano-12s-105 R7170-Di2 2022
2022 E-bike
Estimate price |
5,012$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Atreus Carbon E-Frame - SML
Suspension Fork
Atreus Carbon Disc Road Fork
Drivetrain
Rear Derailleur
105 R7150 Di2 12s Rear Derailleur
Front Derailleur
105 R7150 Di2 Brazed-On 12s Front Derailleur
Cassette
Shimano 105 R7100 12Spd Cassette - 11/34
Crank
105-R7100 12s Chainset - 170mm 50/34T
Chain
Shimano CN-M6100 114 LINKS 12SPD Quick-Link Chain
Pedals
None-Fitted
Wheels
Rims
Vision Trimax 30 Aluminium Disc Wheelset
Tires
Continental Ultra Sport III Rigid Clincher 700x25c Tyre
Brakes
Brakes
Shimano 105 BR-R7170F / BR-R7170R Front/Rear Disc Brake Calipers
Cockpit
Stem
Deda Superbox Stem - (9cm)
Handlebar
Deda RHM Superzero (Alloy) (40cm - Outside-Outside) Handlebars
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Atreus Carbon Aero Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.5 mm | 1.53 mm |
| Stack | 535.7 mm | 559.7 mm | 587.3 mm |
| Reach | 369 mm | 374 mm | 383 mm |
| Top Tube Length | 526.5 mm | 546 mm | 566.9 mm |
| Seat Tube Angle | 73.7 ° | 73 ° | 72.7 ° |
| Seat Tube Length | 465 mm | 492 mm | 532 mm |
| Head Tube Angle | 70.7 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 133.4 mm | 155 mm | 159.1 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Atreus Carbon Road e-Bike – Shimano-12s-105 R7170-Di2 is part of the Dolan E Atreus model. Dolan launched 10 e-bikes of this model so far. You can easily view all of the Dolan E Atreus e-bikes models from 2022, here.
Model range prices
Dolan Atreus Carbon Road e-Bike – Shimano 105 R7020 HDR 2022 is the most economical model, with a starting price of 3770$. Dolan Atreus Carbon Road e-Bike – Shimano Dura-Ace R9270-Di2-12SPD 2022 on the other hand costs 8027$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance e-bikes average price
Our math shows that the average cost of a dependable Endurance e-bike is 3800$. However, even though the average price of an Endurance e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Dolan released this model in 2022, its price was 4499$. Comparing the average cost of an Endurance e-bike to this one, you will see that Atreus Carbon Road e-Bike – Shimano-12s-105 R7170-Di2 price is 18.39% more expensive.
Atreus Carbon Road e-Bike – Shimano-12s-105 R7170-Di2 components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on Atreus Carbon Road e-Bike – Shimano-12s-105 R7170-Di2 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Atreus Carbon Road e-Bike – Shimano-12s-105 R7170-Di2 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
