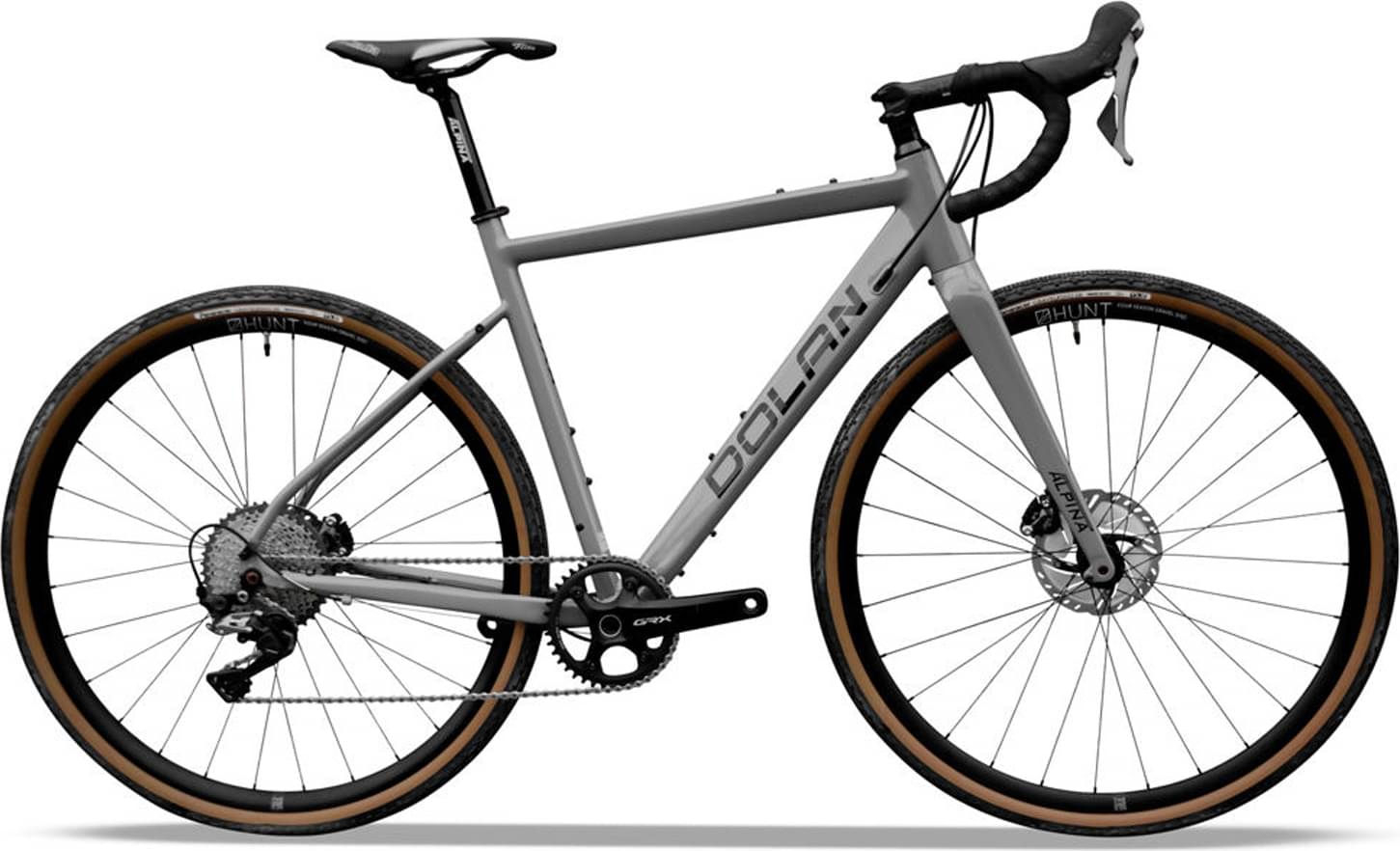

dolan GXA Aluminium Disc Gravel Bike – Shimano GRX RX815 DI2 2×11 HDR 2022
2022 Road
Estimate price |
4,605$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX Di2, GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
GXA Gravel Frame - Battleship Grey - (49cm X-SML)
Suspension Fork
Dolan GXA Carbon Gravel Adventure Fork (3-Bolt), +£99.98
Drivetrain
Rear Derailleur
GRX RD-RX815-DI2 - (34T) Rear Derailleur
Front Derailleur
GRX RX815 DI2 Front Derailleur
Shift Levers
Shimano GRX RX815 DI2 2x11 Speed Shift Levers
Cassette
Ultegra R8000 11 Speed Cassette - 11/30
Crank
GRX RX810 2x11 Chainset-170mm 48/31T
Bottom Bracket
Tthreaded
Chain
KMC X11 11spd Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Allroad Disc Wheelset
Tires
Continental Ultra Sport III Rigid Clincher 700x28c Tyre
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Deda Zero (7cm) Stem
Handlebar
Deda Zero RHM Black on Black (Alloy) Handlebars (42cm - Outside-Outside)
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Alpina 27.2mm Aluminium Seatpost (350mm Setback)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.58 mm | 1.54 mm |
| Stack | 546 mm | 565 mm | 577 mm | 597 mm | 614 mm | 629 mm |
| Reach | 371 mm | 375 mm | 376 mm | 385 mm | 388 mm | 409.2 mm |
| Top Tube Length | 530 mm | 540 mm | 550 mm | 565 mm | 580 mm | 600 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 72.5 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model
GXA Aluminium Disc Gravel Bike – Shimano GRX RX815 DI2 2×11 HDR is part of the Dolan Gxa model. There are 23 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Dolan GXA Aluminium Disc Gravel Bike – Shimano 105 R7020 HDR 2022 has a starting price of 1945$. Dolan GXA Aluminium Disc Gravel Bike – Shimano GRX RX815 DI2 2×11 HDR 2022 on the other hand is the most expensive at 4135$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 4135$. If we compare this with the average Gravel bike cost we notice that the price is 67.95% higher.
GXA Aluminium Disc Gravel Bike – Shimano GRX RX815 DI2 2×11 HDR components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the GXA Aluminium Disc Gravel Bike – Shimano GRX RX815 DI2 2×11 HDR model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Dolan GXA Aluminium Disc Gravel Bike – Shimano GRX RX815 DI2 2×11 HDR is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
