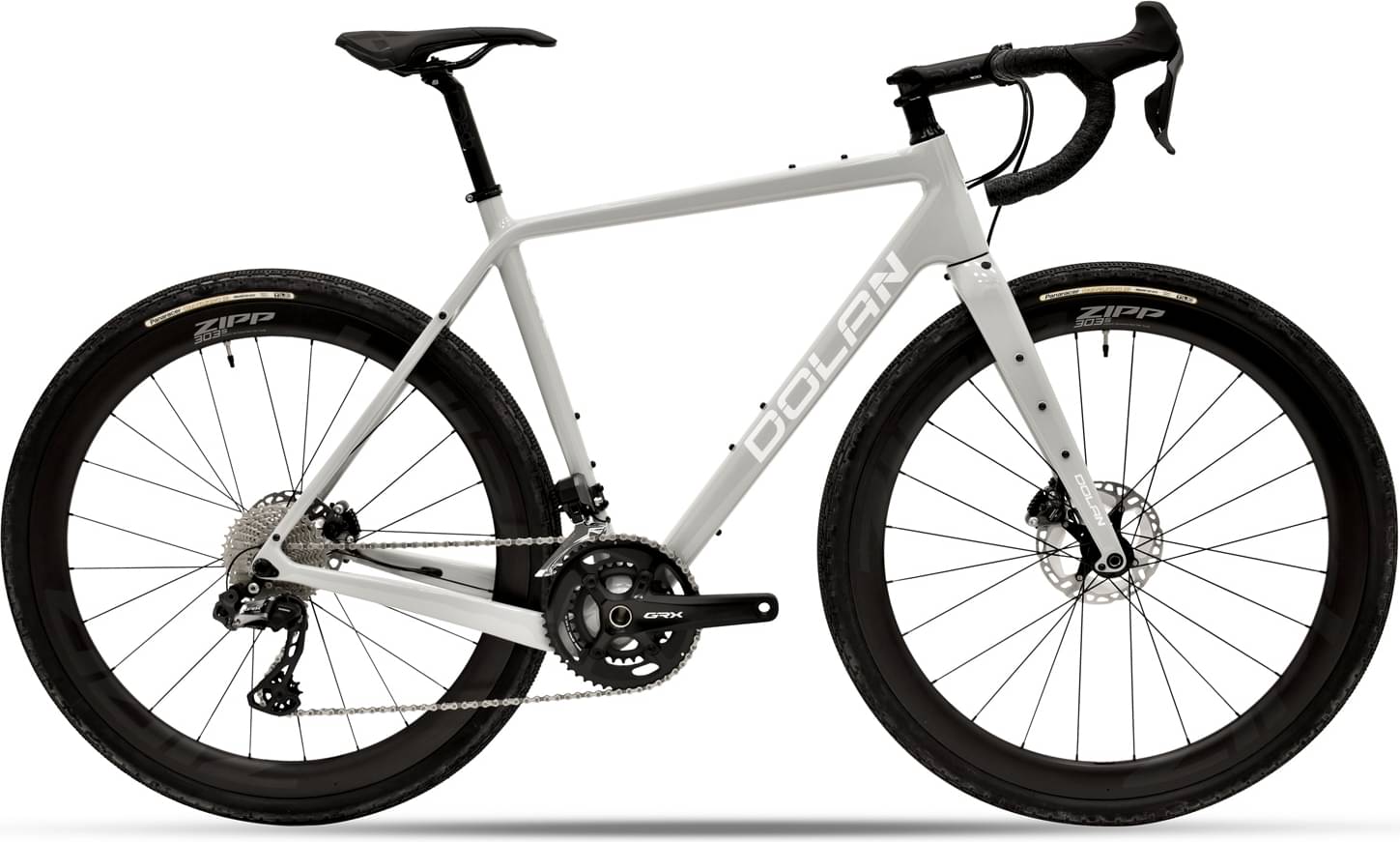

dolan GXC Carbon Disc Gravel Bike – Shimano GRX 2×11 RX815 Di2 SE 2023
2023 Road
Estimate price |
6,643$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX Di2, GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dolan GXC Carbon Gravel Frame(X-SML)
Suspension Fork
GXC Axle Kit - Frame/Fork
Drivetrain
Rear Derailleur
GRX RD-RX815-DI2 - (34T) Rear Derailleur
Front Derailleur
GRX RX815 DI2 Front Derailleur
Shift Levers
Shimano GRX RX815 DI2 2x11 Speed Shift Levers
Cassette
Ultegra R8000 11 Speed Cassette - 11/30
Crank
GRX RX810 2x11 Chainset-170mm 48/31T
Chain
KMC X11 11spd Chain
Pedals
None-Fitted
Wheels
Rims
Alpina A3D 30mm Carbon Tubular Disc Road Wheelset (Black)
Tires
Panaracer GravelKing SK TLC Folding 700x43c Tyre
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Deda Zero 100 (8cm) Stem
Handlebar
Deda Gravel 100 (Alloy) (40cm - Outside-Outside) Handlebars
Seat
Seatpost
Deda Zero 1 27.2mm Aluminium Seatpost (350mm Setback)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.58 mm | 1.54 mm |
| Stack | 546 mm | 565 mm | 577 mm | 597 mm | 614 mm | 629 mm |
| Reach | 371 mm | 375 mm | 376 mm | 385 mm | 388 mm | 409.2 mm |
| Top Tube Length | 530 mm | 540 mm | 550 mm | 565 mm | 580 mm | 600 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 72.5 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model
GXC Carbon Disc Gravel Bike – Shimano GRX 2×11 RX815 Di2 SE is part of the Dolan Gxc model. Dolan released 27 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Dolan GXC Carbon Disc Gravel Bike – Shimano 105 R7020 HDR 2023 has a starting price of 2432$. Dolan GXC Carbon Disc Gravel Bike – Shimano GRX 2×11 RX815 Di2 SE 2023 on the other hand is the most expensive at 6038$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 6038$. Comparing this to the average Gravel bike price, we see that the price is 145.25% higher.
GXC Carbon Disc Gravel Bike – Shimano GRX 2×11 RX815 Di2 SE components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on GXC Carbon Disc Gravel Bike – Shimano GRX 2×11 RX815 Di2 SE are the 700c carbon type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
GXC Carbon Disc Gravel Bike – Shimano GRX 2×11 RX815 Di2 SE comes in 6 sizes, that range from 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
