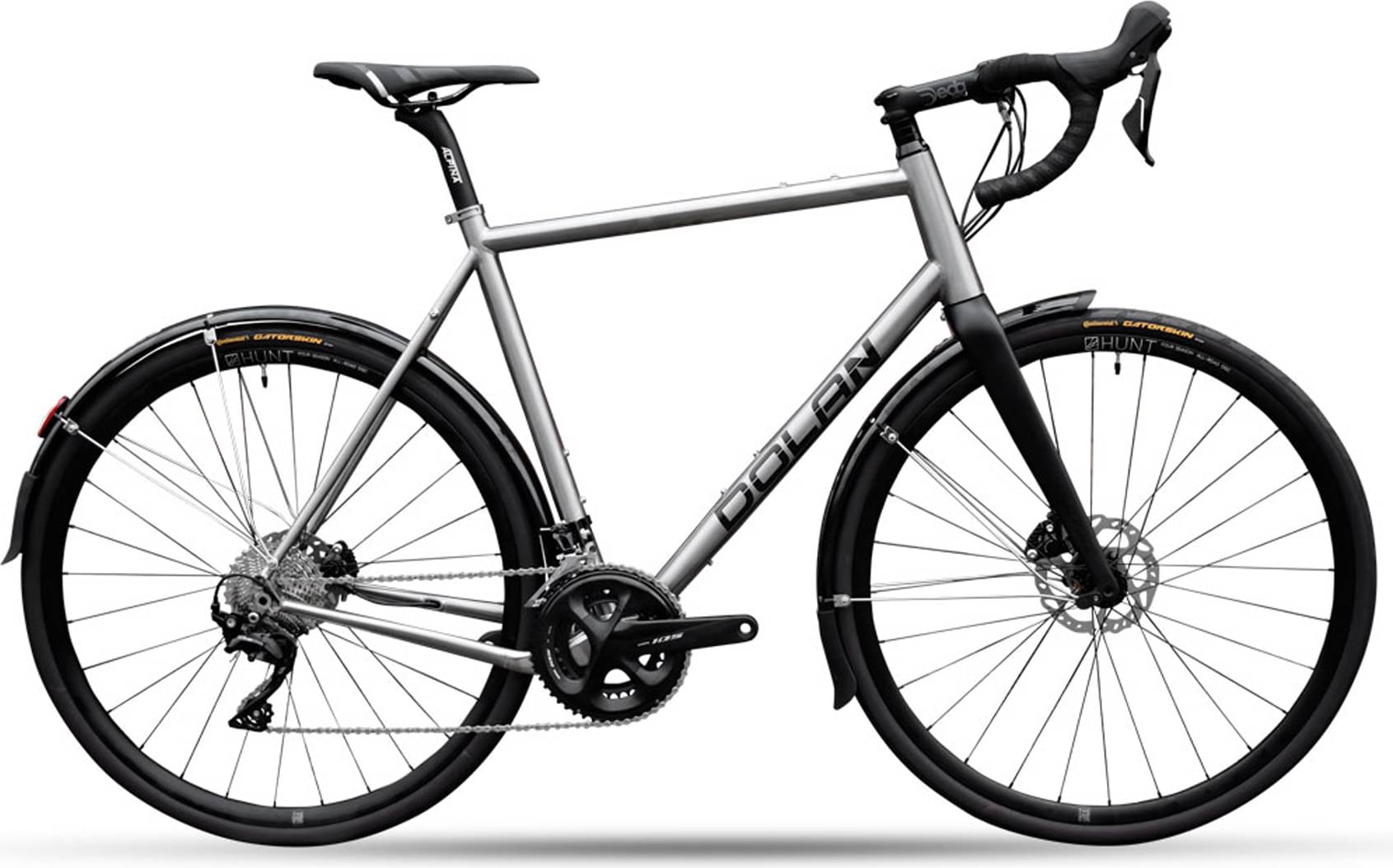

dolan GXT Titanium Gravel Disc Bike – Shimano 105 R7020 HDR 2022

2022 Road
Estimate price | 3,420$
Open compare Use advisor
Dolan Gxt Titanium Gravel Disc Bike Shimano 105 R7020 Hdr 2022

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Titanium
  • Wheels 700c
  • Groupset 105
  • Suspension Rigid
  • Drivetrain 2 × 11
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    165cm - 170cm

  • SM

    165cm - 170cm

  • MD

    172cm - 177cm

  • LG

    180cm - 188cm

  • XL

    190cm - 198cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

GXT Titanium Disc Gravel Frame

Suspension Fork

Dolan GXT Carbon Gravel Adventure Fork (3-Bolt)

Drivetrain

Rear Derailleur

105 RD-R7000 Rear Derailleur - 11 Speed - Medium Cage GS

Front Derailleur

105 FD-R7000 Front Derailleur - 11 Speed / Braze On

Cassette

Shimano 105 R7000 Cassette - 11/28

Crank

Shimano 105-R7000 Chainset - 170mm-50/34

Bottom Bracket

BB86

Chain

KMC X11 11spd Chain

Pedals

None-Fitted

Wheels

Rims

Mavic Allroad Disc Wheelset

Tires

Continental Ultra Sport III Rigid Clincher 700x28c Tyre

Brakes

Brakes

Hydraulic Disc

Cockpit

Stem

Deda Zero (7cm) Stem

Handlebar

Deda Zero RHM Black on Black (Alloy) Handlebars (42cm - Outside-Outside)

Seat

Saddle

Selle Italia Model X SuperFlow Saddle - Black

Seatpost

Alpina 31.6mm Matt Inline Carbon Seatpost

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMSMMDLGXL
Stack Reach Ratio
1.43 mm1.48 mm1.5 mm1.52 mm1.53 mm
Stack
538.9 mm561.6 mm571 mm591.9 mm611 mm
Reach
376.9 mm380.4 mm381.9 mm390.6 mm399.7 mm
Top Tube Length
525 mm540 mm555 mm570 mm585 mm
Seat Tube Angle
74.5 °74 °73 °73 °73 °
Seat Tube Length
490 mm520 mm540 mm560 mm580 mm
Head Tube Angle
70.5 °71.5 °71.5 °72 °72 °
Head Tube Length
120 mm140 mm150 mm170 mm190 mm
Wheels700700700700700
Rider Min Height165 cm165 cm172 cm180 cm190 cm
Rider Max Height170 cm170 cm177 cm188 cm198 cm

About this model

GXT Titanium Gravel Disc Bike – Shimano 105 R7020 HDR is a Dolan Gxt model. Dolan launched 23 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.

Model range prices

Dolan GXT Titanium Gravel Disc Bike – Shimano 105 R7020 HDR 2022 is the most economical model, with a starting price of 3070$. Dolan GXT Titanium Gravel Disc Bike – Shimano Ultegra R8170 DI2 2022 on the other hand costs 5533$, and is the most expensive model.

Safety

Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.

Gravel bikes average price

If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.

Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3070$. Comparing this to the average Gravel bike price, we see that the price is 24.7% higher.

Overview of components

Fork material

GXT Titanium Gravel Disc Bike – Shimano 105 R7020 HDR has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.

Wheels size

The GXT Titanium Gravel Disc Bike – Shimano 105 R7020 HDR 2022 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.

Brakes

For your safety, it is important to have quality breaks on your bike. Dolan GXT Titanium Gravel Disc Bike – Shimano 105 R7020 HDR has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.

Sizes

This bike is available in 5 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
