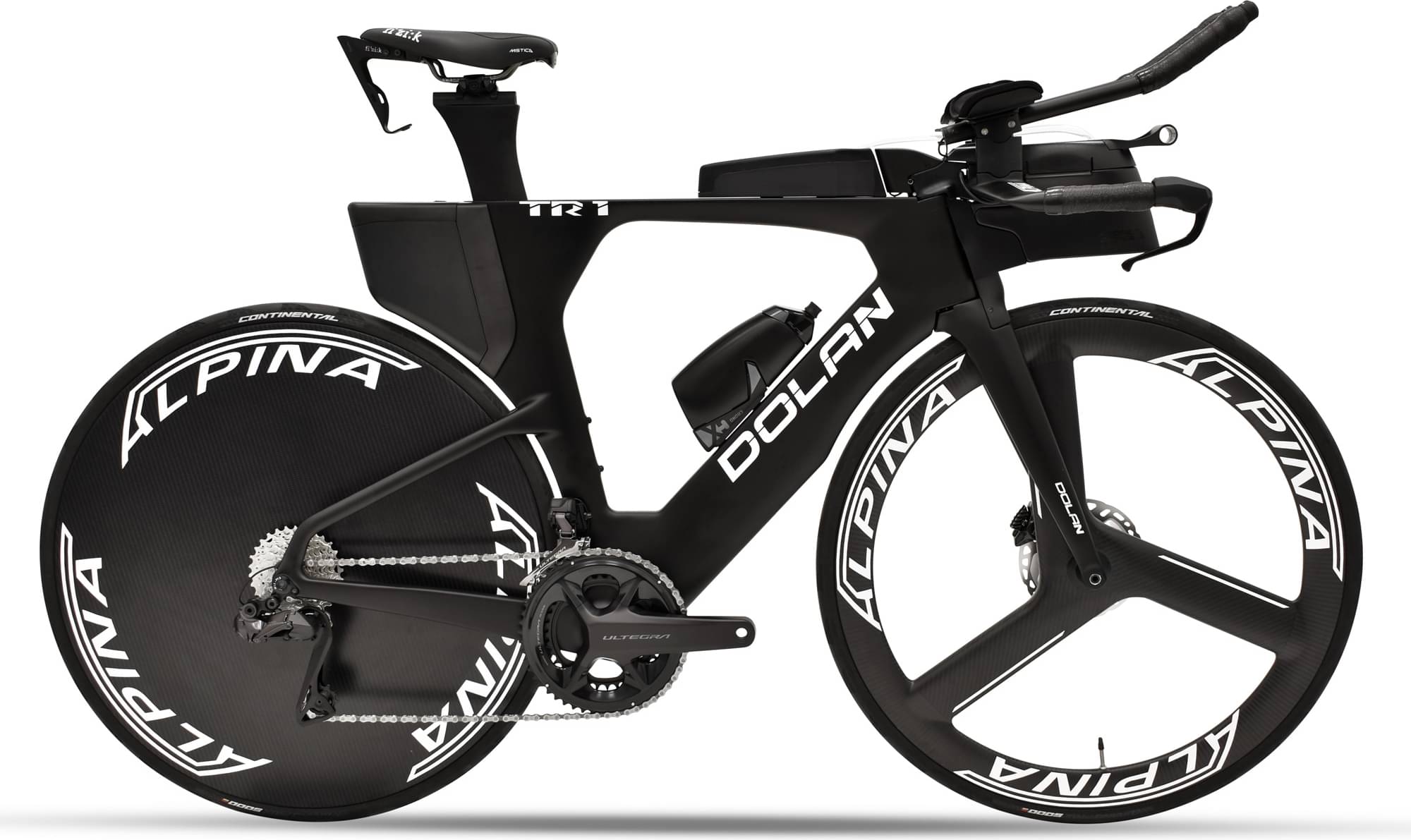

dolan TR1 TT/Triathlon Disc Carbon Bike – Shimano Ultegra R8170 Di2 2022
2022 Road
Estimate price |
6,434$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2, Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TR1 Carbon TT Disc Frame - (SML)
Suspension Fork
DolanTR1 Carbon Disc Fork
Drivetrain
Rear Derailleur
Ultegra RD-R8150 Di2 12-SPD - 34T Rear Derailleur
Front Derailleur
Ultegra FD-R8150 Di2 Brazed-On 12-SPD - Front Derailleur
Shift Levers
SHIMANO SW-R9160 DI2 Remote Triathlon Shifter
Cassette
Ultegra CS R8100 12spd Cassette - 11/30
Crank
Ultegra R8100 Chainset - 170mm - 50/34
Bottom Bracket
DUB
Chain
Shimano CN-M9100-XTR-12Speed Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Ksyrium 30 Disc Wheelset
Tires
Continental Ultra Sport III Rigid Clincher 700x25c Tyre
Brakes
Brakes
TRP-HD T910 Disc Brakes/Levers
Cockpit
Handlebar
Alpina Carbon TT Handlebars
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
TR1 Adjustable Carbon Seatpost - (Black)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.34 mm | 1.34 mm | 1.32 mm |
| Front Center | 570 mm | 586 mm | 609 mm | 636 mm |
| Stack | 502 mm | 521 mm | 546 mm | 572 mm |
| Reach | 368 mm | 388 mm | 408 mm | 432 mm |
| Top Tube Length | 483 mm | 508 mm | 533 mm | 563 mm |
| Seat Tube Length | 505 mm | 525 mm | 549 mm | 577 mm |
| Head Tube Angle | 70.3 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 100 mm | 115 mm | 140 mm | 165 mm |
| Chainstay Length | 398 mm | 398 mm | 398 mm | 398 mm |
| Wheelbase | 957 mm | 973 mm | 996 mm | 1024 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
TR1 TT/Triathlon Disc Carbon Bike – Shimano Ultegra R8170 Di2 belongs to the Dolan Tr1 model. 5 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Dolan TR1 Triathlon Disc Carbon Bike – Shimano Ultegra R8020 2022 has a starting price of 4195$. Dolan TR1 TT/Triathlon Disc Carbon Bike – Shimano Ultegra R8170 Di2 2022 on the other hand is the most expensive at 5777$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Triathlon bikes
If you want an acceptable Triathlon bike you should know that the average price is 4177$. However, you could also get a good Triathlon bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Dolan TR1 TT/Triathlon Disc Carbon Bike – Shimano Ultegra R8170 Di2 price was 5777$. If we compare this with the average Triathlon bike cost we notice that the price is 38.31% higher.
TR1 TT/Triathlon Disc Carbon Bike – Shimano Ultegra R8170 Di2 components
Fork material
TR1 TT/Triathlon Disc Carbon Bike – Shimano Ultegra R8170 Di2 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the TR1 TT/Triathlon Disc Carbon Bike – Shimano Ultegra R8170 Di2 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
