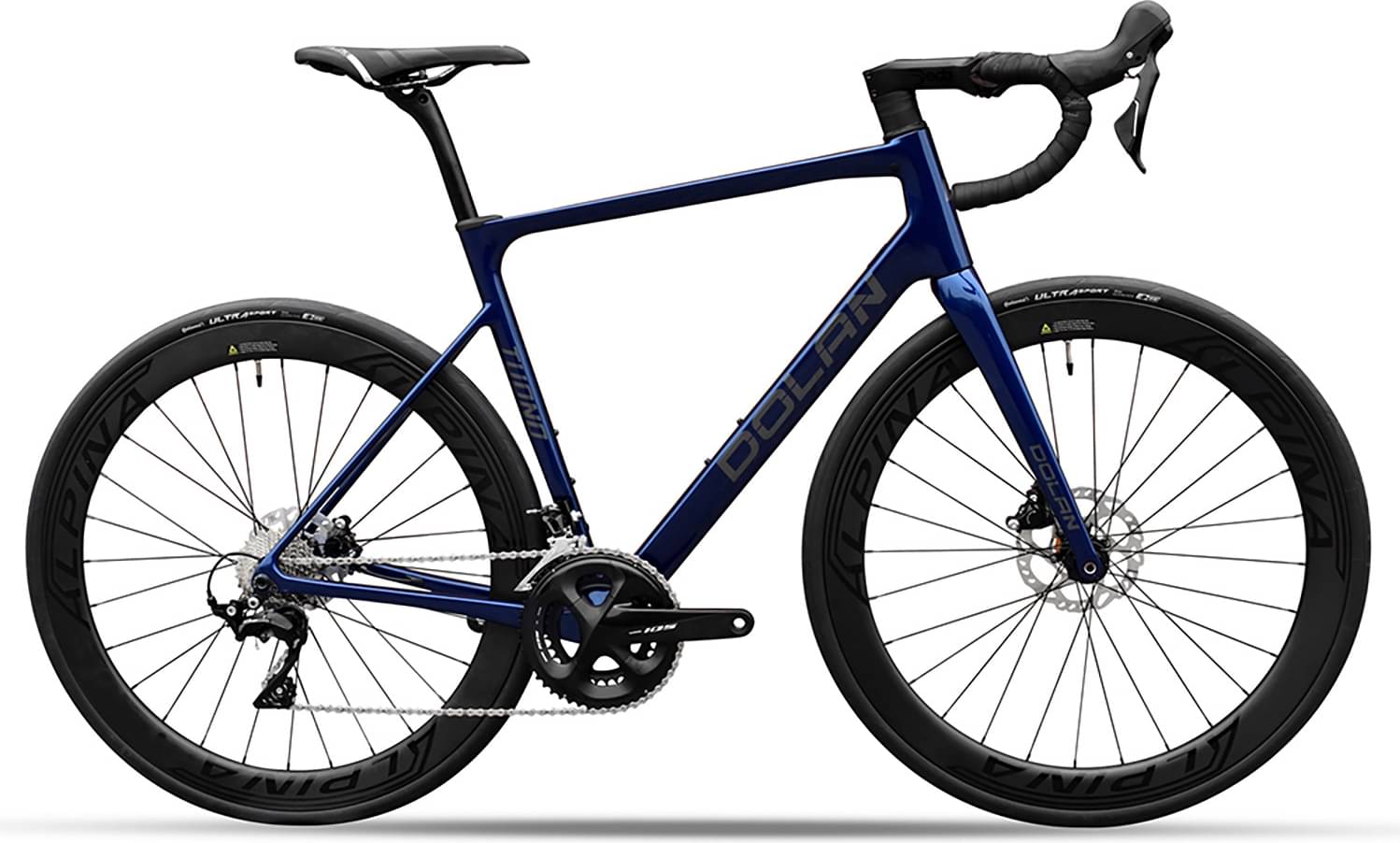

dolan Tuono Carbon Disc Road Bike – Shimano 105 R7020 2022
2022 Road
Estimate price |
3,047$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 160cm
SM
162cm - 170cm
MD
172cm - 177cm
LG
180cm - 185cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tuono Disc Carbon Frame - (X-SML)
Suspension Fork
Tuono Disc Carbon Fork
Drivetrain
Rear Derailleur
105 RD-R7000 Rear Derailleur - 11 Speed - Medium Cage GS
Front Derailleur
105 FD-R7000 Front Derailleur - 11 Speed / Braze On
Cassette
Shimano 105 R7000 Cassette - 11/28
Crank
Shimano 105-R7000 Chainset - 170mm-50/34
Bottom Bracket
Press Fit
Chain
KMC X11 11spd Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Aksium Disc Wheelset
Tires
Continental Ultra Sport III Rigid Clincher 700x25c Tyre
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Deda Superbox Stem - (9cm)
Handlebar
Deda RHM Superzero (Alloy) (40cm - Outside-Outside) Handlebars
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Tuono Disc Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.56 mm |
| Front Center | 585.9 mm | 587.6 mm | 594.5 mm | 594.5 mm | 608.8 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 527.8 mm | 548.1 mm | 567.1 mm | 585.6 mm | 606.6 mm |
| Reach | 367.2 mm | 370.5 mm | 376.8 mm | 381 mm | 388.9 mm |
| Top Tube Length | 512 mm | 526 mm | 542 mm | 556 mm | 576 mm |
| Seat Tube Angle | 74.8 ° | 74.3 ° | 73.9 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.8 ° | 71.7 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 138 mm | 157 mm | 172 mm | 195 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 985 mm | 987 mm | 994 mm | 994 mm | 1008 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 172 cm | 180 cm | 188 cm |
| Rider Max Height | 160 cm | 170 cm | 177 cm | 185 cm | 195 cm |
Model Overview
Tuono Carbon Disc Road Bike – Shimano 105 R7020 completes the Dolan Tuono model. Dolan launched 15 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Dolan Tuono Carbon Disc Road Bike – Shimano 105 R7020 2022 has a starting price of 2736$. Dolan Tuono Carbon Disc Road Bike – Shimano Dura-Ace R89270 Di2 12SPD 2022 on the other hand is the most expensive at 7115$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Dolan released this model in 2022, its price was 2736$. Doing a quick comparison, we notice that Tuono Carbon Disc Road Bike – Shimano 105 R7020 price is 16.62% more expensive than the average cost of an Endurance bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Tuono Carbon Disc Road Bike – Shimano 105 R7020 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Tuono Carbon Disc Road Bike – Shimano 105 R7020 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Tuono Carbon Disc Road Bike – Shimano 105 R7020 comes in 5 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
