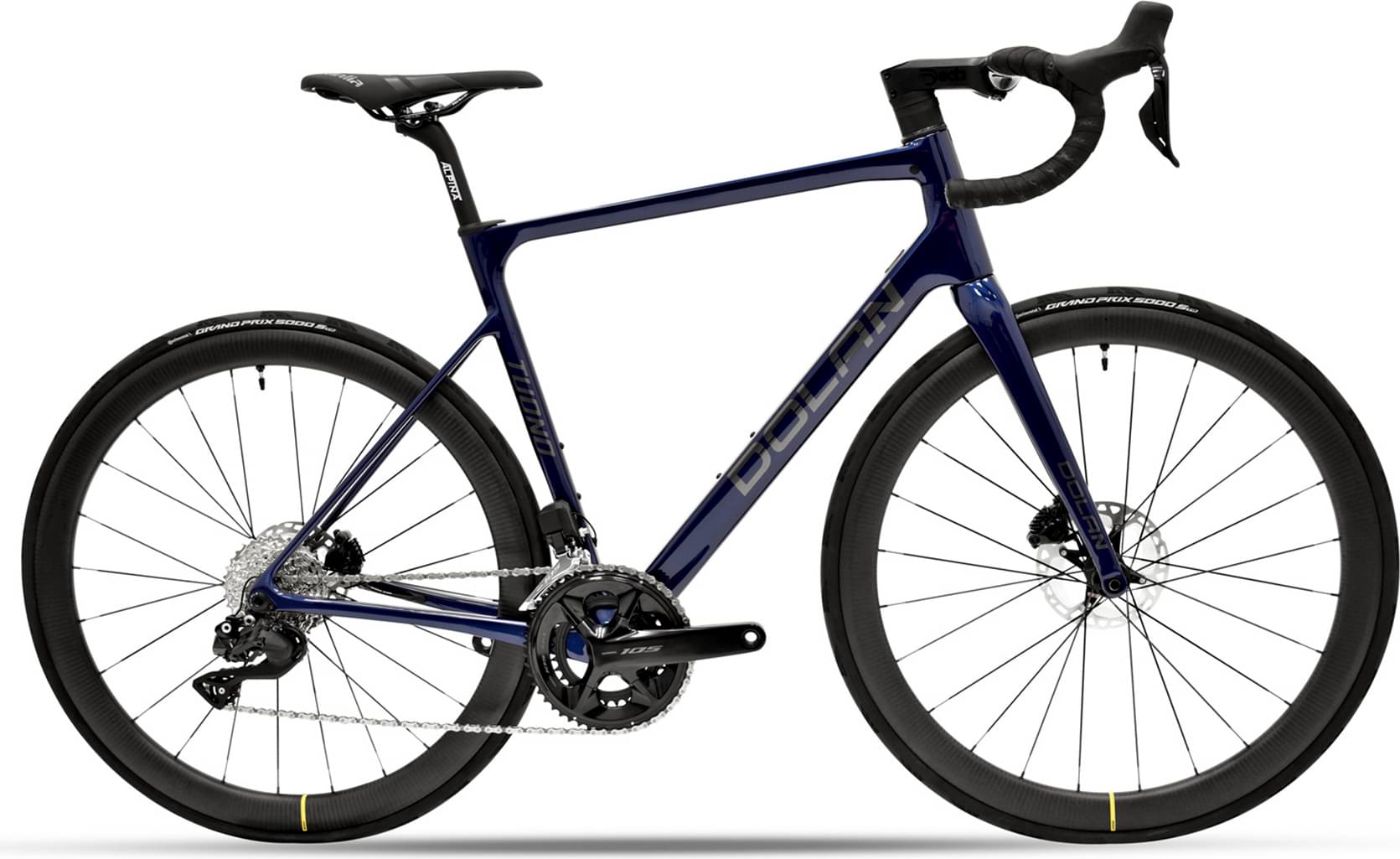

dolan Tuono Carbon Disc Road Bike – Shimano-12s-105 R7170 Di2 2023
2023 Road
Estimate price |
3,947$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tuono Disc Carbon Frame - (X-SML)
Suspension Fork
Tuono Disc Carbon Fork
Drivetrain
Rear Derailleur
105 R7150 Di2 12s Rear Derailleur
Front Derailleur
105 R7150 Di2 Brazed-On 12s Front Derailleur
Cassette
Shimano 105 R7100 12Spd Cassette - 11/34
Crank
105-R7100 12s Chainset - 170mm 50/34T
Bottom Bracket
Press Fit
Chain
Shimano CN-M6100 114 LINKS 12SPD Quick-Link Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Aksium Disc Wheelset
Tires
Vittoria Zaffiro V Rigid BLK Tyre (25-622-700x25c)
Brakes
Brakes
Shimano 105 BR-R7170F / BR-R7170R Front/Rear Disc Brake Calipers
Cockpit
Stem
Deda Vinci (Alloy) DCR Stem (9cm)
Handlebar
Deda RHM Superzero (Alloy) (40cm - Outside-Outside) Handlebars
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Tuono Disc Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.56 mm |
| Front Center | 585.9 mm | 587.6 mm | 594.5 mm | 594.5 mm | 608.8 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 527.8 mm | 548.1 mm | 567.1 mm | 585.6 mm | 606.6 mm |
| Reach | 367.2 mm | 370.5 mm | 376.8 mm | 381 mm | 388.9 mm |
| Top Tube Length | 512 mm | 526 mm | 542 mm | 556 mm | 576 mm |
| Seat Tube Angle | 74.8 ° | 74.3 ° | 73.9 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.8 ° | 71.7 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 138 mm | 157 mm | 172 mm | 195 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 985 mm | 987 mm | 994 mm | 994 mm | 1008 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Tuono Carbon Disc Road Bike – Shimano-12s-105 R7170 Di2 is a Dolan Tuono model. 15 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Dolan Tuono Carbon Disc Road Bike – Shimano 105 R7020 2023 is the most economical model, with a starting price of 2736$. Dolan Tuono Carbon Disc Road Bike – Shimano Dura-Ace R89270 Di2 12SPD 2023 on the other hand costs 7115$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance bikes
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Dolan released this model in 2023, its price was 3587$. If we compare this with the average Endurance bike cost we notice that the price is 52.9% higher.
Overview of components
Fork material
Tuono Carbon Disc Road Bike – Shimano-12s-105 R7170 Di2 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on Tuono Carbon Disc Road Bike – Shimano-12s-105 R7170 Di2 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Tuono Carbon Disc Road Bike – Shimano-12s-105 R7170 Di2 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Tuono Carbon Disc Road Bike – Shimano-12s-105 R7170 Di2 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
