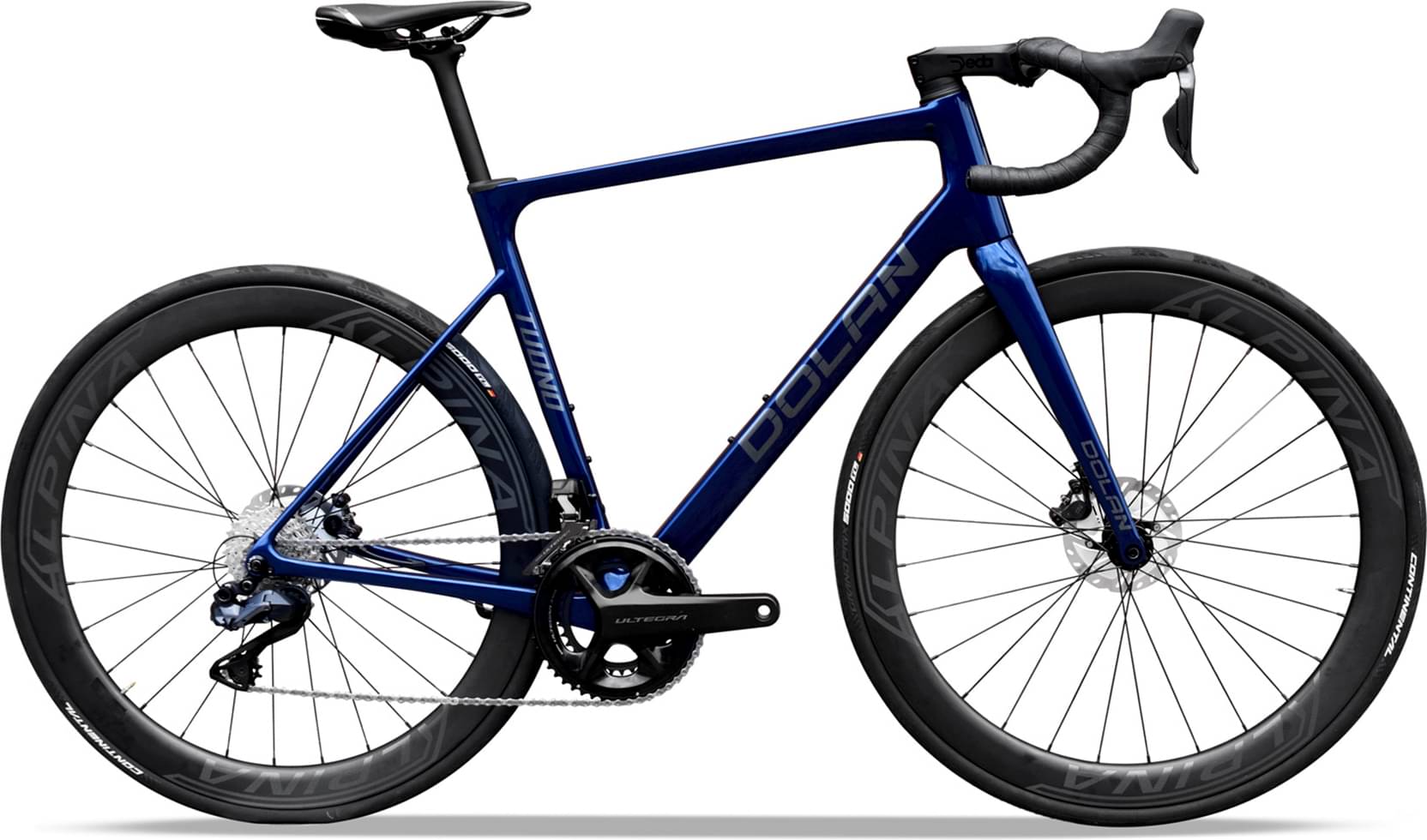

dolan Tuono Carbon Disc Road Bike – Shimano Ultegra R8150 Di2 12SPD 2023
2023 Road
Estimate price |
5,215$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tuono Disc Carbon Frame - (X-SML)
Suspension Fork
Tuono Disc Carbon Fork
Drivetrain
Rear Derailleur
Ultegra RD-R8150 Di2 12-SPD - 34T Rear Derailleur
Front Derailleur
Ultegra FD-R8150 Di2 Brazed-On 12-SPD - Front Derailleur
Cassette
Ultegra CS R8100 12spd Cassette - 11/30
Crank
Ultegra R8100 Chainset - 170mm - 50/34
Bottom Bracket
Press Fit
Chain
Shimano CN-M8100 XT/Ultegra Chain 12 Speed (With Quick Link)
Pedals
None-Fitted
Wheels
Rims
Mavic Aksium Disc Wheelset
Tires
Vittoria Zaffiro V Rigid BLK Tyre (25-622-700x25c)
Brakes
Brakes
Shimano Ultegra BR-R8170 Flat Mount Disc Brake Calipers
Cockpit
Stem
Deda Vinci (Alloy) DCR Stem (9cm)
Handlebar
Deda RHM Superzero (Alloy) (40cm - Outside-Outside) Handlebars
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Tuono Disc Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.56 mm |
| Front Center | 585.9 mm | 587.6 mm | 594.5 mm | 594.5 mm | 608.8 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 527.8 mm | 548.1 mm | 567.1 mm | 585.6 mm | 606.6 mm |
| Reach | 367.2 mm | 370.5 mm | 376.8 mm | 381 mm | 388.9 mm |
| Top Tube Length | 512 mm | 526 mm | 542 mm | 556 mm | 576 mm |
| Seat Tube Angle | 74.8 ° | 74.3 ° | 73.9 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.8 ° | 71.7 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 138 mm | 157 mm | 172 mm | 195 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 985 mm | 987 mm | 994 mm | 994 mm | 1008 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Tuono Carbon Disc Road Bike – Shimano Ultegra R8150 Di2 12SPD completes the Dolan Tuono model. Dolan released 15 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Dolan Tuono Carbon Disc Road Bike – Shimano 105 R7020 2023 is the most economical model, with a starting price of 2736$. Dolan Tuono Carbon Disc Road Bike – Shimano Dura-Ace R89270 Di2 12SPD 2023 on the other hand costs 7115$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4682$. In conclusion, this bike price is 99.57% higher than the price of the average Endurance bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Tuono Carbon Disc Road Bike – Shimano Ultegra R8150 Di2 12SPD model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Tuono Carbon Disc Road Bike – Shimano Ultegra R8150 Di2 12SPD comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
