Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
525 Disc, HM UD Carbon, Aero Tube Profile, Integrated Cables, TA 12x142mm
Suspension Fork
525 Disc, 60T-40T-30T HM UD Carbon, TA 12x100mm
Drivetrain
Rear Derailleur
Frameset
Cockpit
Handlebar
Int. N1 HBR 7E3.1/Size 110-400/420/EM02Bm
Seat
Seatpost
Forza Aero // 6mm Offset // 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.44 mm | 1.474 mm | 1.51 mm | 1.539 mm |
| Bottom Bracket Height | 268 mm | 270 mm | 270 mm | 273 mm | 273 mm |
| Front Center | 580 mm | 581 mm | 591 mm | 607 mm | 617 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 66 mm | 57 mm | 53 mm | 53 mm | 50 mm |
| Stack | 525 mm | 550 mm | 575 mm | 601 mm | 625 mm |
| Reach | 375 mm | 382 mm | 390 mm | 398 mm | 406 mm |
| Top Tube Length | 526 mm | 544 mm | 566 mm | 587 mm | 603 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 495 mm | 520 mm | 545 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 127 mm | 150 mm | 174 mm | 204 mm | 228 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 413 mm | 413 mm |
| Wheelbase | 980 mm | 982 mm | 992 mm | 1012 mm | 1022 mm |
| Bottom Bracket Drop | 68 mm | 66 mm | 66 mm | 63 mm | 63 mm |
| Standover Height | 781 mm | 810 mm | 835 mm | 863 mm | 889 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

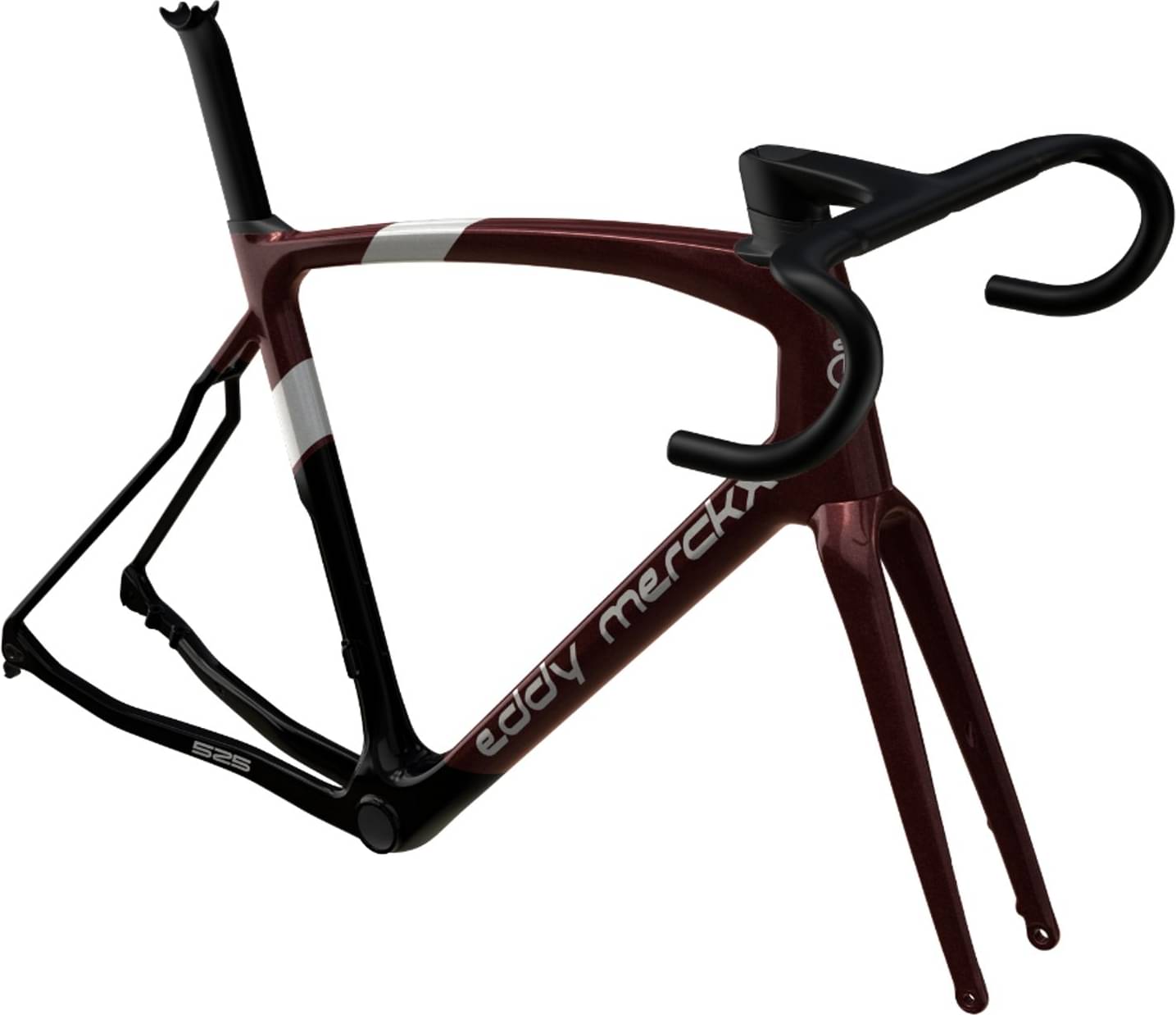

525 Frameset is part of the Eddymerckx 525 model. There are 9 frames that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance frames
If you want an acceptable Endurance frame you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on an Endurance frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 4023$. If we compare this with the average Endurance frame cost we notice that the price is 111.18% more expensive.
Overview of components
Fork material
525 Frameset has a carbon fork, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
