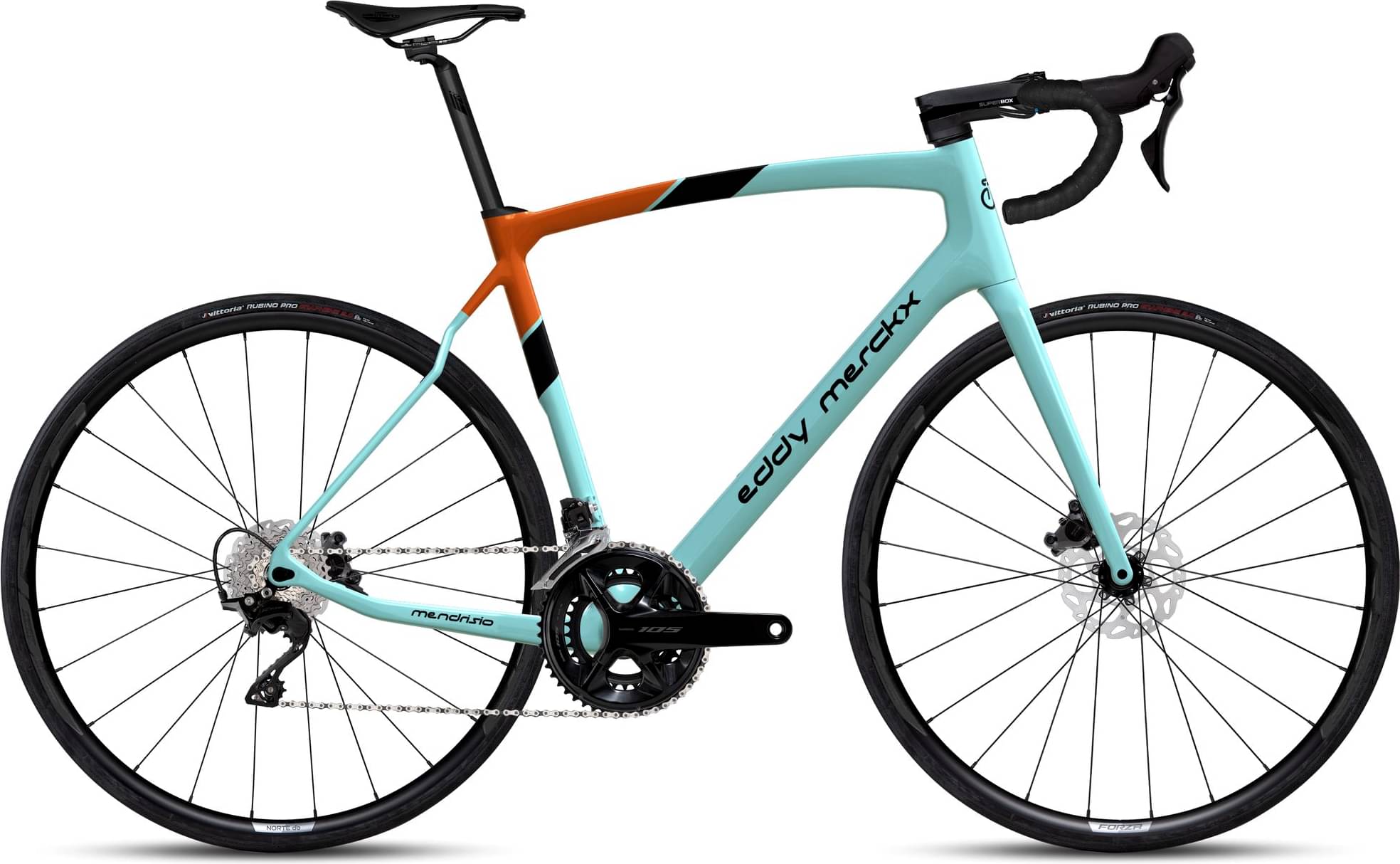

Eddy Merckx Mendrisio Shimano 105 – 2×12 2023
2023 Road
Estimate price |
3,489$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mendrisio Disc 7E7/size M/MEN02Bs
Suspension Fork
San Remo76 Disc 7E4/MEN02Bs
Drivetrain
Rear Derailleur
Shimano 105 12sp
Front Derailleur
Shimano 105
Cassette
Shimano 105// 12s // 11-34
Crank
Shimano 105 // 50/34 // 172mm
Pedals
Not included **
Wheels
Rims
Front: Forza Norte db // TA 12x100mm // Tubeless Ready // Forza 3 Beaufort // 20mm Internal Width // 23mm deep, Rear: Forza Norte db // Shimano HG11 // TA 12x142mm // Clincher // Forza 3 Beaufort // 20mm Internal Width // 23mm deep
Tires
Vittoria Rubino Pro G2.0 // 700x25c //Folding // Full Black
Brakes
Brakes
Hydraulic Disc

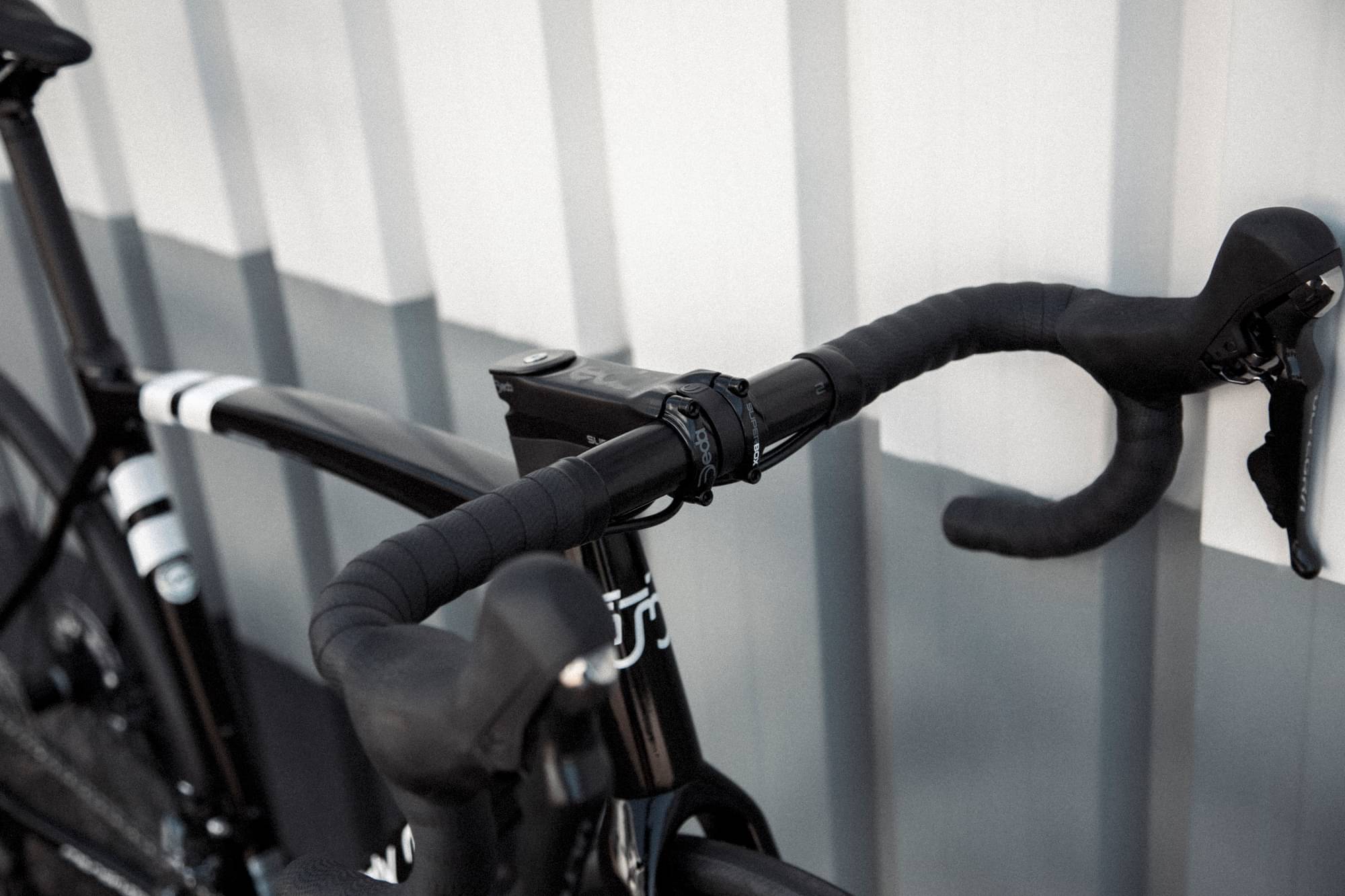

Cockpit
Stem
Deda Super Box // 110 mm // Polish On Black
Handlebar
DEDA Zero2 // 420mm (cc) // Black-on-Black
Seat
Saddle
Selle San Marco Shortfit Wide
Seatpost
Forza Cirrus // Carbon-Alloy // 10mm Offset // 350mm // 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.45 mm | 1.48 mm | 1.52 mm | 1.55 mm |
| Bottom Bracket Height | 268 mm | 270 mm | 270 mm | 273 mm | 273 mm |
| Front Center | 580 mm | 581 mm | 591 mm | 605 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm |
| Trail | 65 mm | 56 mm | 53 mm | 55 mm | 52 mm |
| Stack | 517 mm | 542 mm | 567 mm | 592 mm | 617 mm |
| Reach | 367 mm | 374 mm | 382 mm | 390 mm | 398 mm |
| Top Tube Length | 517 mm | 537 mm | 557 mm | 577 mm | 597 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 485 mm | 510 mm | 535 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 127 mm | 150 mm | 175 mm | 205 mm | 230 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 407 mm | 407 mm |
| Wheelbase | 972 mm | 974 mm | 984 mm | 1004 mm | 1014 mm |
| Bottom Bracket Drop | 68 mm | 66 mm | 66 mm | 63 mm | 63 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Mendrisio Shimano 105 – 2×12 completes the Eddymerckx Mendrisio model. Eddy Merckx released 4 bikes variations of this model so far. You can easily view all of the Eddymerckx Mendrisio bikes models from 2023, here.
Model range prices

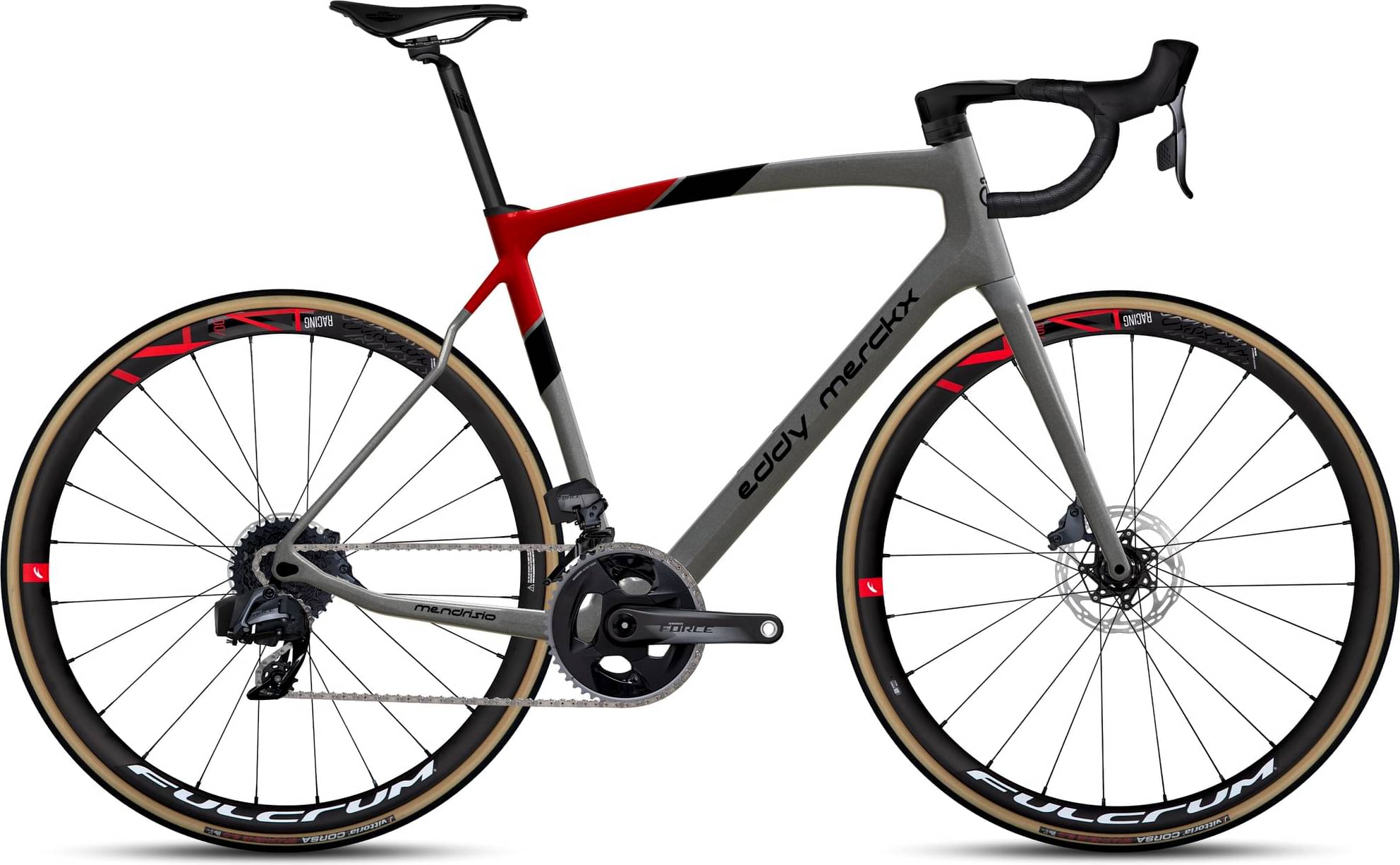

Eddy Merckx Mendrisio Shimano 105 – 2×12 2023 is the cheapest bike model and costs 3176$. Eddy Merckx Mendrisio Sram Force AXS 2x12sp 2023 is the most expensive one and costs 5702$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 3176$. If we compare this with the average Race bike cost we notice that the price is 5.48% smaller.
Mendrisio Shimano 105 – 2×12 components
Fork material
Mendrisio Shimano 105 – 2×12 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Mendrisio Shimano 105 – 2×12 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mendrisio Shimano 105 – 2×12 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
