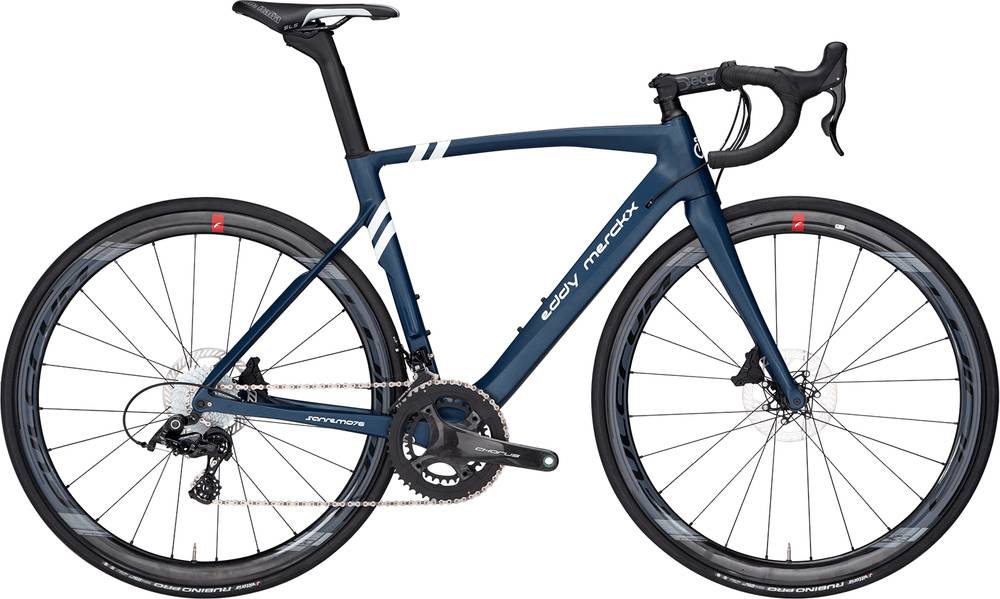

Eddy Merckx SanRemo76 Disc — Shimano Ultegra DB 2019
2019 Road
Estimate price |
3,954$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Fork SunTour -
Groupset Ultegra -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SR76 Unidirectional HM Carbon, 12x142 TA
Suspension Fork
SR 76 Unidirectional HM Carbon 12x142 TA
Drivetrain
Rear Derailleur
Shimano Ultegra DB
Cassette
Shimano Ultegra 11-30
Crank
Shimano Ultegra 52/36
Chain
KMC x11
Wheels
Rims
Fulcrum Racing 400 DB
Tires
Vredestein Fortezza AllWeather
Cockpit
Stem
DEDA Zero 2
Handlebar
DEDA Zero 2
Seat
Saddle
Fizik Antares R5
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 0.71 mm | 0.71 mm | 0.71 mm | 0.7 mm | 0.69 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 267 mm | 267 mm | 268 mm |
| Front Center | 564 mm | 574 mm | 583 mm | 592 mm | 603 mm |
| Rake | -50 mm | -48 mm | -57 mm | -65 mm | -74 mm |
| Trail | 167 mm | 162 mm | 169 mm | 175 mm | 181 mm |
| Stack | 359 mm | 366 mm | 373 mm | 381 mm | 389 mm |
| Reach | 504 mm | 512 mm | 529 mm | 547 mm | 566 mm |
| Top Tube Length | 505 mm | 517 mm | 533 mm | 546 mm | 565 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71.2 ° | 71.6 ° | 72 ° | 72.4 ° | 72.8 ° |
| Head Tube Length | 104 mm | 119 mm | 136 mm | 154 mm | 173 mm |
| Chainstay Length | 400 mm | 400 mm | 401 mm | 401 mm | 402 mm |
| Wheelbase | 954 mm | 964 mm | 974 mm | 983 mm | 995 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 69 mm | 69 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
SanRemo76 Disc — Shimano Ultegra DB belongs to the Eddymerckx Sanremo76 model. 12 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Eddy Merckx SanRemo76 — Shimano Ultegra 2019 has a starting price of 3184$. Eddy Merckx SanRemo76 Disc — Shimano Ultegra Di2 DB 2019 on the other hand is the most expensive at 5308$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 3609$. Comparing this to the average Race bike price, we see that the price is 7.73% more expensive.
Overview of components
Fork
The SanRemo76 Disc — Shimano Ultegra DB comes factory-installed with the SunTour fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on SanRemo76 Disc — Shimano Ultegra DB are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Eddy Merckx SanRemo76 Disc — Shimano Ultegra DB is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
