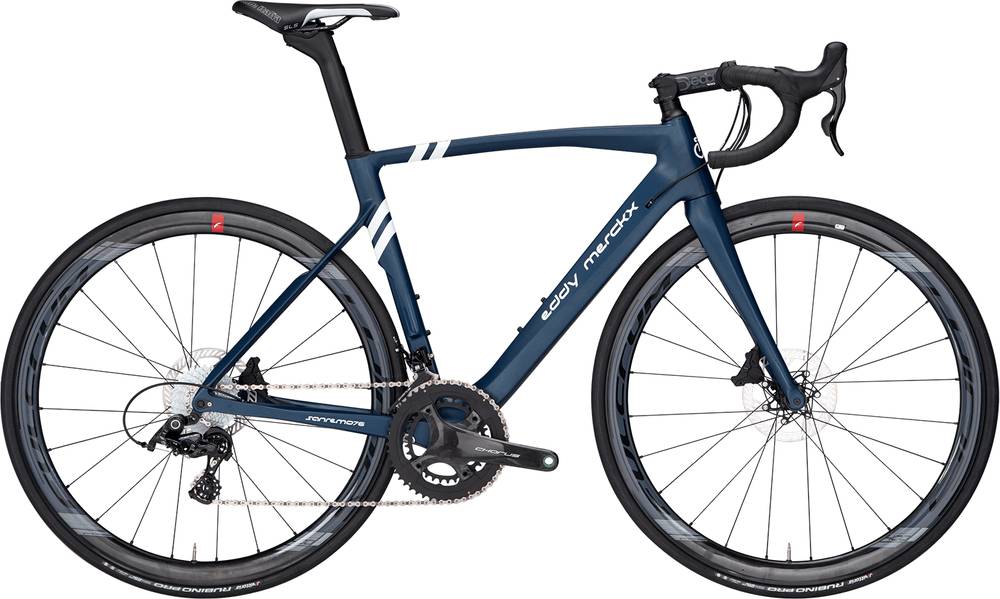

Eddy Merckx SanRemo76 Disc — Shimano Ultegra DB 2020
2020 Road
Estimate price |
3,898$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Fork SunTour -
Groupset Ultegra -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SR76 Unidirectional HM Carbon, 12x142 TA
Suspension Fork
SR 76 Unidirectional HM Carbon 12x142 TA
Drivetrain
Rear Derailleur
Shimano Ultegra DB
Cassette
Shimano Ultegra 11-30
Crank
Shimano Ultegra 52/36
Chain
KMC x11
Wheels
Rims
Fulcrum Racing 400 DB
Tires
Vredestein Fortezza AllWeather
Cockpit
Stem
DEDA Zero 2
Handlebar
DEDA Zero 2
Seat
Saddle
Fizik Antares R5
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.42 mm | 1.44 mm | 1.46 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 267 mm | 267 mm | 268 mm |
| Front Center | 564 mm | 574 mm | 583 mm | 592 mm | 603 mm |
| Rake | 40 mm | 44 mm | 44 mm | 43 mm | 43 mm |
| Trail | 72 mm | 65 mm | 63 mm | 61 mm | 59 mm |
| Stack | 504 mm | 512 mm | 529 mm | 547 mm | 566 mm |
| Reach | 359 mm | 366 mm | 373 mm | 381 mm | 389 mm |
| Top Tube Length | 505 mm | 517 mm | 533 mm | 546 mm | 565 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71.2 ° | 71.6 ° | 72 ° | 72.4 ° | 72.8 ° |
| Head Tube Length | 104 mm | 119 mm | 136 mm | 154 mm | 173 mm |
| Chainstay Length | 400 mm | 400 mm | 401 mm | 401 mm | 402 mm |
| Wheelbase | 954 mm | 964 mm | 974 mm | 983 mm | 995 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 69 mm | 69 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
SanRemo76 Disc — Shimano Ultegra DB is part of the Eddymerckx Sanremo76 model. 12 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Eddy Merckx SanRemo76 — Shimano Ultegra 2020 is the cheapest bike model and costs 3184$. Eddy Merckx SanRemo76 Disc — Shimano Ultegra Di2 DB 2020 is the most expensive one and costs 5308$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3609$. Comparing the average cost of a Race bike to this one, you will see that SanRemo76 Disc — Shimano Ultegra DB price is 7.73% higher.
SanRemo76 Disc — Shimano Ultegra DB components
Fork
The fork installed on this bike is the SunTour model. The travel on this model is mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Eddy Merckx SanRemo76 Disc — Shimano Ultegra DB 2020, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
SanRemo76 Disc — Shimano Ultegra DB comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
