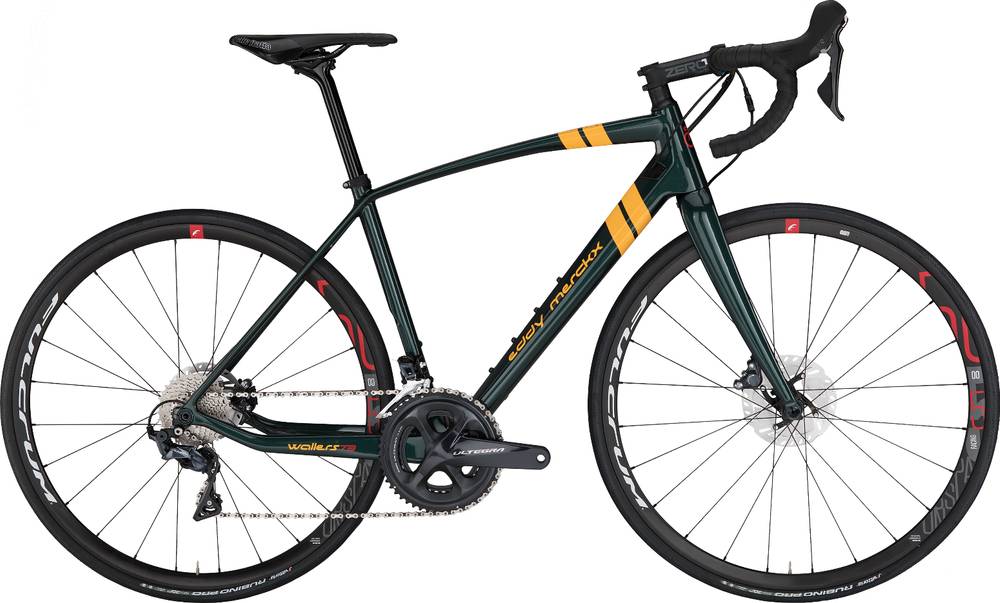

Eddy Merckx Wallers73 Disc — Shimano Ultegra Di2 DB 2020
2020 Road
Estimate price |
4,816$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
WA73 Unidirectional HM Carbon, 12x142 TA
Suspension Fork
WA 73 Unidirectional HM Carbon 12x142 TA
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 DB
Cassette
Shimano Ultegra 11-30
Crank
Shimano Ultegra 52/36
Chain
KMC x11
Wheels
Rims
Fulcrum Racing 400 DB
Tires
Vredestein Fortezza AllWeather
Cockpit
Stem
DEDA Zero 100
Handlebar
DEDA Zero 100
Seat
Saddle
Fizik Antares R5
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.5 mm | 1.54 mm | 1.57 mm |
| Bottom Bracket Height | 266 mm | 267 mm | 267 mm | 267 mm | 268 mm |
| Front Center | 576 mm | 584 mm | 591 mm | 600 mm | 605 mm |
| Rake | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 65 mm | 62 mm | 59 mm | 56 mm |
| Stack | 529 mm | 547 mm | 568 mm | 593 mm | 612 mm |
| Reach | 369 mm | 374 mm | 379 mm | 385 mm | 389 mm |
| Top Tube Length | 522 mm | 532 mm | 548 mm | 566 mm | 576 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 445 mm | 475 mm | 505 mm | 535 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 105 mm | 124 mm | 144 mm | 168 mm | 187 mm |
| Chainstay Length | 426 mm | 426 mm | 427 mm | 428 mm | 428 mm |
| Wheelbase | 992 mm | 1000 mm | 1008 mm | 1018 mm | 1024 mm |
| Bottom Bracket Drop | 70 mm | 69 mm | 69 mm | 69 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Wallers73 Disc — Shimano Ultegra Di2 DB belongs to the Eddymerckx Wallers73 model. Eddy Merckx released 4 bikes variations of this model so far. Take a sneak peek at all Eddymerckx Wallers73 bikes models from 2020, by clicking here.
Model range prices
Eddy Merckx Wallers73 Disc — Shimano Ultegra DB 2020 is the most affordable bike of this model and has a price of 3609$. On the other hand, Eddy Merckx Wallers73 Disc — Shimano Ultegra Di2 DB 2020, is the most expensive and costs 4458$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Eddy Merckx Wallers73 Disc — Shimano Ultegra Di2 DB price was 4458$. If we compare this with the average Race bike cost we notice that the price is 33.07% higher.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Eddy Merckx Wallers73 Disc — Shimano Ultegra Di2 DB 2020, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Wallers73 Disc — Shimano Ultegra Di2 DB has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Wallers73 Disc — Shimano Ultegra Di2 DB comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
