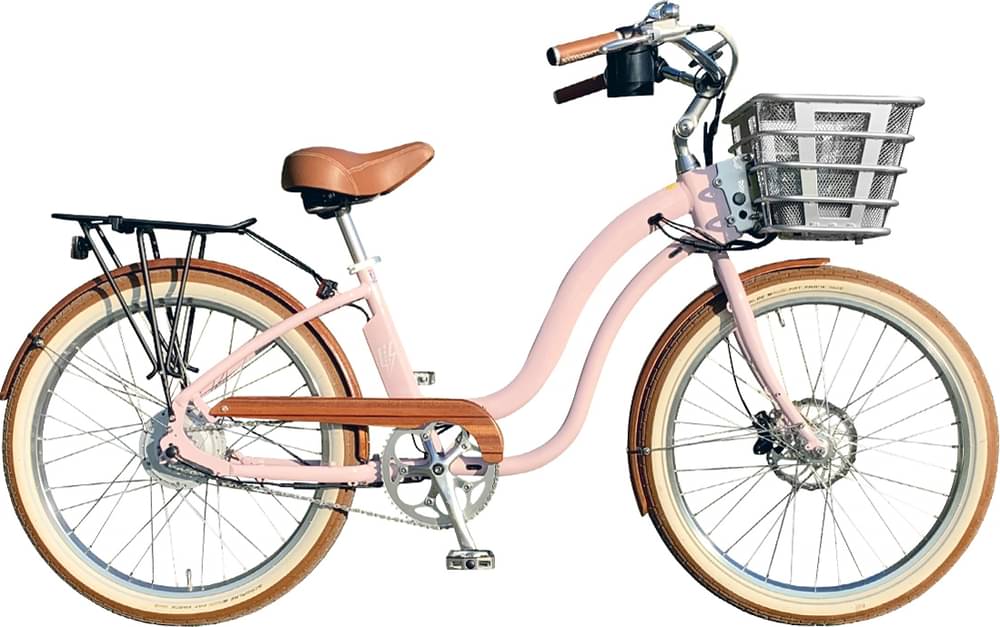

Electric Bike Company Model Y 2020
2020 E-bike
Estimate price |
2,784$
Weight | 26.39 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Groupset Shimano -
Suspension Rigid -
Motor 500W 60Nm hub-drive -
Battery Weight: 5.9 lbs (2.67 kg), Brand: Samsung 35E 18650 Cells, Voltage: 48 volts, Amp Hours: 10.5 ah (Optional 20ah Upgrade), Watt Hours: 504 wh (Optional 960wh Upgrade), Chemistry: Lithium-ion -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Alloy
Suspension Fork
Rigid Steel, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Optional Shimano Triggers on Right (One-Way High, Three-Shift Low)
Cassette
1 Single Speed, 18 Tooth Sprocket, (Optional Shimano Altus Derailleur with 14 to 28 Tooth Freewheel)
Crank
Aluminum Alloy, 170mm Crank Arms, Square Tapered Spindle, 56 Tooth Aluminum Alloy Chainring (Aluminum Alloy Guard Included for 7-Speed Upgrade)
Pedals
Wellgo Aluminum Alloy Platform with Rubber Tread
Wheels
Rims
JetSet, Aluminum Alloy, Double Wall, 36 Hole, 40mm Outer Width
Spokes
Stainless Steel, 13 Gauge, Silver or Black with Brass Nipples
Tires
Schwalbe Fat Frank, 26" x 2.35" (60-559)
Cockpit
Stem
Aluminum Alloy Quill, Adjustable Angle, 0° to 60°, Adjustable Height, 100mm Length, 25.4mm Clamp Diameter
Handlebar
Steel, Oversized Cruiser Style, 710mm Width
Grips
Padded Stitched, Inner and Outer Lock Rings
Headset
Integrated Cartridge Bearing, Threaded Quill, Straight 1-1/8" Diameter
Seat
Saddle
Grand Star, Oversized Comfort with Rubber Bumpers
Seatpost
Aluminum Alloy with Tapered Top, Separate Single Bolt Saddle Clamp
Motor & Battery
Motor
Weight: 8 lbs (3.62 kg), Brand: MXUS XF15R (48 Volt), Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Peak Output: 1000 watts, Torque: 60 Newton meters
Battery
Weight: 5.9 lbs (2.67 kg), Brand: Samsung 35E 18650 Cells, Voltage: 48 volts, Amp Hours: 10.5 ah (Optional 20ah Upgrade), Watt Hours: 504 wh (Optional 960wh Upgrade), Chemistry: Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 27cm |
|---|---|
| Wheels | 26" |
| Rider Min Height | 120 cm |
About this model
Model Y belongs to the Electricbikecompany E Model model. Electric Bike Company launched 10 e-bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Electric Bike Company Model R 2020 is the most economical model, with a starting price of 2199$. Electric Bike Company Model Y 2020 on the other hand costs 2784$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for General Urban e-bikes
Our math shows that the average cost of a dependable General Urban e-bike is 2098$. However, this doesn’t mean that if you spend less money on a General Urban e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2020 and its price was 2784$. If we compare this with the average General Urban e-bike cost we notice that the price is 32.7% more expensive.
General Urban e-bikes average weight
If we make a quick analysis of the average weight of a General Urban e-bike, we get 24.08 kg (53.09 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Model Y weighs 26.39 kg (58.18 lbs) and is a bit heavier than the average. In conclusion, the average General Urban e-bike weighs 9.59% less than Model Y.
Model Y components
Fork material
Model Y has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
When leaving the production line, the Model Y model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Electric Bike Company Model Y has Rim brakes installed. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
