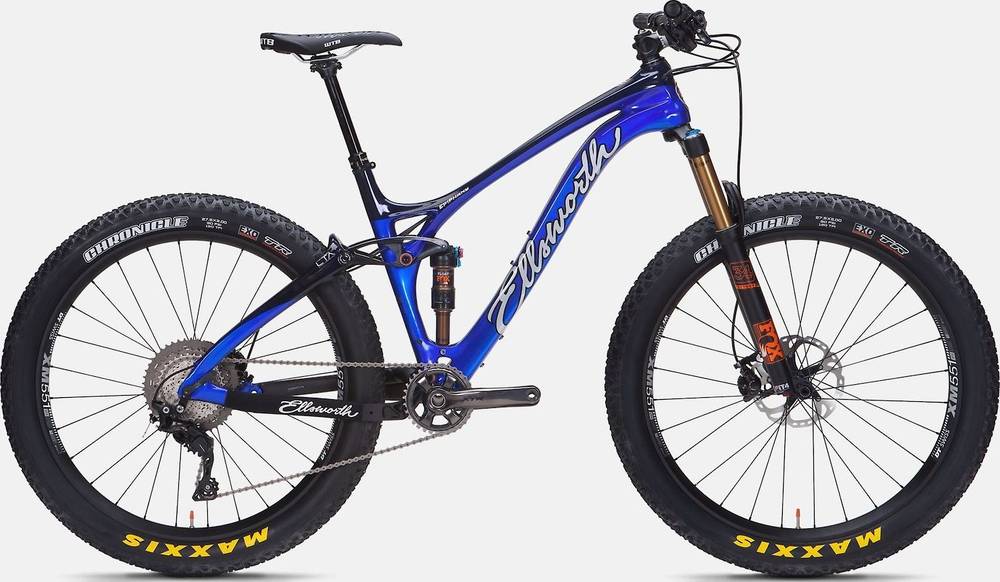

Ellsworth Epiphany Convert 27.5″+ Shimano XT 2018
2018 Mountain
Estimate price |
7,920$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Float Factory 29
Rear Shock
FOX Float DPS Factory
Drivetrain
Rear Derailleur
Shimano XT 8000 GS
Front Derailleur
N/A
Shift Levers
Shimano XT 8000, 11-speed
Cassette
Shimano XT, 11-46 tooth, 11-speed
Crank
Shimano XT 8000, Boost, 175mm length
Bottom Bracket
Shimano BSA, threaded
Chain
Shimano HG-700
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1900
Rear Hub
DT Swiss M1900
Rims
DT Swiss M1900, 35mm, Optional wheelset upgrade: Reynolds 27.5 Plus
Spokes
DT Swiss
Tires
Maxxis Ikon, 2.8"
Brakes
Brakes
Shimano XT 8000 with Shimano Ice-Tech 180mm front/160mm rear rotors
Brake Levers
Shimano XT 8000
Cockpit
Stem
Race Face Turbine Basic, 80mm x 6mm, 31.8mm
Handlebar
Race Face Turbine, 725mm width, 31.8mm diameter, 20mm rise
Grips
Lizard Skin Charger EHB
Headset
Cane Creek 10 Series, ZS44/56
Seat
Saddle
WTB Volt Pro
Seatpost
FOX Transfer Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.54 mm | 1.45 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm |
| Stack | 618 mm | 631 mm | 632 mm |
| Reach | 391 mm | 411 mm | 437 mm |
| Top Tube Length | 591 mm | 616 mm | 642 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 108 mm | 122 mm | 123 mm |
| Chainstay Length | 472 mm | 472 mm | 468 mm |
| Wheelbase | 1128 mm | 1154 mm | 1179 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm |
| Standover Height | 762 mm | 774 mm | 783 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Epiphany Convert 27.5″+ Shimano XT belongs to the Ellsworth Epiphany model. Ellsworth launched 16 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Ellsworth Epiphany Convert Alloy SRAM GX 2018 is the most affordable bike of this model and has a price of 6320$. On the other hand, Ellsworth Epiphany Convert 27.5″+ SRAM XX1 Eagle 2018, is the most expensive and costs 9820$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Ellsworth released this model in 2018, its price was 7920$. If we compare this with the average Trail bike cost we notice that the price is 186.75% more expensive.
Overview of components
Fork
The Epiphany Convert 27.5″+ Shimano XT comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the FOX Float DPS Factory model, with a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Ellsworth Epiphany Convert 27.5″+ Shimano XT 2018, has a 27.5″ carbon model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Epiphany Convert 27.5″+ Shimano XT comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Epiphany Convert 27.5″+ Shimano XT. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
