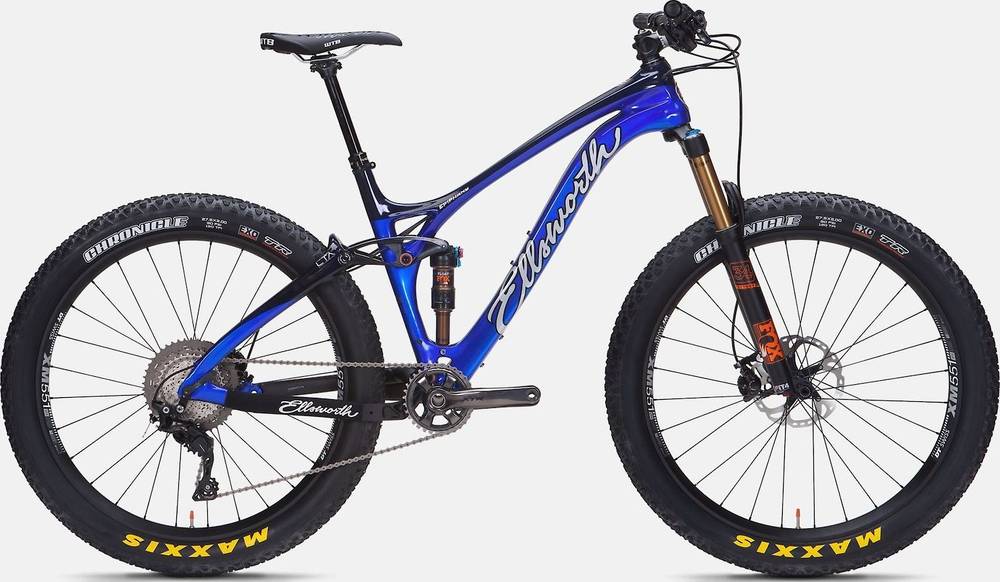

Ellsworth Epiphany Convert 27.5″+ Shimano XTR 2018
2018 Mountain
Estimate price |
9,320$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Float Factory 29
Rear Shock
FOX Float DPS Factory
Drivetrain
Rear Derailleur
Shimano XTR 9000
Front Derailleur
N/A
Shift Levers
Shimano XTR 9000, 11-speed
Cassette
Shimano XTR, 11-42 tooth, 11-speed
Crank
Shimano XTR 9000, Boost, 175mm
Bottom Bracket
Shimano BSA, threaded
Chain
Shimano XTR 9000
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1900
Rear Hub
DT Swiss M1900
Rims
DT Swiss M1900, 35mm, Optional wheelset upgrade: Reynolds 27.5 Plus
Spokes
DT Swiss
Tires
Maxxis Ikon, 2.8"
Brakes
Brakes
Shimano XTR 9020 with Shimano Ice-Tech 180mm front/160mm rear rotors
Brake Levers
Shimano XTR 9020
Cockpit
Stem
Race Face Turbine, 70mm x 6mm, 31.8mm
Handlebar
Race Face Next, 725mm width, 31.8mm diameter, 20mm rise
Grips
Lizard Skin Charger EHB
Headset
Cane Creek 10 Series, ZS44/56
Seat
Saddle
WTB SL8 Team-Ti
Seatpost
FOX Transfer Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.54 mm | 1.45 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm |
| Stack | 618 mm | 631 mm | 632 mm |
| Reach | 391 mm | 411 mm | 437 mm |
| Top Tube Length | 591 mm | 616 mm | 642 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 108 mm | 122 mm | 123 mm |
| Chainstay Length | 472 mm | 472 mm | 468 mm |
| Wheelbase | 1128 mm | 1154 mm | 1179 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm |
| Standover Height | 762 mm | 774 mm | 783 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Epiphany Convert 27.5″+ Shimano XTR is part of the Ellsworth Epiphany model. Ellsworth released 16 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Ellsworth Epiphany Convert Alloy SRAM GX 2018 is the cheapest bike model and costs 6320$. Ellsworth Epiphany Convert 27.5″+ SRAM XX1 Eagle 2018 is the most expensive one and costs 9820$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2018 and its price was 9320$. In conclusion, this bike price is 237.44% higher than the price of the average Trail bike.
Overview of components
Fork
Ellsworth Epiphany Convert 27.5″+ Shimano XTR 2018 bike is equipped with the Fox Factory Float 34 fork, and has 130mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the FOX Float DPS Factory model, with a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Epiphany Convert 27.5″+ Shimano XTR 2018 bike is equipped with 27.5″ carbon wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Ellsworth model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
