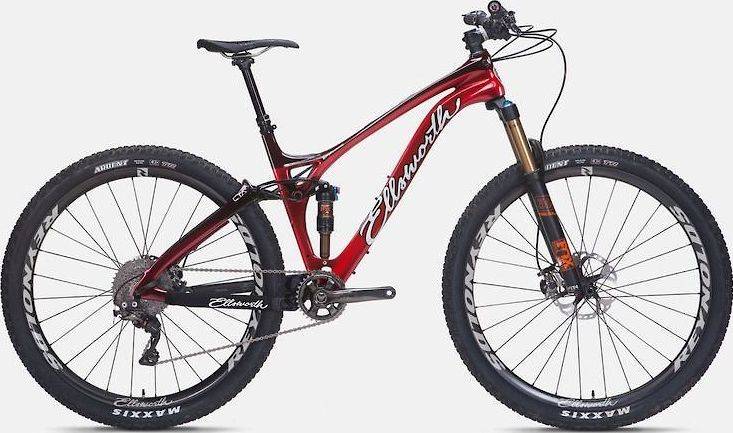

Ellsworth Epiphany Convert 27.5″+ SRAM GX Eagle 2018
2018 Mountain
Estimate price |
6,920$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Float Factory 29
Rear Shock
FOX Float DPS Factory
Drivetrain
Rear Derailleur
SRAM GX Eagle
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle, 11-50 tooth, 12-speed
Crank
SRAM GX, Boost, 175mm length
Bottom Bracket
SRAM GXP, threaded
Chain
SRAM GX Eagle
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1900
Rear Hub
DT Swiss M1900
Rims
DT Swiss M1900, 35mm, Optional wheelset upgrade: Reynolds 27.5 Plus
Spokes
DT Swiss
Tires
Maxxis Ikon, 2.8"
Brakes
Brakes
Shimano SLX 7000 with Shimano SM-RT70 180mm front/160mm rear rotors
Brake Levers
Shimano SLX 7000
Cockpit
Stem
Race Face Evolve, 70mm x 6mm, 31.8mm clamp
Handlebar
Race Face Evolve, 725mm width, 31.8mm diameter, 20mm rise
Grips
Lizard Skin Charger
Headset
Cane Creek 10 Series, ZS44/56
Seat
Saddle
WTB Volt Pro
Seatpost
FOX Transfer Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.54 mm | 1.45 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm |
| Stack | 618 mm | 631 mm | 632 mm |
| Reach | 391 mm | 411 mm | 437 mm |
| Top Tube Length | 591 mm | 616 mm | 642 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 108 mm | 122 mm | 123 mm |
| Chainstay Length | 472 mm | 472 mm | 468 mm |
| Wheelbase | 1128 mm | 1154 mm | 1179 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm |
| Standover Height | 762 mm | 774 mm | 783 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Epiphany Convert 27.5″+ SRAM GX Eagle belongs to the Ellsworth Epiphany model. Ellsworth released 16 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Ellsworth Epiphany Convert Alloy SRAM GX 2018 is the cheapest bike model and costs 6320$. Ellsworth Epiphany Convert 27.5″+ SRAM XX1 Eagle 2018 is the most expensive one and costs 9820$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2018 for 6920$. Doing a quick comparison, we notice that Epiphany Convert 27.5″+ SRAM GX Eagle price is 150.54% more expensive than the average cost of a Trail bike.
Epiphany Convert 27.5″+ SRAM GX Eagle components
Fork
Ellsworth Epiphany Convert 27.5″+ SRAM GX Eagle 2018 bike is equipped with the Fox Factory Float 34 fork, and has 130mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Float DPS Factory rear shock model, which has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Epiphany Convert 27.5″+ SRAM GX Eagle bike is equipped with the 27.5″ carbon model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Ellsworth Epiphany Convert 27.5″+ SRAM GX Eagle bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Epiphany Convert 27.5″+ SRAM GX Eagle. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
