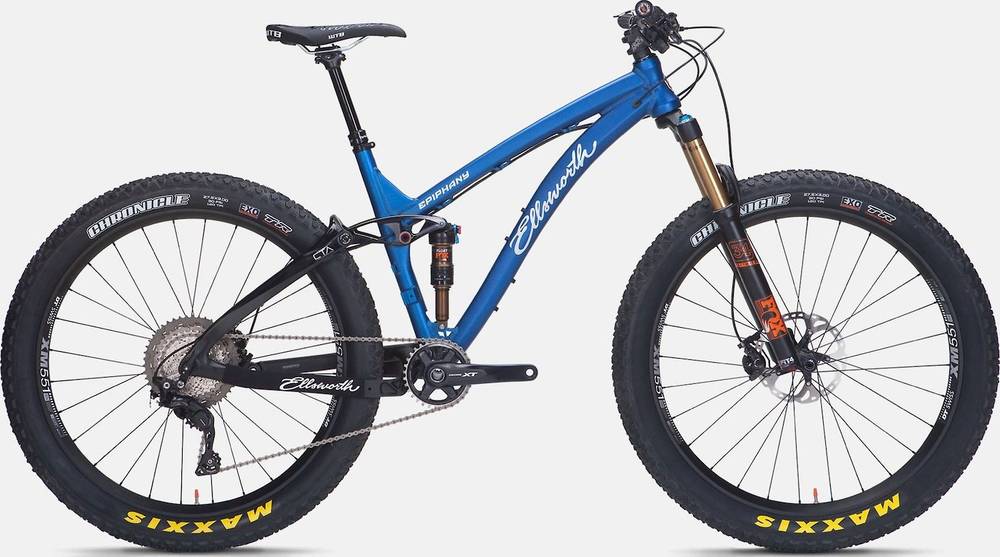

Ellsworth Epiphany Convert Alloy Shimano XT 2018
2018 Mountain
Estimate price |
7,320$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Float Factory 29
Rear Shock
FOX Float DPS Factory
Drivetrain
Rear Derailleur
Shimano XT 8000 GS
Front Derailleur
N/A
Shift Levers
Shimano XT 8000, 11-speed
Cassette
Shimano XT, 11-46 tooth, 11-speed
Crank
Shimano XT 8000, Boost, 175mm length
Bottom Bracket
Shimano BSA, threaded
Chain
Shimano HG-700
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1700
Rear Hub
DT Swiss M1700
Rims
DT Swiss M1700, 35mm, Optional wheelset upgrade: Reynolds 27.5 Plus
Spokes
DT Swiss
Tires
Maxxis Ikon, 2.8"
Brakes
Brakes
Shimano XT 8000 with Shimano Ice-Tech 180mm front/160mm rear rotors
Brake Levers
Shimano XT 8000
Cockpit
Stem
Race Face Turbine Basic, 80mm x 6mm, 31.8mm
Handlebar
Race Face Turbine, 725mm width, 31.8mm diameter, 20mm rise
Grips
Lizard Skin Charger EHB
Headset
Cane Creek 10 Series, ZS44/56
Seat
Saddle
WTB Volt Pro
Seatpost
FOX Transfer Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm | 1.45 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm |
| Stack | 601 mm | 603 mm | 619 mm |
| Reach | 390 mm | 407 mm | 428 mm |
| Top Tube Length | 593 mm | 608 mm | 634 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 108 mm | 108 mm | 130 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1167 mm | 1185 mm | 1210 mm |
| Bottom Bracket Drop | 4 mm | 4 mm | 4 mm |
| Standover Height | 762 mm | 774 mm | 783 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Epiphany Convert Alloy Shimano XT is part of the Ellsworth Epiphany model. There are 16 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Ellsworth Epiphany Convert Alloy SRAM GX 2018 is the most affordable bike of this model and has a price of 6320$. On the other hand, Ellsworth Epiphany Convert 27.5″+ SRAM XX1 Eagle 2018, is the most expensive and costs 9820$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2018 and its price was 7320$. Comparing the average cost of a Trail bike to this one, you will see that Epiphany Convert Alloy Shimano XT price is 165.03% more expensive.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the FOX Float DPS Factory model, with a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Epiphany Convert Alloy Shimano XT model has 27.5″ carbon wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Epiphany Convert Alloy Shimano XT comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Epiphany Convert Alloy Shimano XT. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
