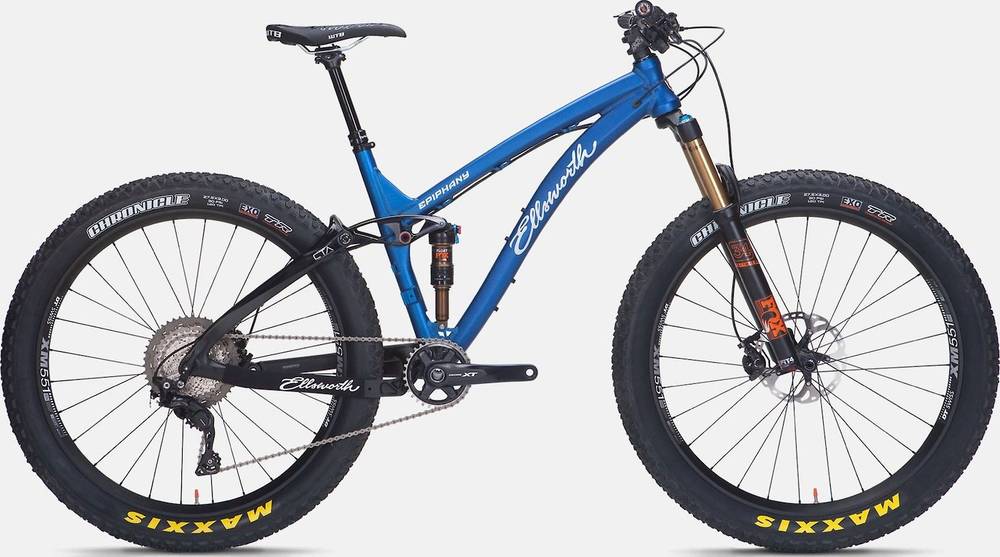

Ellsworth Epiphany Convert Alloy SRAM XX1 Eagle 2018
2018 Mountain
Estimate price |
9,220$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Float Factory 29
Rear Shock
FOX Float DPS Factory
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XX1 Eagle, 10-50 tooth, 12-speed, gold
Crank
SRAM XX1 Eagle, Boost, 175mm
Bottom Bracket
SRAM GXP, threaded
Chain
SRAM XX1 Eagle, gold
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1700
Rear Hub
DT Swiss M1700
Rims
DT Swiss M1700, 35mm, Optional wheelset upgrade: Reynolds 27.5 Plus
Spokes
DT Swiss
Tires
Maxxis Ikon, 2.8"
Brakes
Brakes
Shimano XTR 9020 with Shimano Ice-Tech 180mm front/160mm rear rotors
Brake Levers
Shimano XTR 9020
Cockpit
Stem
Race Face Turbine, 70mm x 6mm, 31.8mm
Handlebar
Race Face Next, 725mm width, 31.8mm diameter, 20mm rise
Grips
Lizard Skin Charger EHB
Headset
Cane Creek 10 Series, ZS44/56
Seat
Saddle
WTB SL8 Team-Ti
Seatpost
FOX Transfer Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm | 1.45 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm |
| Stack | 601 mm | 603 mm | 619 mm |
| Reach | 390 mm | 407 mm | 428 mm |
| Top Tube Length | 593 mm | 608 mm | 634 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 108 mm | 108 mm | 130 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1167 mm | 1185 mm | 1210 mm |
| Bottom Bracket Drop | 4 mm | 4 mm | 4 mm |
| Standover Height | 762 mm | 774 mm | 783 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Epiphany Convert Alloy SRAM XX1 Eagle is an Ellsworth Epiphany model. Ellsworth launched 16 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Ellsworth Epiphany Convert Alloy SRAM GX 2018 is the cheapest bike model and costs 6320$. Ellsworth Epiphany Convert 27.5″+ SRAM XX1 Eagle 2018 is the most expensive one and costs 9820$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Ellsworth Epiphany Convert Alloy SRAM XX1 Eagle price was 9220$. If we compare this with the average Trail bike cost we notice that the price is 233.82% more expensive.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the FOX Float DPS Factory rear shock model, which has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Epiphany Convert Alloy SRAM XX1 Eagle bike is equipped with the 27.5″ carbon model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Ellsworth Epiphany Convert Alloy SRAM XX1 Eagle bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
