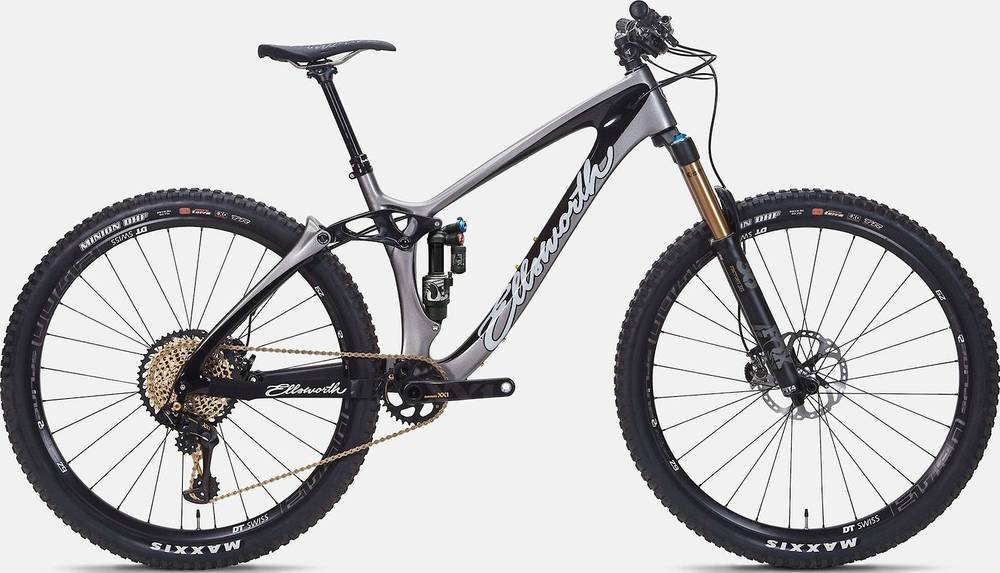

Ellsworth Evolution Convert 27.5″+ SRAM XX1 Eagle 2018
2018 Mountain
Estimate price |
9,924$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Factory 36 Series
Rear Shock
FOX Performance X2
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XX1 Eagle, 10-50 tooth, 12-speed, gold
Crank
SRAM XX1, Boost, 175mm length
Bottom Bracket
SRAM GXP, threaded
Chain
SRAM XX1 Eagle, gold
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1700
Rear Hub
DT Swiss M1700
Rims
DT Swiss M1700, 35mm, Optional wheelset upgrade: Reynolds 29 Trail
Spokes
DT Swiss
Tires
Maxxis Minion DHF, 2.8"
Brakes
Brakes
Shimano XTR 9020 with Shimano Ice-Tech 180mm rotors
Brake Levers
Shimano XTR 9020
Cockpit
Stem
Race Face Turbine Basic
Handlebar
Race Face SixC Carbon 35mm, 20mm rise
Grips
Lizard Skin Charger EHB
Headset
Cane Creek 10 Series, ZS44/56
Seat
Saddle
WTB SL8 Team-Ti
Seatpost
FOX Transfer Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Stack | 607 mm | 623 mm | 640 mm |
| Reach | 424 mm | 453 mm | 484 mm |
| Top Tube Length | 594 mm | 636 mm | 678 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 129 mm | 143 mm | 157 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1188 mm | 1224 mm | 1259 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm |
| Standover Height | 737 mm | 746 mm | 754 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Evolution Convert 27.5″+ SRAM XX1 Eagle is part of the Ellsworth Evolution model. There are 10 bikes that carry this model name. You can easily view all of the Ellsworth Evolution bikes models from 2018, here.
Model range prices
Ellsworth Evolution Convert 29″ SRAM GX Eagle 2018 is the most economical model, with a starting price of 7425$. Ellsworth Evolution Convert 27.5″+ SRAM XX1 Eagle 2018 on the other hand costs 9924$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9924$. If we compare this with the average Trail bike cost we notice that the price is 259.3% higher.
Evolution Convert 27.5″+ SRAM XX1 Eagle components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Evolution Convert 27.5″+ SRAM XX1 Eagle has a rear shock with a travel of 140mm. The model FOX Performance X2 is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Evolution Convert 27.5″+ SRAM XX1 Eagle model has 27.5″ carbon wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Ellsworth Evolution Convert 27.5″+ SRAM XX1 Eagle bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Evolution Convert 27.5″+ SRAM XX1 Eagle. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
