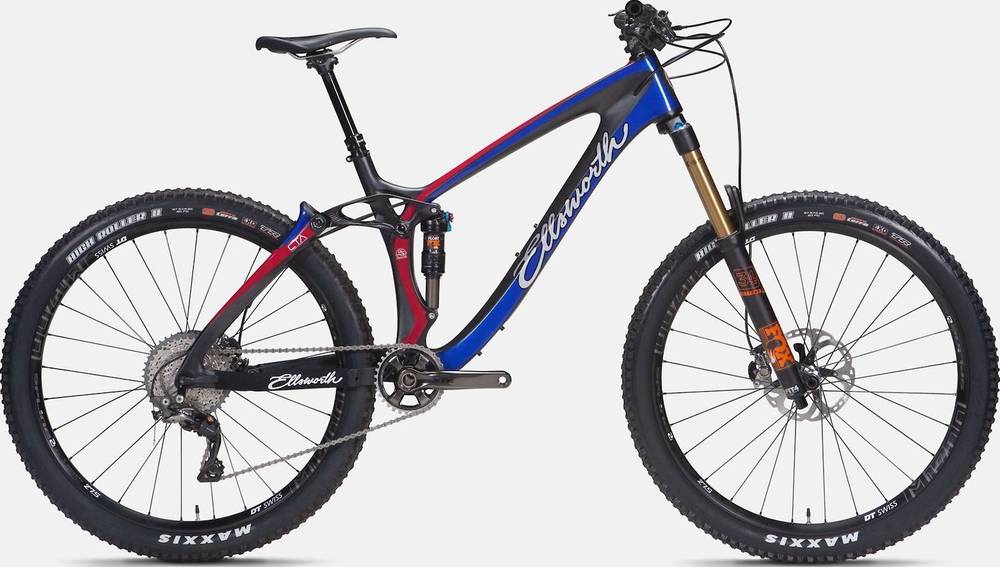

Ellsworth Rogue Forty Shimano XT 2018
2018 Mountain
Estimate price |
7,920$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Float Factory
Rear Shock
FOX Float DPS Factory
Drivetrain
Rear Derailleur
Shimano XT 8000 GS
Front Derailleur
N/A
Shift Levers
Shimano XT 8000, 11-speed
Cassette
Shimano XT, 11-46 tooth, 11-speed
Crank
Shimano XT 8000, Boost, 175mm length
Bottom Bracket
Shimano BSA, threaded
Chain
Shimano HG-700
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1700, Boost front and rear
Rear Hub
DT Swiss M1700, Boost front and rear
Rims
DT Swiss M1700, 30mm, Optional wheelset upgrade: Reynolds 27.5 Enduro
Spokes
DT Swiss
Tires
Maxxis High Roller II, 2.3"
Brakes
Brakes
Shimano XT 8000 with Shimano Ice-Tech 180mm front/160mm rear rotors
Brake Levers
Shimano XT 8000
Cockpit
Stem
Race Face Turbine Basic, 35mm clamp
Handlebar
Race Face Atlas 35mm, 20mm rise
Grips
Lizard Skin Charger EHB
Headset
Cane Creek 10 Series, ZS44/56
Seat
Saddle
WTB Volt Pro
Seatpost
FOX Transfer Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Stack | 596 mm | 612 mm | 629 mm |
| Reach | 439 mm | 469 mm | 497 mm |
| Top Tube Length | 597 mm | 631 mm | 664 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 129 mm | 143 mm | 157 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1159 mm | 1197 mm | 1232 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm |
| Standover Height | 696 mm | 723 mm | 750 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Rogue Forty Shimano XT is part of the Ellsworth Rogue model. There are 10 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Ellsworth Rogue Forty SRAM GX 2018 has a starting price of 7120$. Ellsworth Rogue Sixty SRAM XX1 Eagle 2018 on the other hand is the most expensive at 9924$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2018 for 7920$. Doing a quick comparison, we notice that Rogue Forty Shimano XT price is 186.75% higher than the average cost of a Trail bike.
Overview of components
Fork
The Rogue Forty Shimano XT comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Ellsworth Rogue Forty Shimano XT bike has the FOX Float DPS Factory model installed, and has a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Rogue Forty Shimano XT model has 27.5″ carbon wheels. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Rogue Forty Shimano XT has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Ellsworth Rogue Forty Shimano XT bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Ellsworth model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
