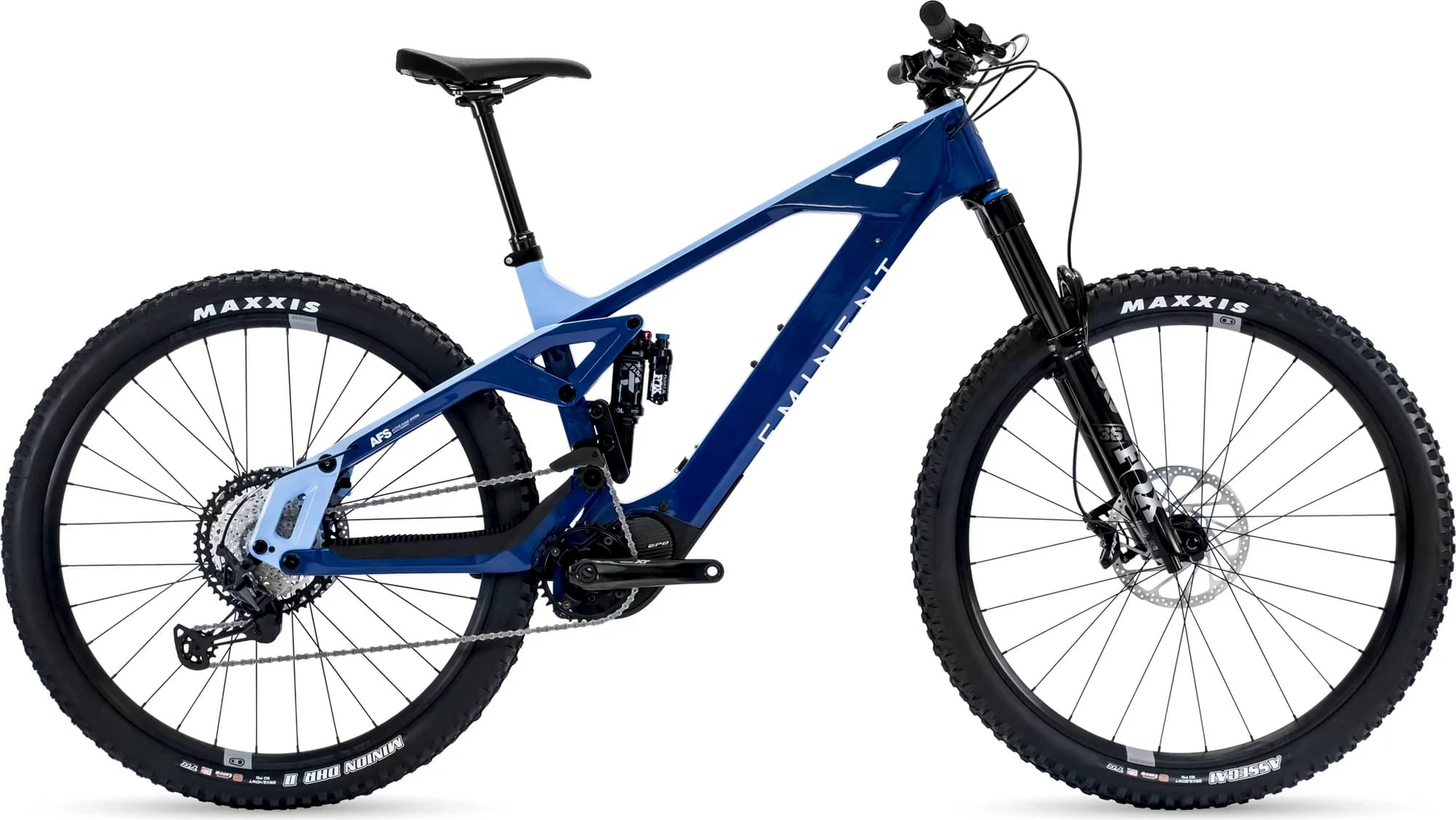

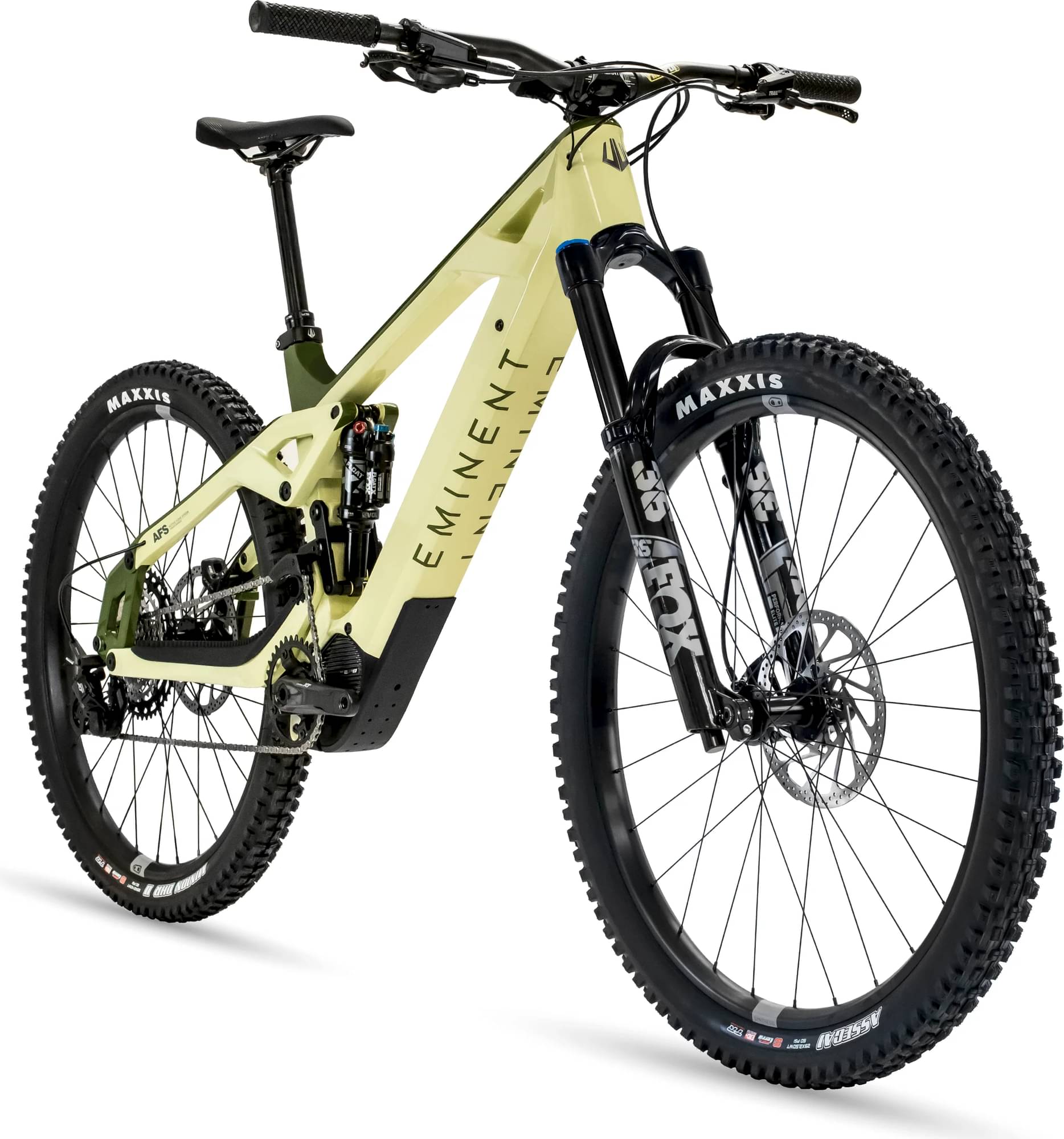

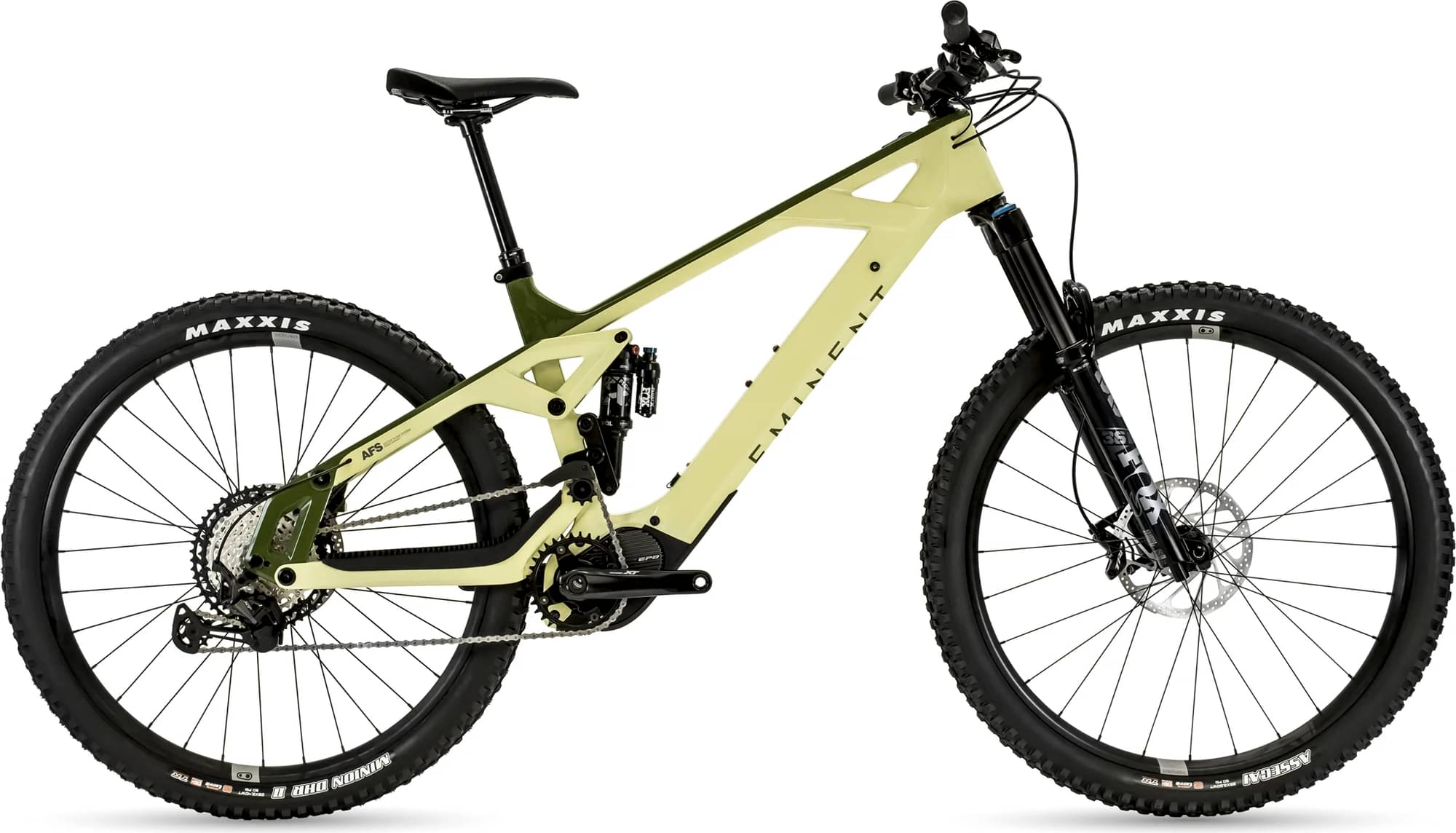

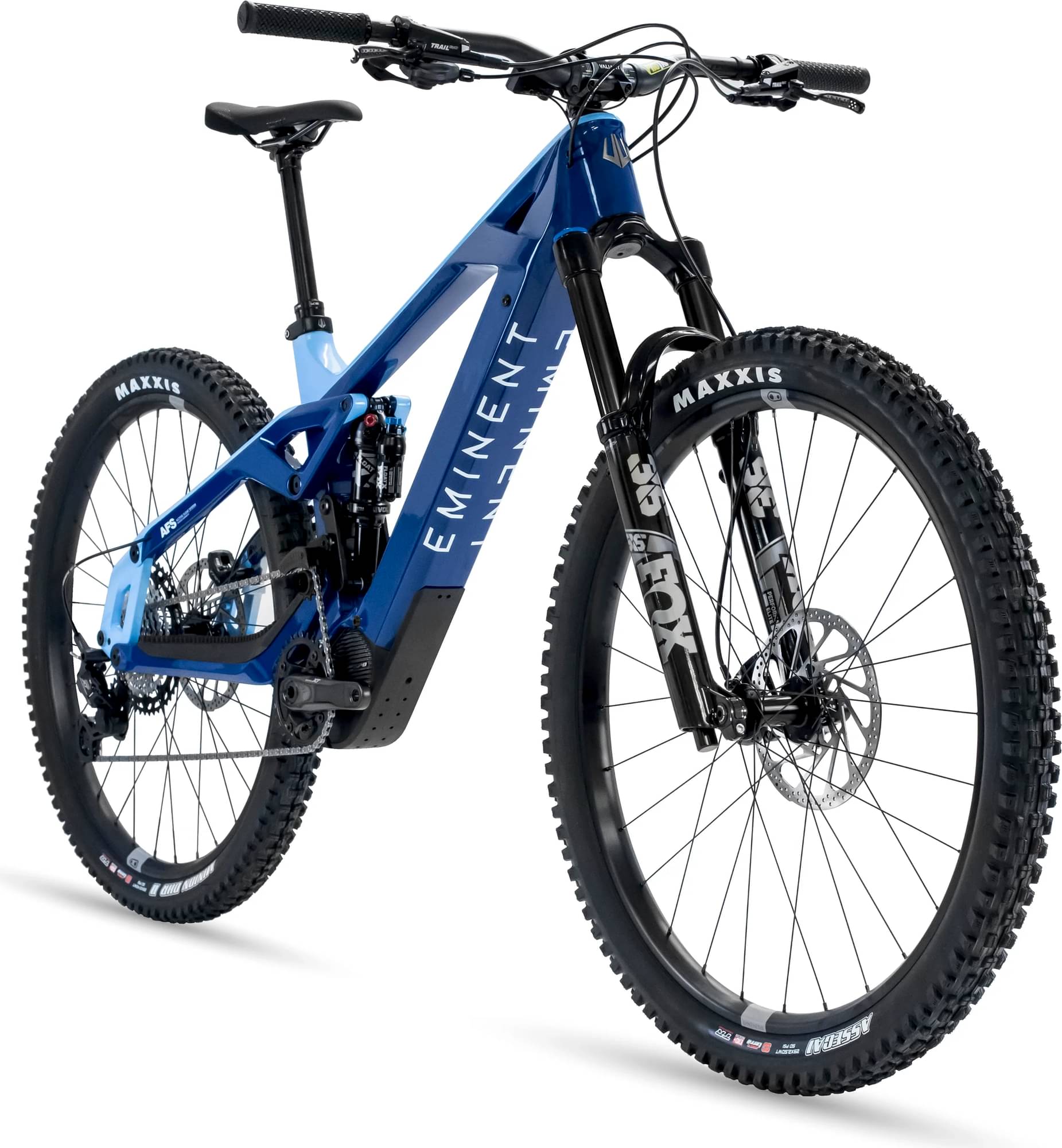

Eminent Drive LT Advanced 2022
2022 E-bike
Estimate price |
8,399$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 140mm -
Fork Fox Performance Elite Float 38
-
Groupset XT -
Suspension Full -
Motor Shimano 504W 85Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Eminent Drive (140mm)
Suspension Fork
Fox 38 Performance Elite Grip2 170, 44mm offset
Rear Shock
Fox Performance Elite Float X 230 x 60
Drivetrain
Rear Derailleur
XT M8100 - 12 spd rear derailleur
Shift Levers
XT M8100 - 12 spd shifter
Cassette
XT M8100 - 12 spd cassette

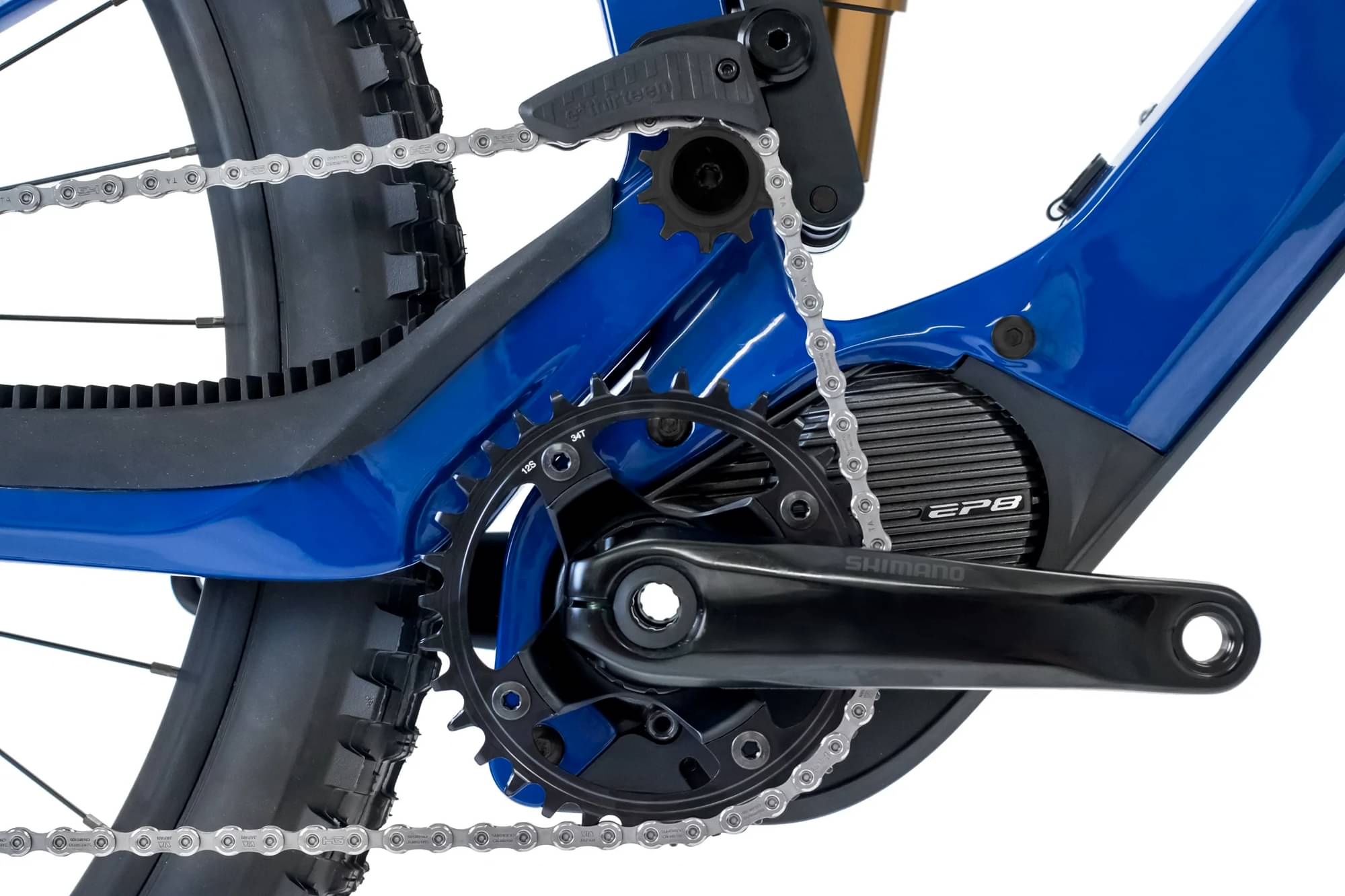

Crank
XT M8100 - Front Crank w/34T chainring
Chain
XT M8100 - 12 spd chain
Chain Guide
Integrated Top Guide
Wheels
Rims
Sun Ringle Duroc SD37 Pro Aluminum
Tires
Maxxis Assegai 2.5 F & DHRII 2.4 R
Brakes
Brakes
TRP Trail EVO 4 Piston - F & R
Cockpit
Stem
Raceface Turbine 40mm x 35mm dia.
Handlebar
Pro Taper Carbon 810mm 25mm rise x 35mm dia.
Headset
FSA
Seat
Saddle
WTB Volt Comp
Seatpost
KS Rage 34.9
Motor & Battery

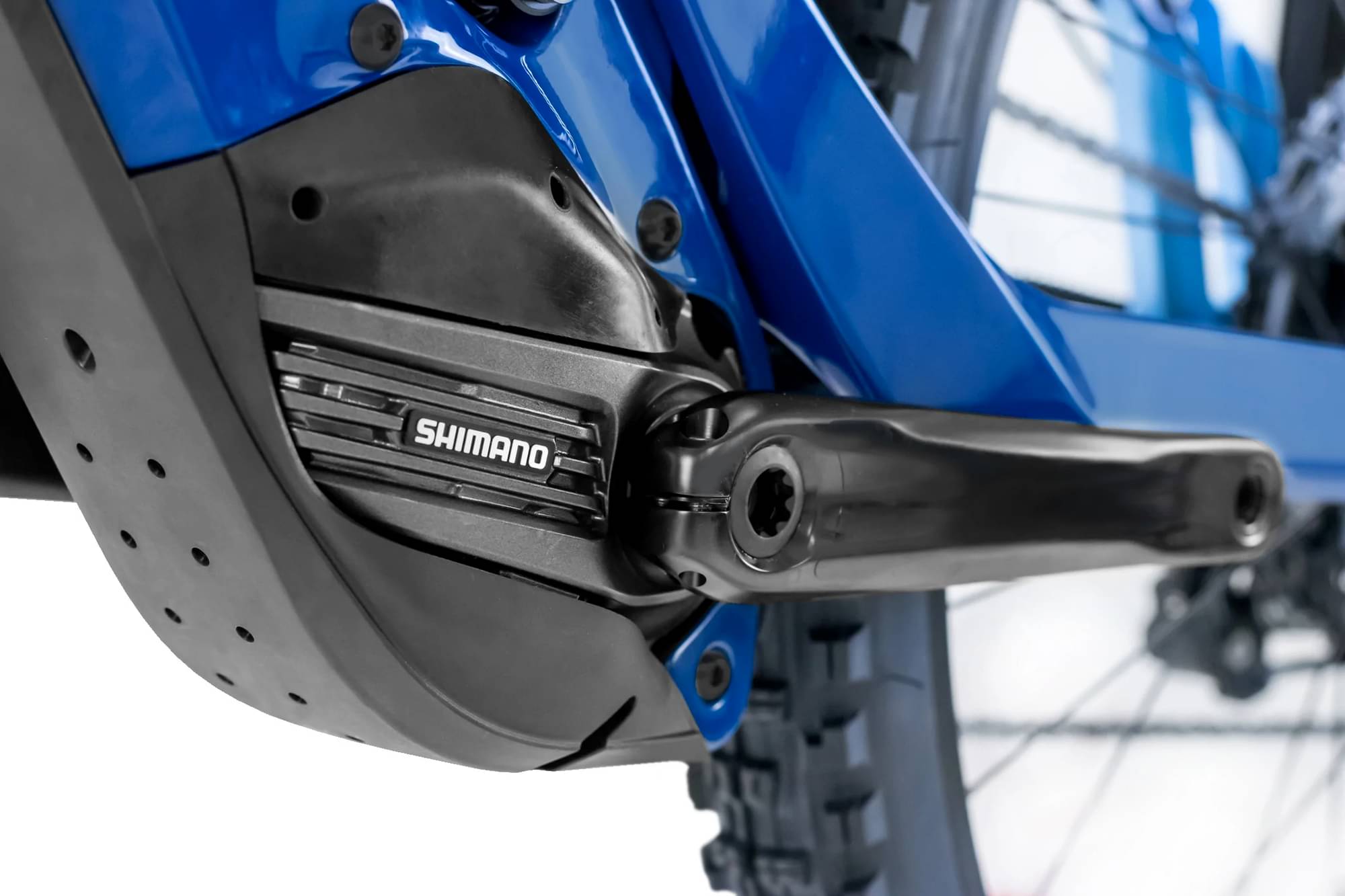

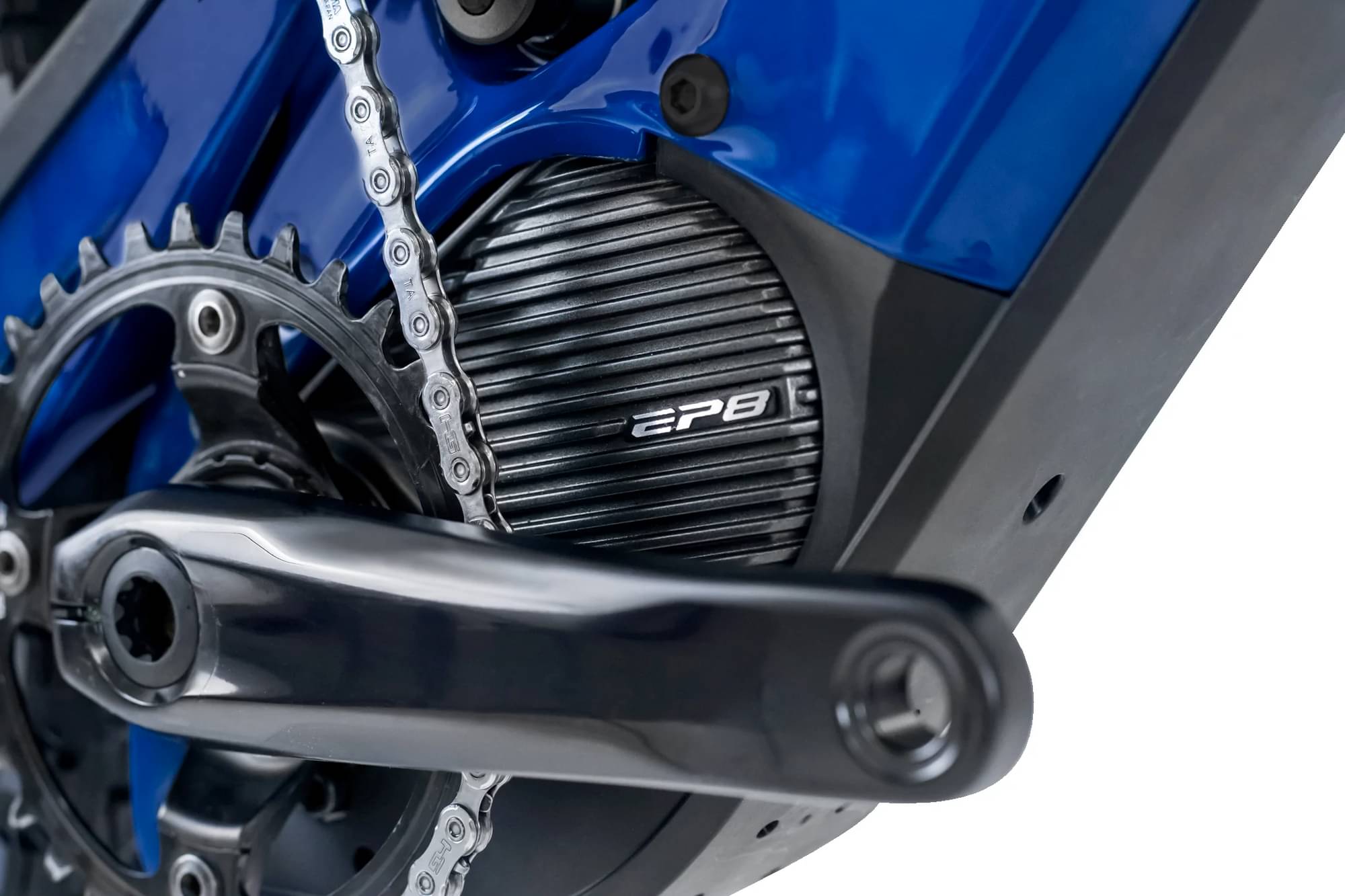

Motor
Shimano EP8 & 504W Battery w/charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.32 mm | 1.26 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Stack | 624 mm | 635 mm | 642 mm |
| Reach | 451 mm | 481 mm | 511 mm |
| Top Tube Length | 595 mm | 628 mm | 660 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 430 mm | 450 mm | 450 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1214 mm | 1249 mm | 1283 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm |
| Standover Height | 706 mm | 706 mm | 706 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Drive LT Advanced is an Eminent E Drive model. Eminent launched 14 e-bikes of this model so far. Take a sneak peek at all Eminent E Drive e-bikes models from 2022, by clicking here.
Model range prices
Eminent Drive LT Advanced 2022 is the most economical model, with a starting price of 8399$. Eminent Drive MT Pro 2022 on the other hand costs 11899$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8399$. Comparing the average cost of a Trail e-bike to this one, you will see that Drive LT Advanced price is 149.6% more expensive.
Overview of components
Fork
The Drive LT Advanced comes factory-installed with the Fox Performance Elite Float 38 fork. This has a travel range of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.

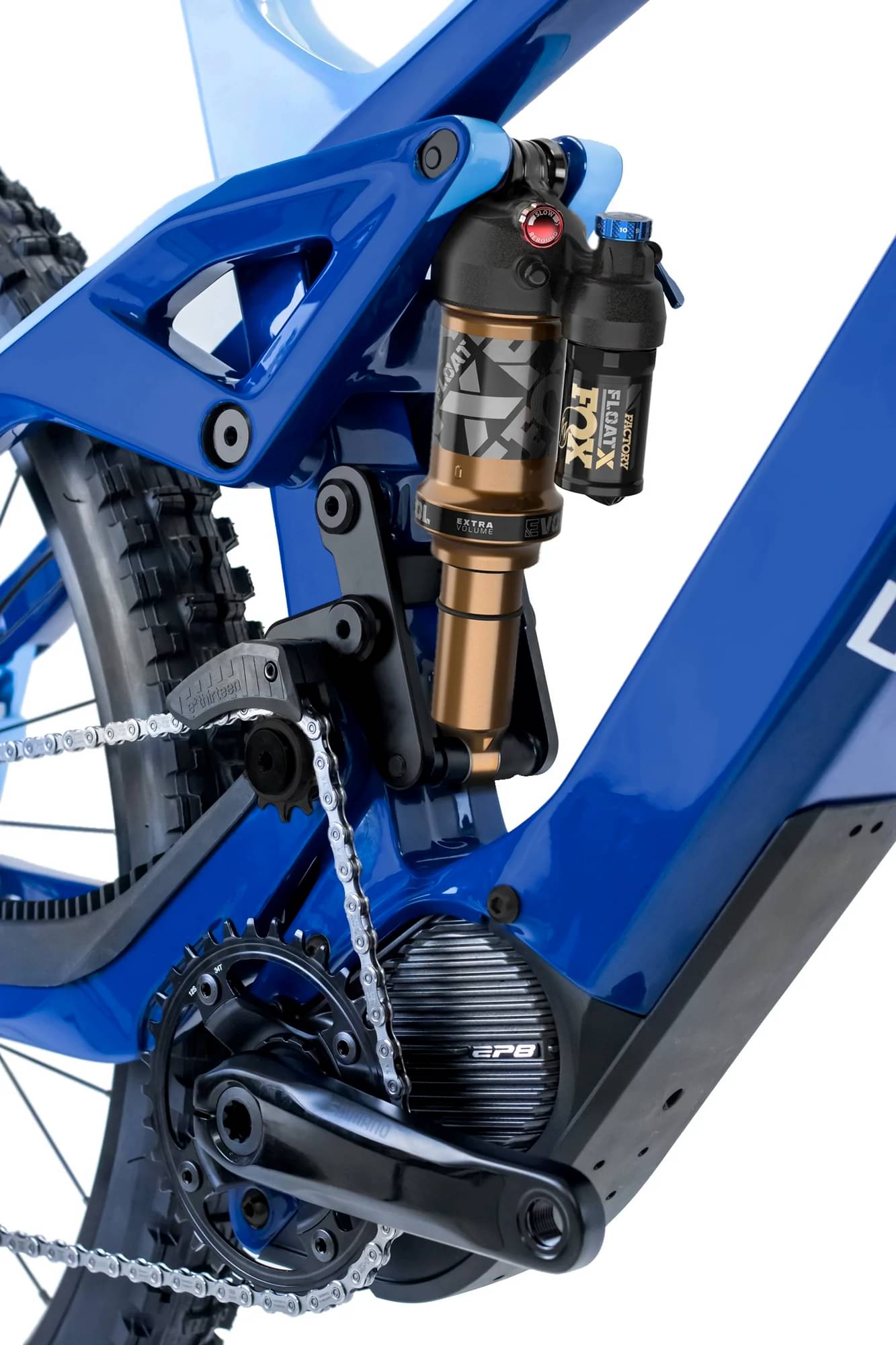

Rear Shock
Eminent Drive LT Advanced e-bike has the Fox Performance Elite Float X 230 x 60 model installed, and has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Eminent Drive LT Advanced 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.

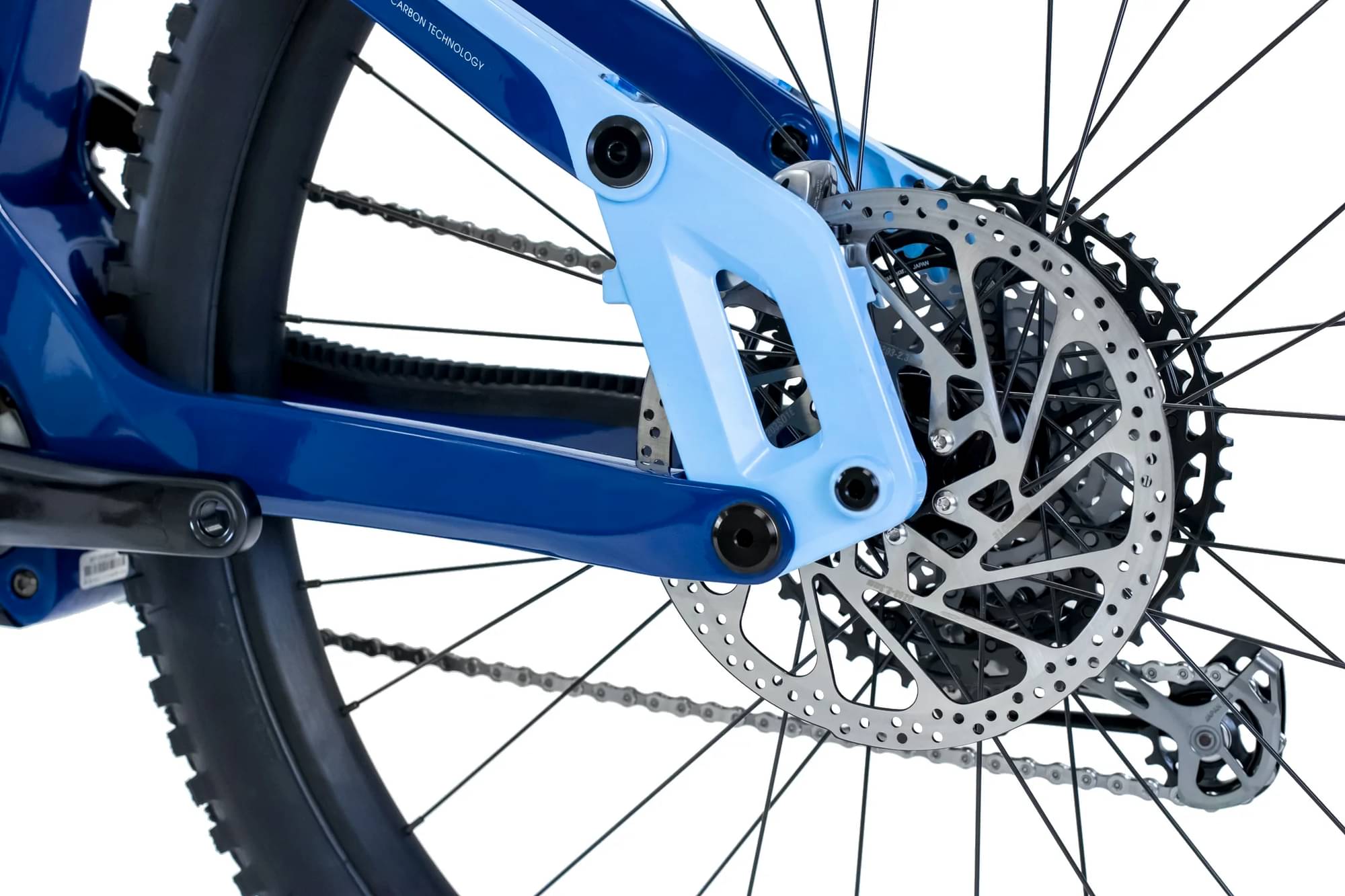

Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
Eminent Drive LT Advanced includes a dropper post. Therefore, climbing or descending will be a breeze.
