Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Eminent Onset (140mm)
Suspension Fork
Fox 36 Fit4 Factory 15mm axle 150, 44mm offset
Rear Shock
Fox Float X Factory 210 x 55
Drivetrain
Rear Derailleur
XTR M9120 - 12 spd rear derailleur
Shift Levers
XTR M9100 - 12 spd shifter
Cassette
XTR M9100 - 12 spd cassette
Crank
XTR M9120 - Front Crank w/32T chainring
Bottom Bracket
Shimano BB92
Chain
XTR M9100 - 12 spd chain
Chain Guide
MRP 1X CS ISCG-05
Wheels
Rims
Crankbrothers Synthesis Enduro Carbon I9 Hubs
Tires
Maxxis Assegai 2.5 F & DHRII 2.4 R
Brakes
Brakes
XTR 4 piston - front & rear brakes
Cockpit
Stem
Valiant Stem
Handlebar
Pro Taper Carbon 810mm
Headset
Acros block lock stainless steel
Seat
Saddle
WTB Volt Pro
Seatpost
KS Rage 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.47 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 621 mm | 631 mm | 640 mm | 650 |
| Reach | 405 mm | 430 mm | 458 mm | 488 mm |
| Top Tube Length | 570 mm | 599 mm | 627 mm | 652 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 76 ° |
| Seat Tube Length | 432 mm | 451 mm | 471 mm | 471 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1156 mm | 1185 mm | 1214 mm | 1252 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 736 mm | 736 mm | 736 mm | 736 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Onset LT Pro 29 completes the Eminent Onset model. Eminent launched 31 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Eminent Onset ST Comp 29 2022 is the most economical model, with a starting price of 5599$. Eminent Onset LT Pro 29 2022 on the other hand costs 9099$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Eminent released this model in 2022, its price was 9099$. If we compare this with the average Trail bike cost we notice that the price is 229.44% higher.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock

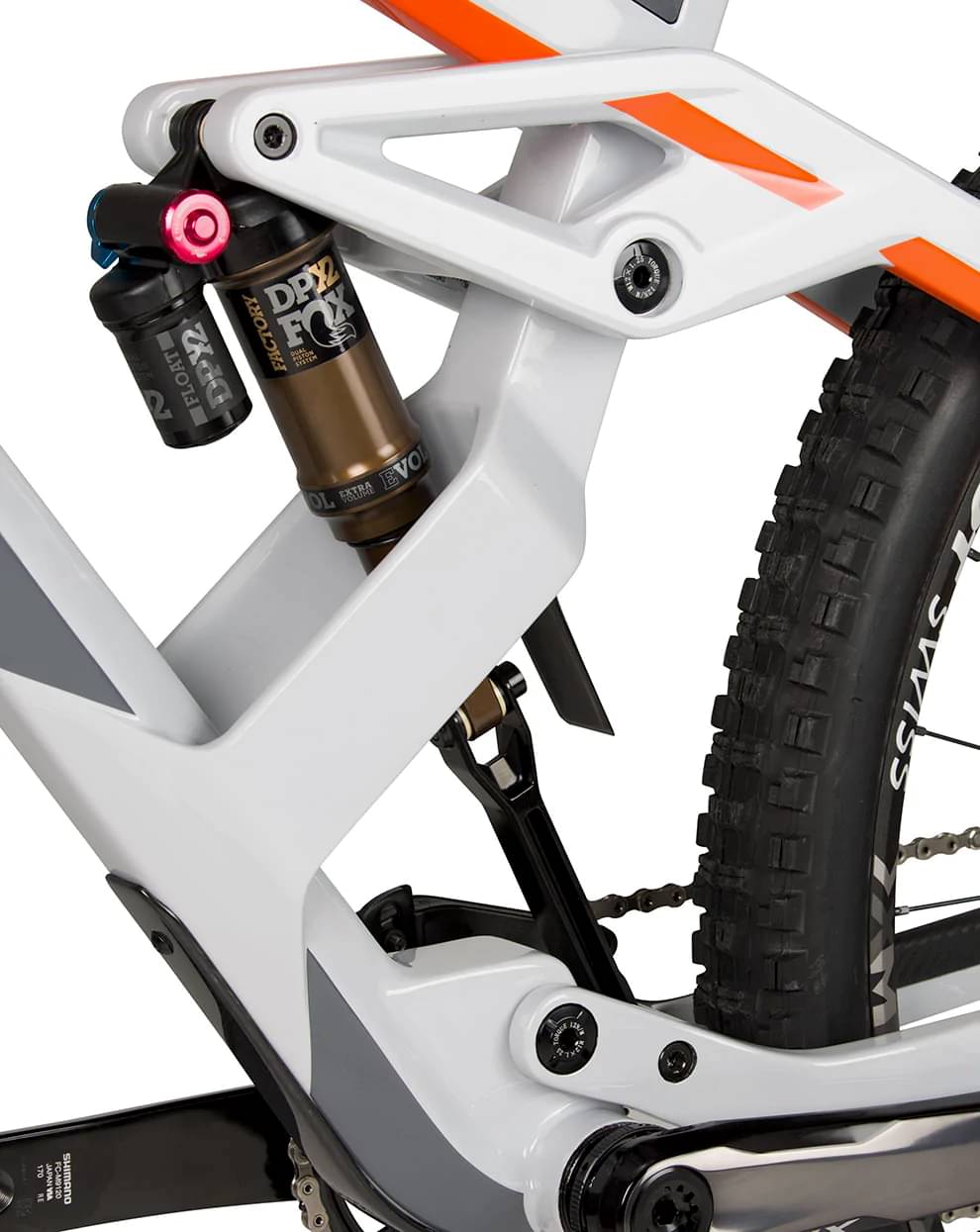

The shock that’s installed on this bike is Fox Float X Factory 210 x 55, with a travel distance of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Onset LT Pro 29 2022 bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Eminent Onset LT Pro 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Eminent Onset LT Pro 29 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
