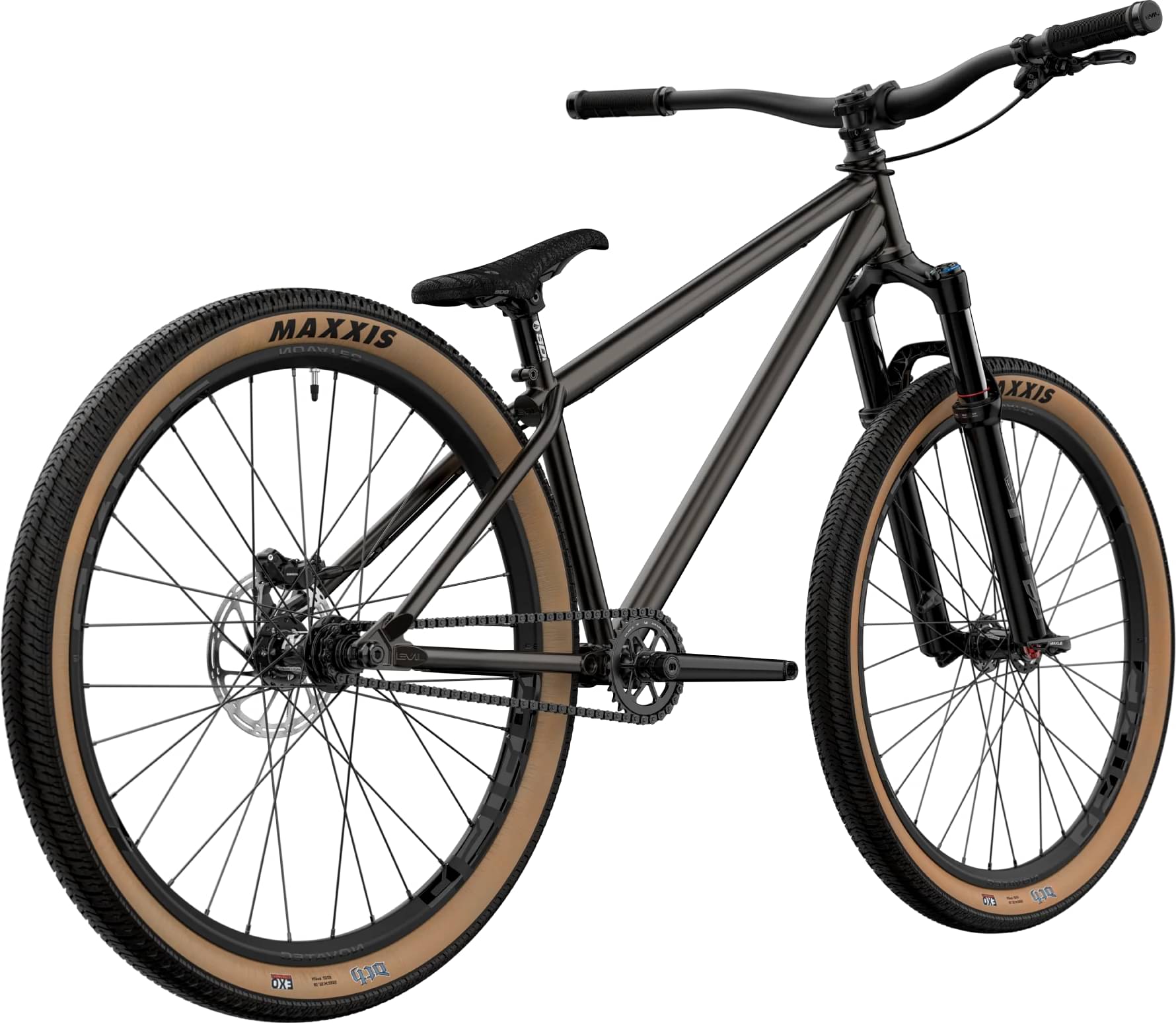

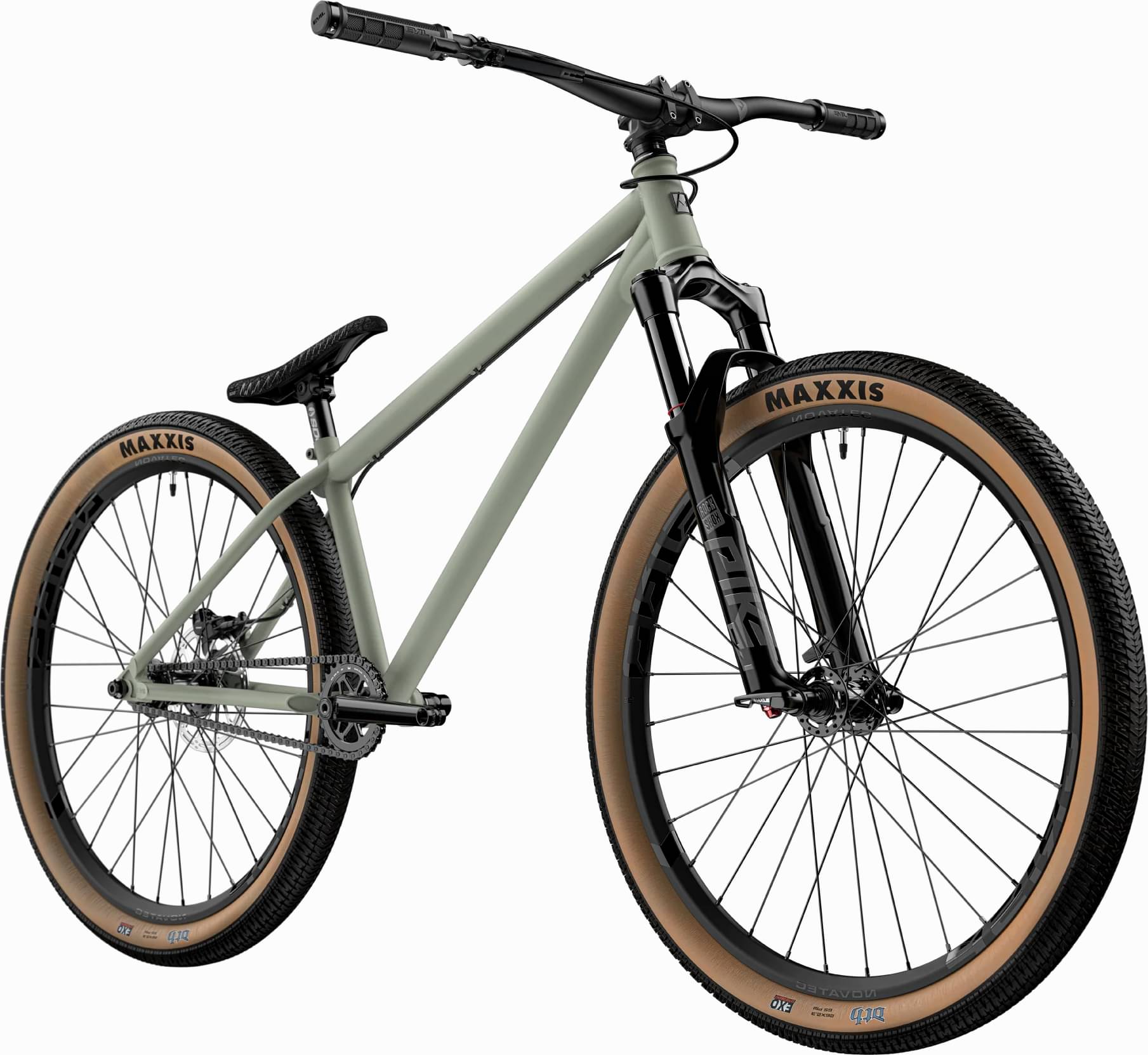

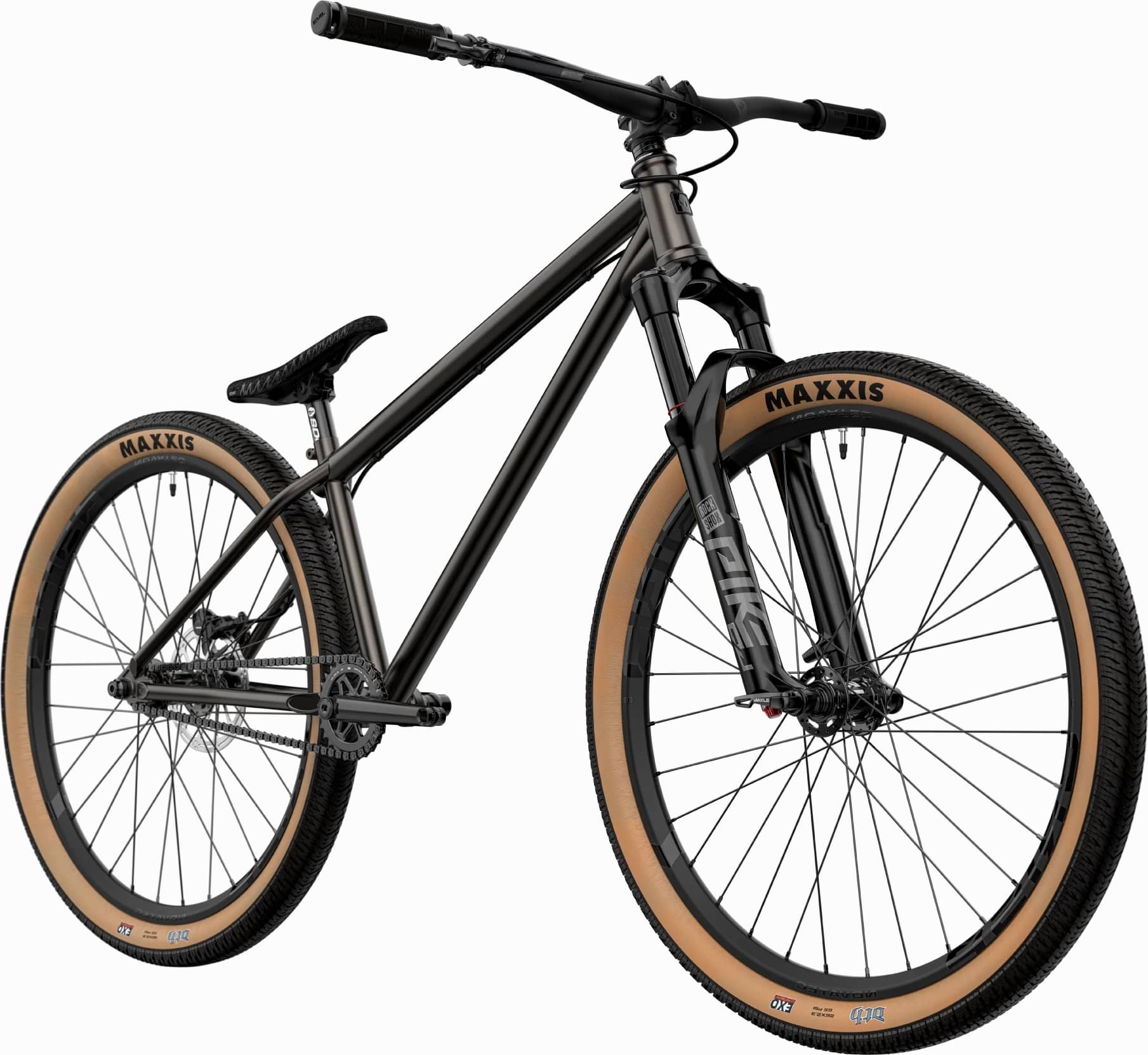

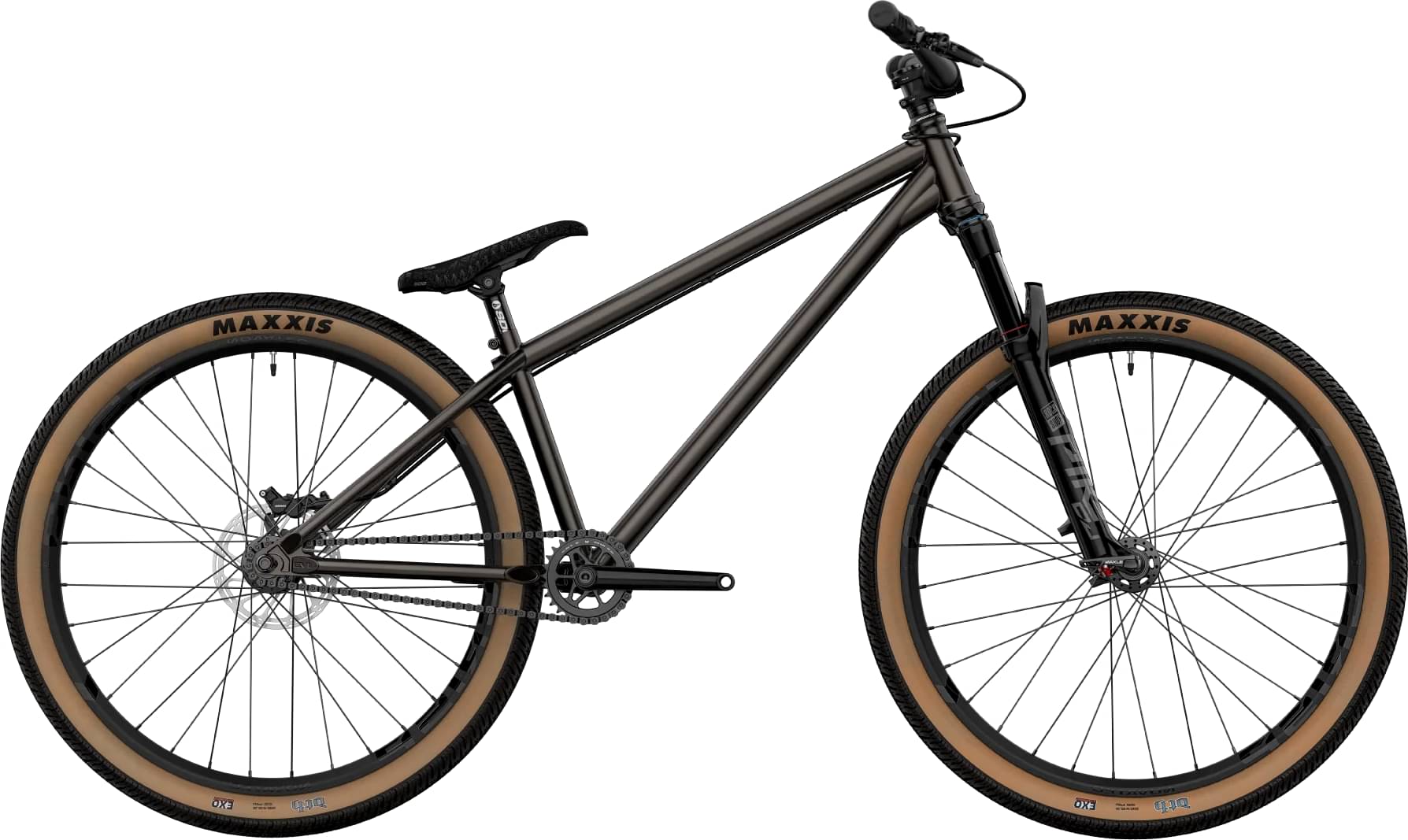

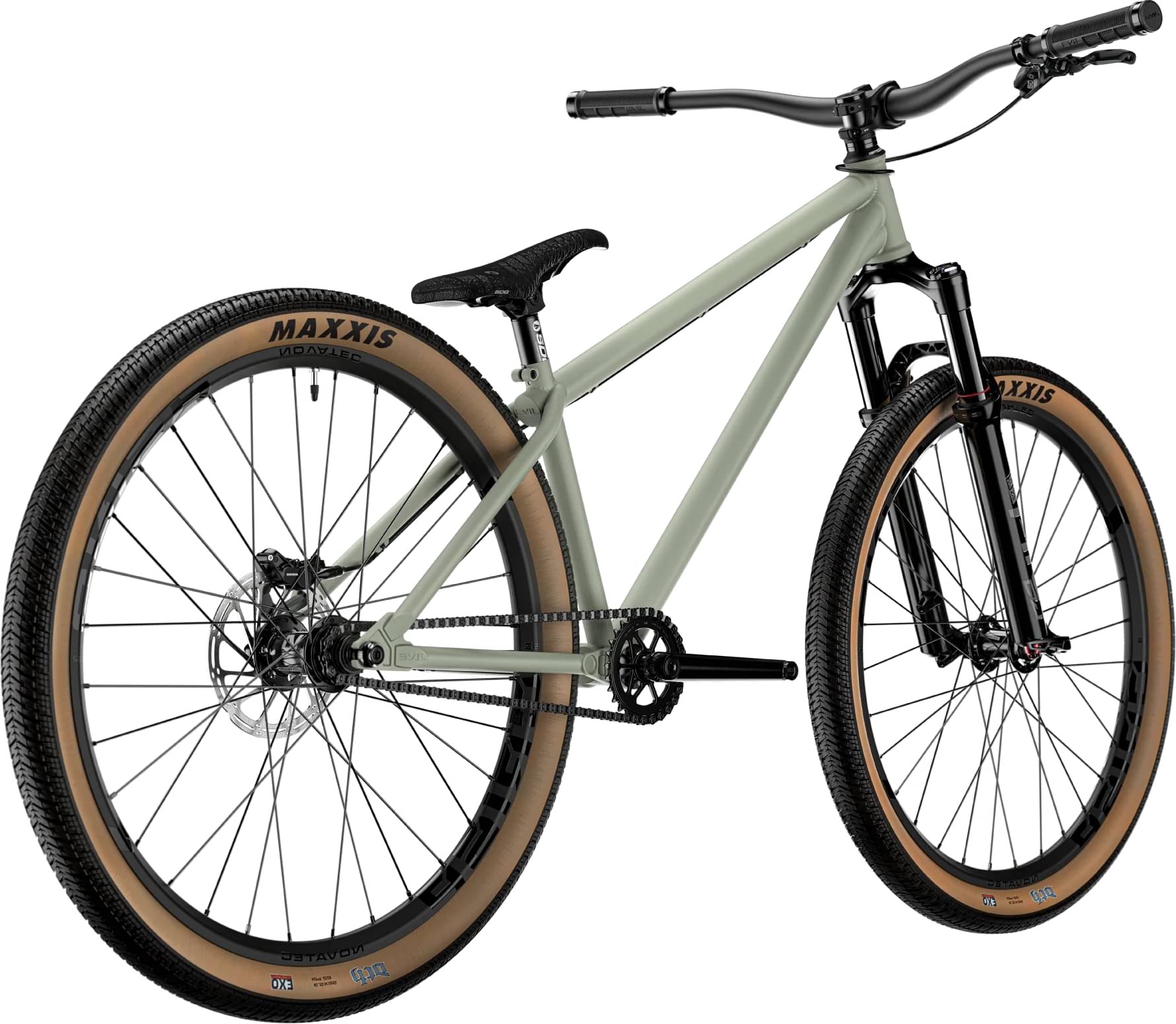

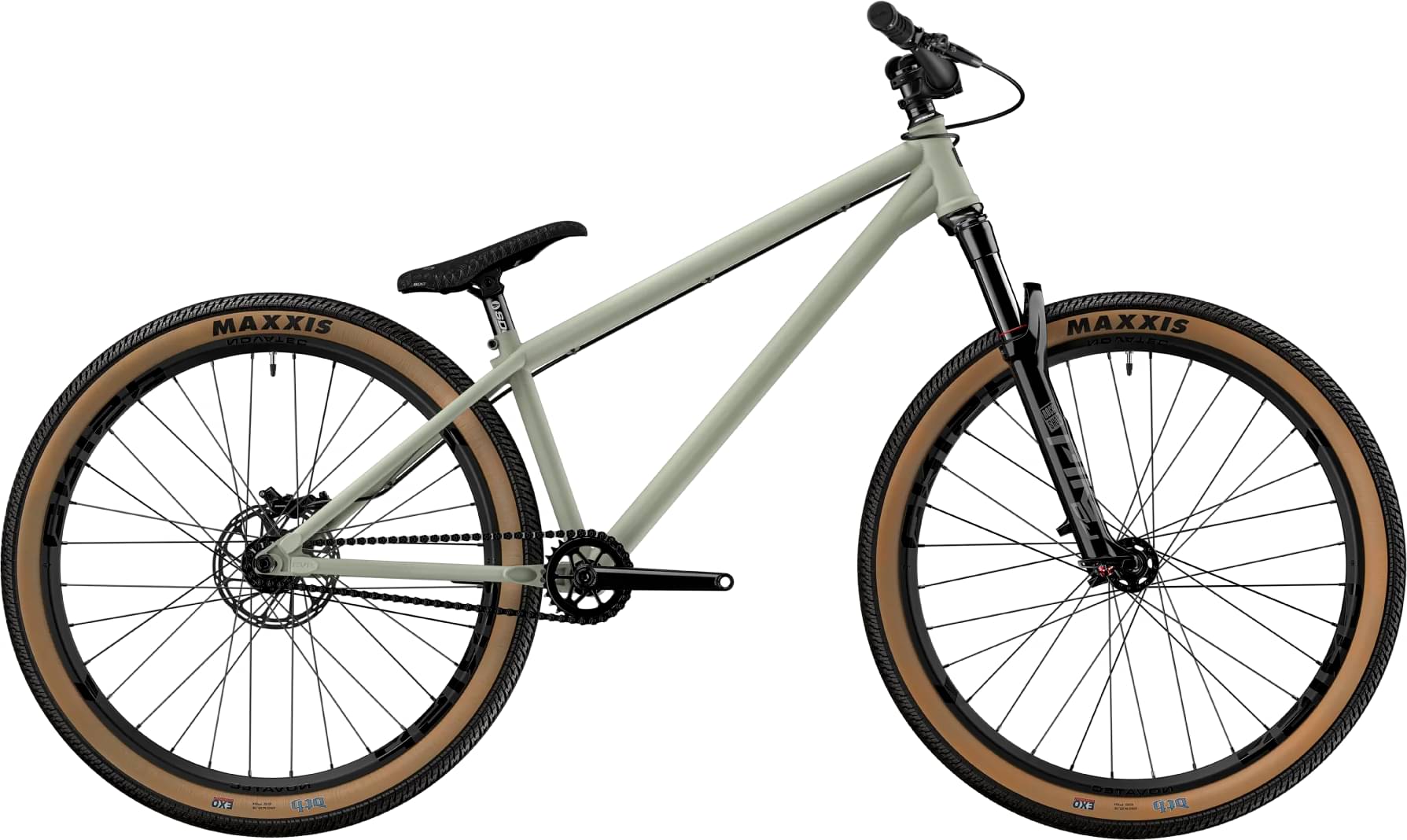

Evil Faction II / Faction 2 – Complete Build Kit 2023
2023 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 26" -
Travel Front 100mm -
Fork RockShox Pike DJ
-
Suspension Hardtail -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

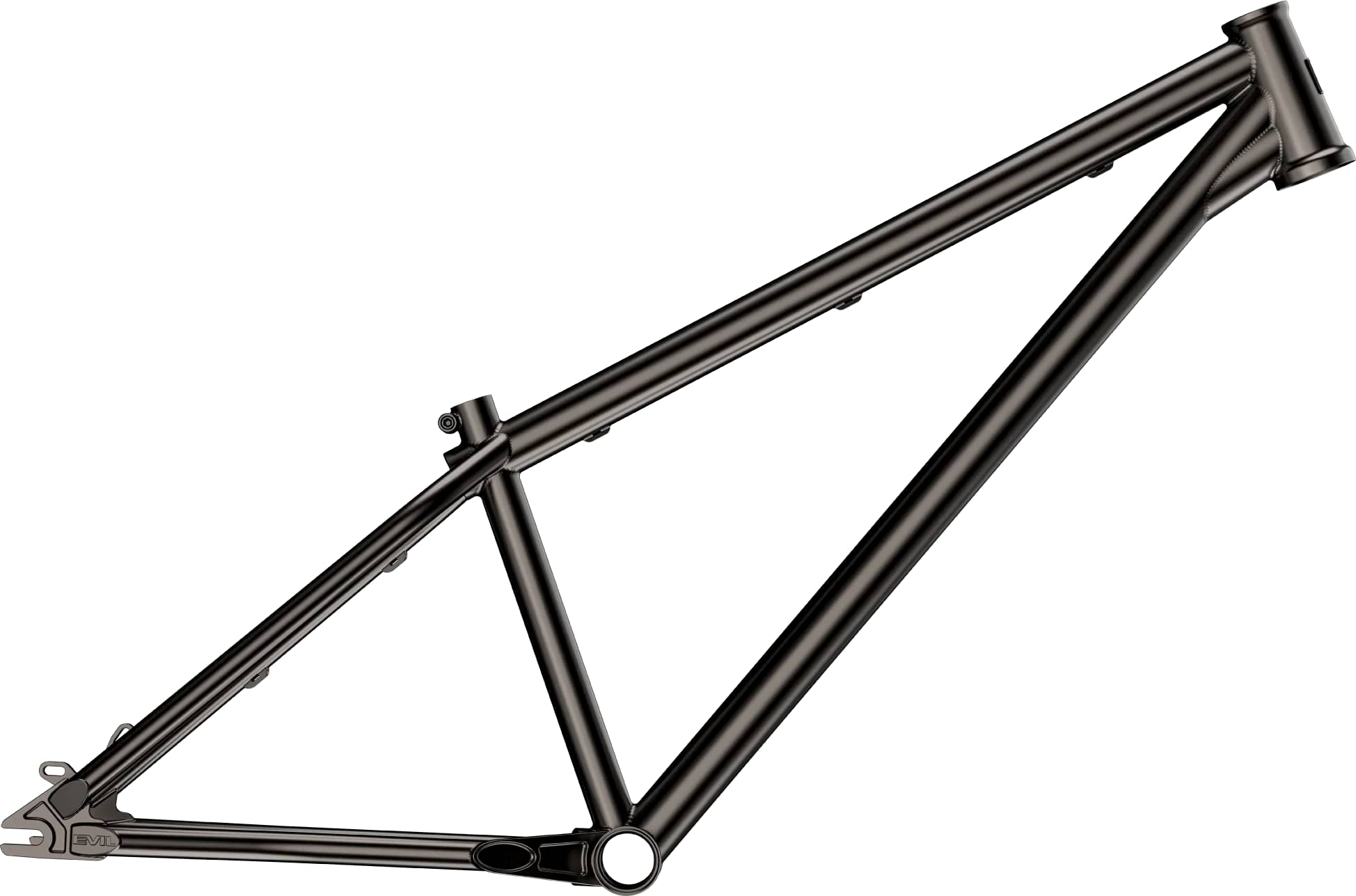

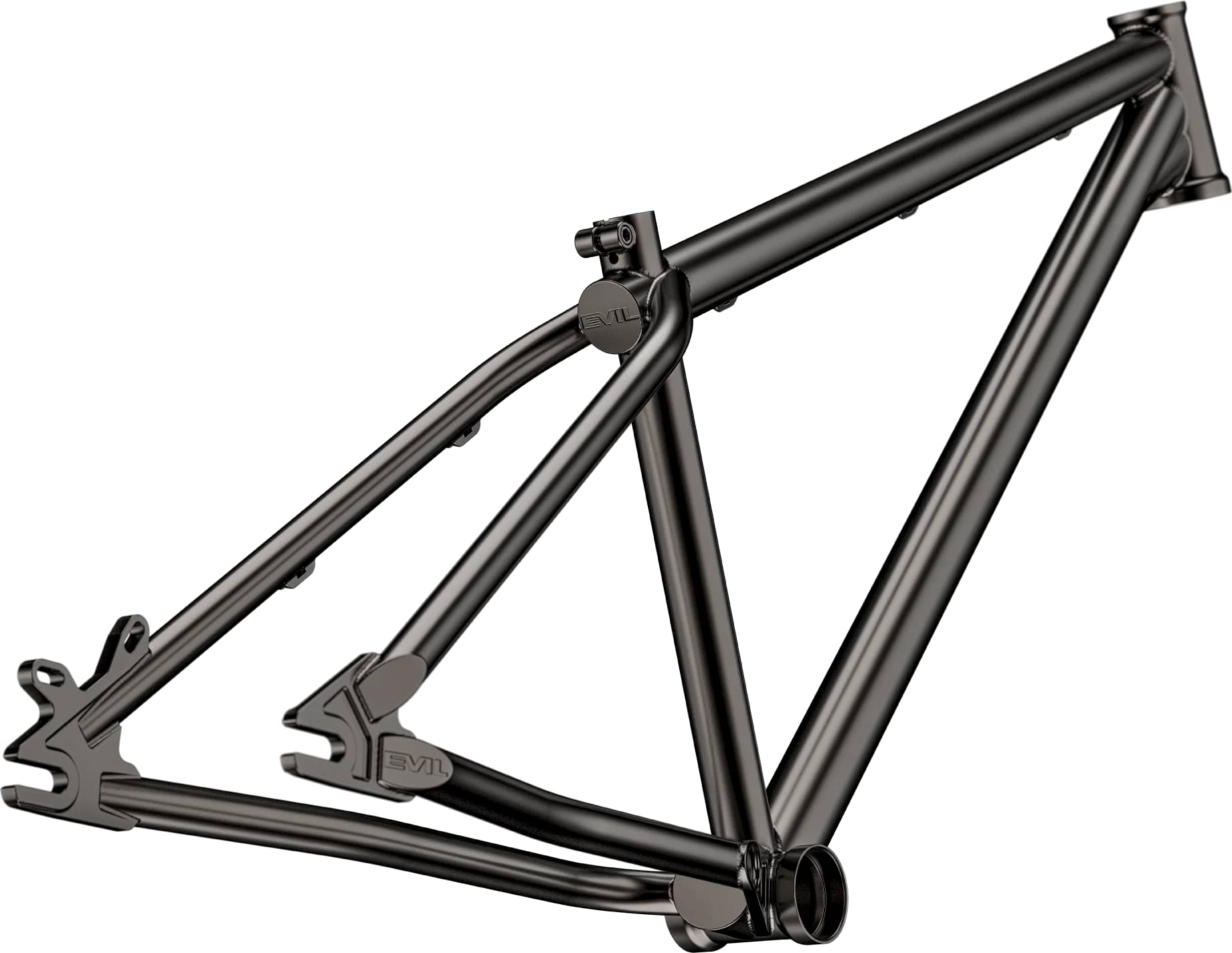

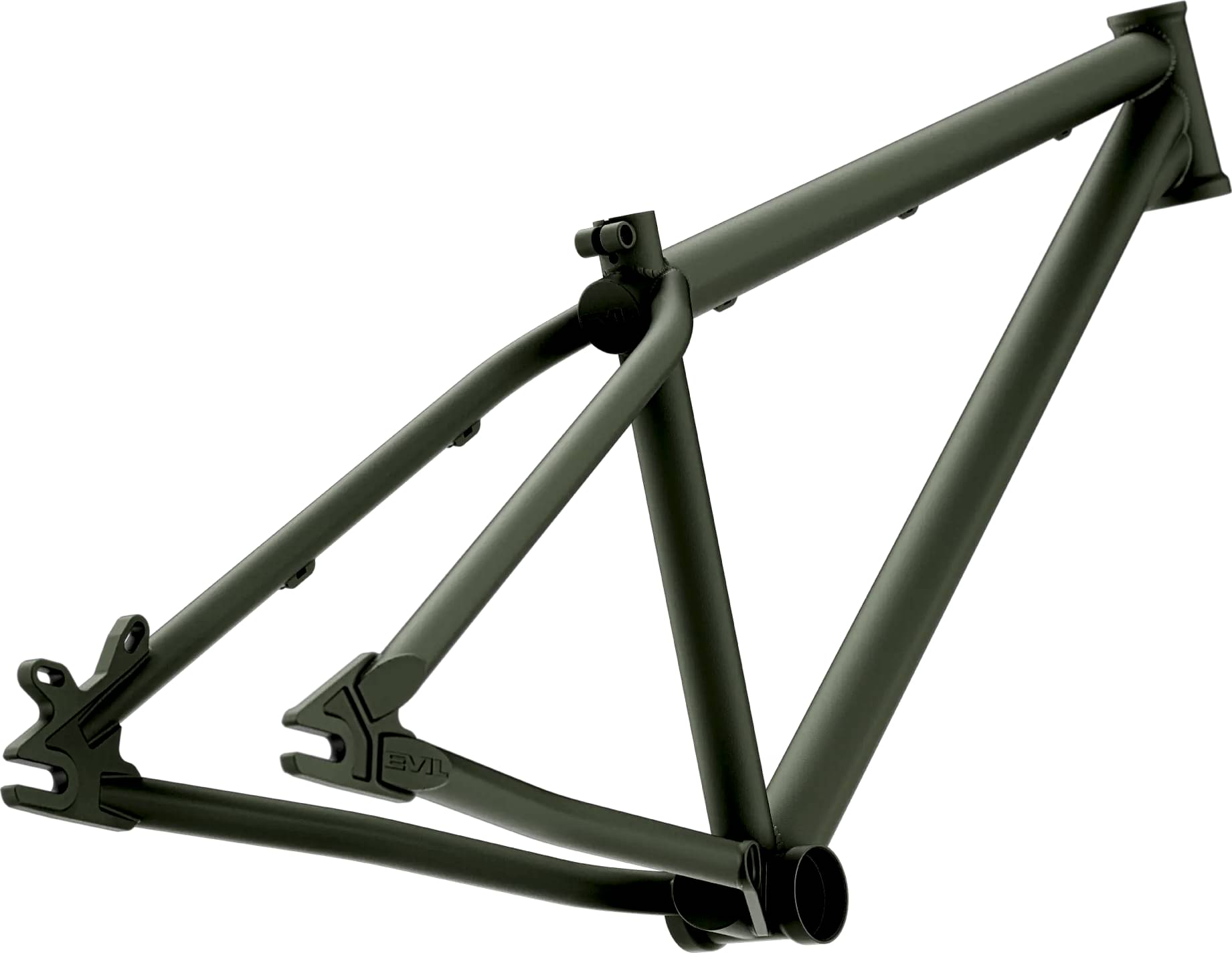

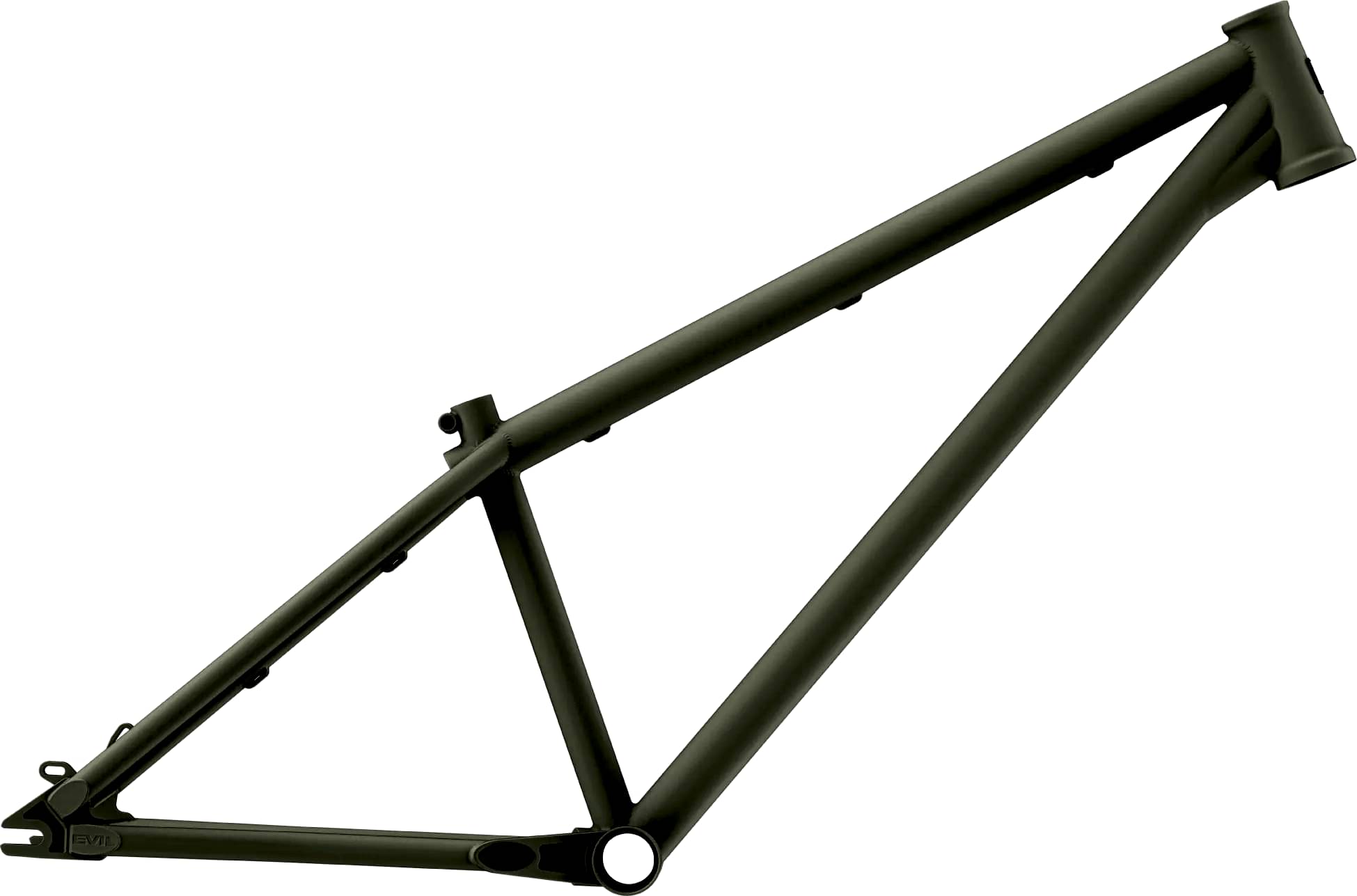

EVIL Faction II, 4130 Chromoly
Suspension Fork
Rockshox Pike DJ, 100mm Travel, 40mm Offset
Rear Shock
N/A
Drivetrain
Rear Derailleur
N/A
Shift Levers
N/A
Cassette
Novatec 9t Driver
Crank
Sammox 3-piece Chromoly, 19mm, 48-spline
Bottom Bracket
Mid Type BB
Chain
KMC HL1 Wide, Black, Half-Link
Wheels
Rims
26
Tires
Front: 'Skinwall, '26X2.30 M147P DTH F60 SC SK, Clincher,, Rear: 'Skinwall, '26X2.30 M147P DTH F60 SC SK, Clincher,
Brakes
Brakes
Mechanical Disc
Cockpit
Stem
Evil 12 Gauge Stem / Length: 45mm
Handlebar
Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp:35mm, Rise: 35mm, Width: 810mm
Grips
Evil Lock-on
Headset
FSA Faction II, Integrated
Seat
Saddle
SDG Apollo Black Synthetic/Grey Icon
Seatpost
SDG Micro I-Beam
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm |
| Stack | 526 mm | 526 mm | 526 mm |
| Reach | 394 mm | 404 mm | 419 mm |
| Top Tube Length | 585 mm | 595 mm | 610 mm |
| Seat Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 320 mm | 320 mm | 320 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 386 mm | 386 mm | 386 mm |
| Wheelbase | 1021 mm | 1031 mm | 1046 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Faction II / Faction 2 – Complete Build Kit is an Evil Faction model. 8 bikes variations carry this model name so far. You can easily view all of the Evil Faction bikes models from 2023, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Dirt Jump bikes
If you want to purchase a solid Dirt Jump bike, it is important to know that the average cost is 863$. However, even though the average price of a Dirt Jump bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Faction II / Faction 2 – Complete Build Kit components
Fork
Evil Faction II / Faction 2 – Complete Build Kit 2023 bike is equipped with the RockShox Pike DJ fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Faction II / Faction 2 – Complete Build Kit model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Evil Faction II / Faction 2 – Complete Build Kit is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
