Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Following 120mm Travel, UD Carbon, Full Internal Cable Routing, SB+ 157, Integrated Chain Guide, Threaded BB
Suspension Fork
Rockshox Pike Ultimate Charger 2 RC2, Debonair 130mm Travel, 51mm Offset
Rear Shock
Rockshox Deluxe Ultimate RCT Debonair, Trunion 165x45, ML1 380 2 Tokens
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, 12sp
Front Derailleur
Single Ring Only
Shift Levers
SRAM Eagle AXS Controller
Cassette
SRAM XG-1295-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Crank
SRAM X01 Eagle DUB, SUPERBOOST+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar
Bottom Bracket
73mm Threaded
Chain
SRAM XX1 Eagle w/Powerlock
Wheels
Rims
120mm
Tires
Front: Maxxis Minion DHF EXO TR, 29x2.5, Rear: Maxxis Minion DHR EXO TR, 29x2.3
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Evil 12 Gauge Stem, Length: 45mm
Handlebar
Evil Boomstick Carbon, Backsweep: 8°, Upsweep: 5° Clamp: 35mm, Rise: 35mm, Width: 810mm
Grips
Evil Palmela
Headset
Cane Creek 40 Series ZS Integrated Tapered Headset - Cups: ZS44/28.6 (Upper) and ZS62/40(Lower), Bearing: 36° x 45° - 41mm (Upper) and 36° x 45° - 52mm (Lower) ZN40 Zinc Coated, Crown Race: 28.6mm x 36° Integrated (Upper) and 40mm x 36° Press Fit (Lower)
Seat
Saddle
WTB Volt Medium (142mm) Width Chromoly Saddle
Seatpost
Rockshox Reverb AXS 30.9mm, S: 125mm(390mm), M: 150mm(440mm), L/XL: 170mm(480mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.31 mm | 1.26 mm | 1.23 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 720 mm | 748 mm | 768 mm | 791 mm |
| Rake | 52 mm | 53 mm | 53 mm | 52 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 584 mm | 602 mm | 602 mm | 612 mm |
| Reach | 438 mm | 458 mm | 478 mm | 498 mm |
| Top Tube Length | 583 mm | 607 mm | 624 mm | 644 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 67.9 ° | 67.9 ° | 67.9 ° | 67.9 ° |
| Head Tube Length | 90 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1146 mm | 1174 mm | 1194 mm | 1217 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 648 mm | 662 mm | 673 mm | 687 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

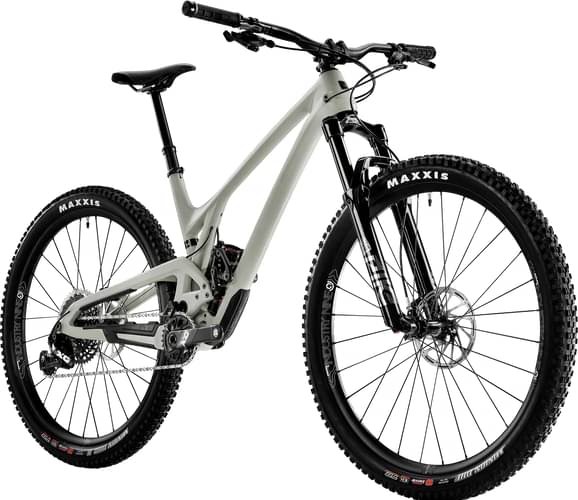

Following / AXS I9 Hydra belongs to the Evil Following model. There are 40 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the RockShox Pike Ultimate model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Rockshox Deluxe Ultimate RCT Debonair rear shock model, which has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Evil Following / AXS I9 Hydra 2022, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Following / AXS I9 Hydra comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Evil Following / AXS I9 Hydra includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
