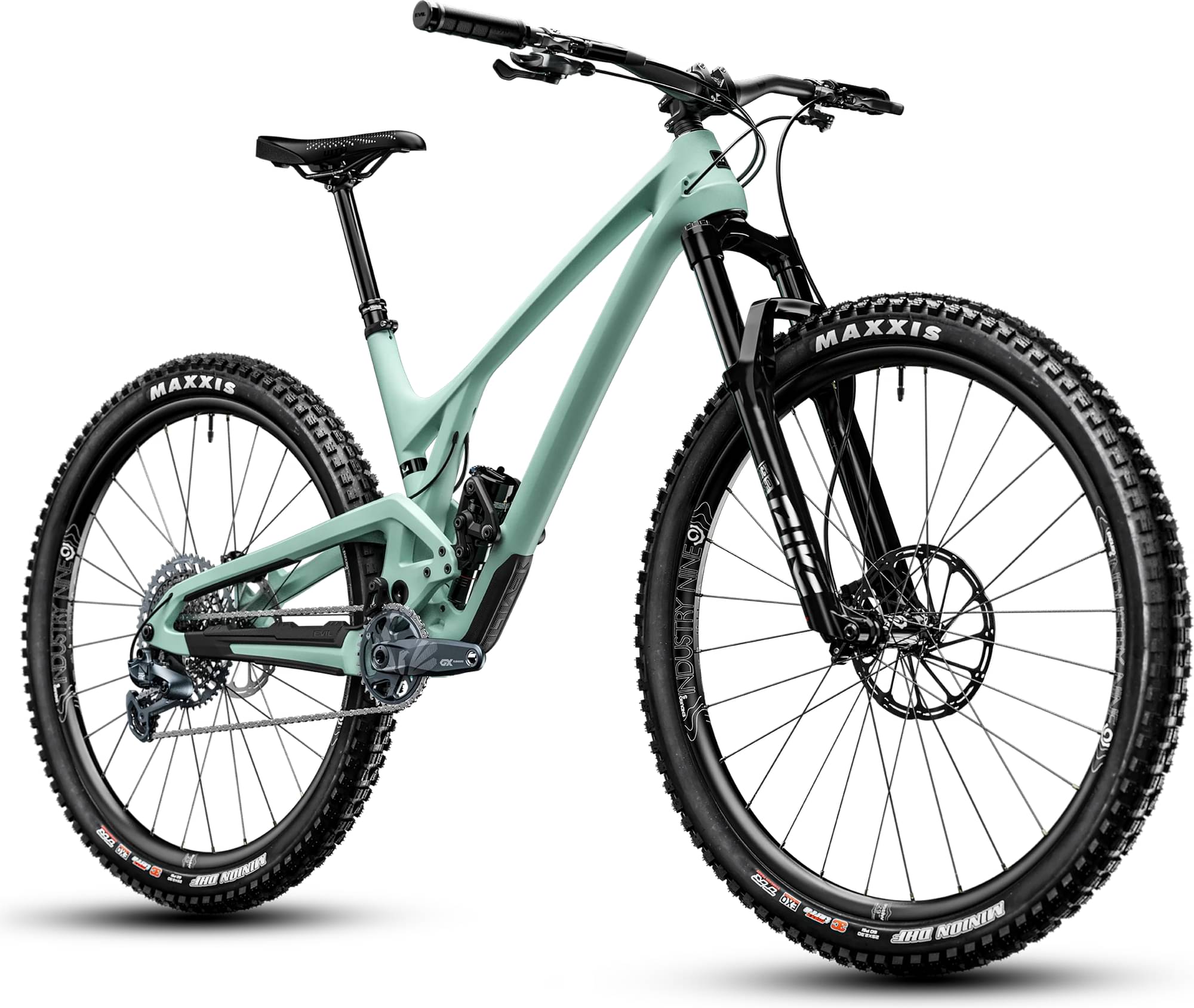

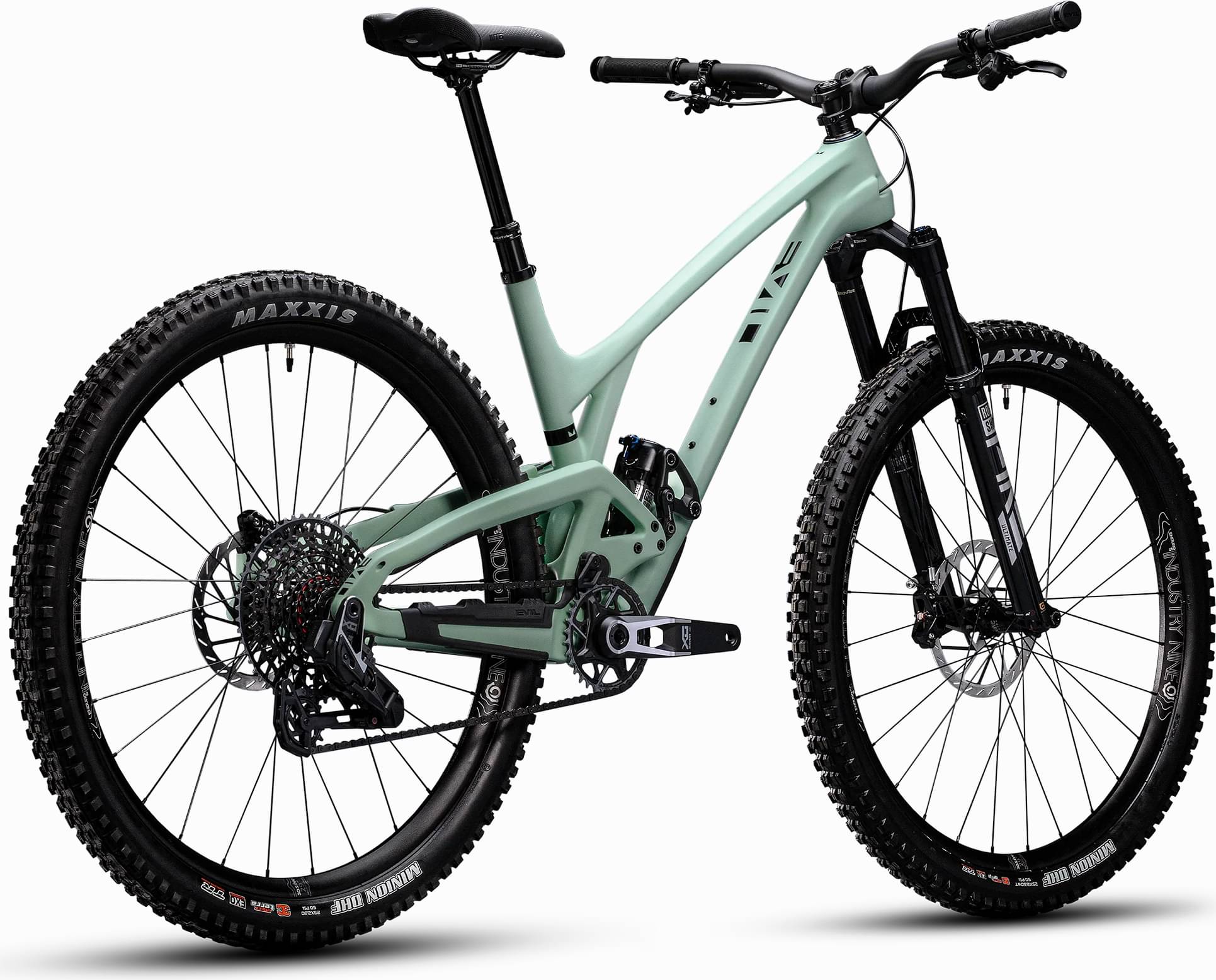

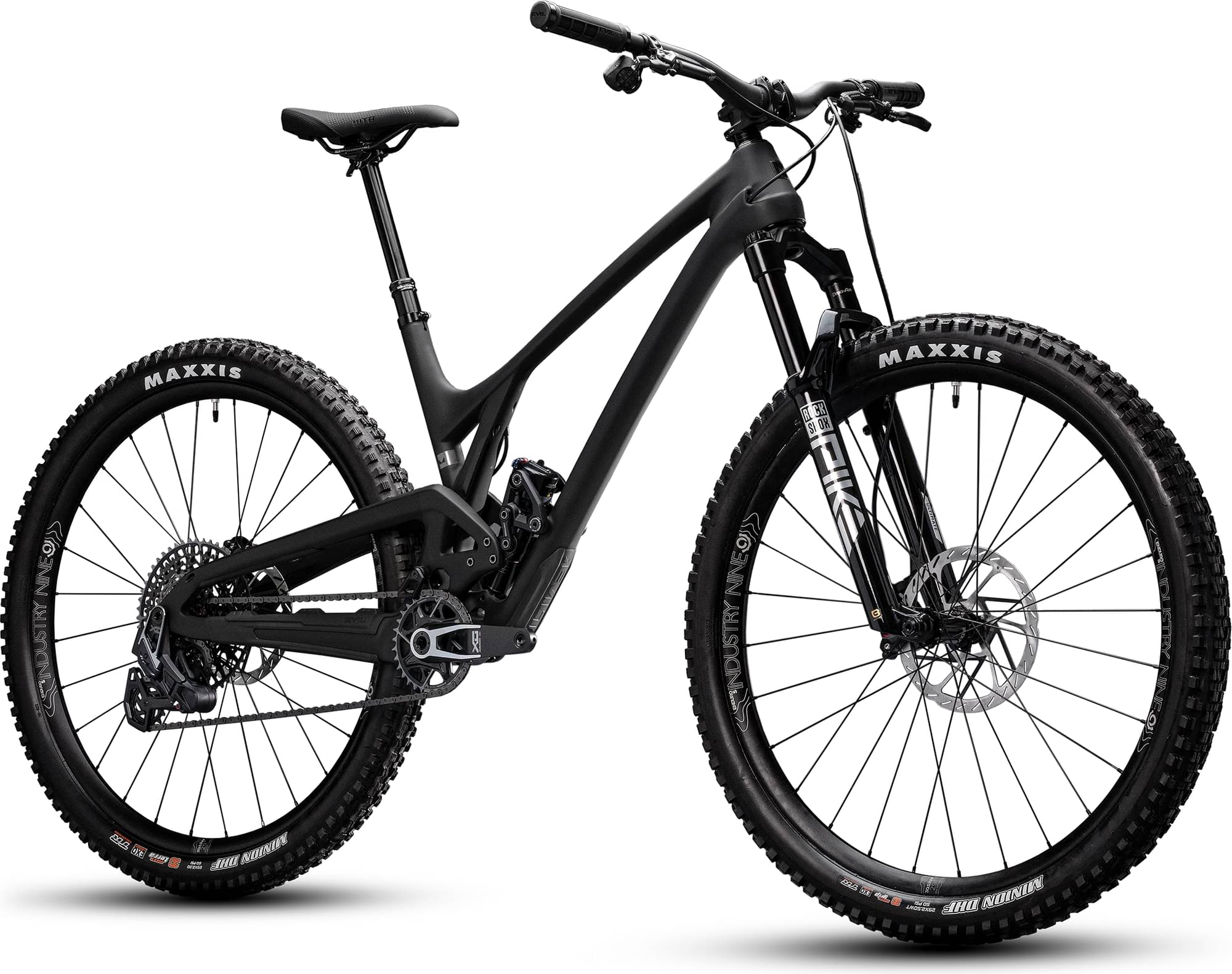

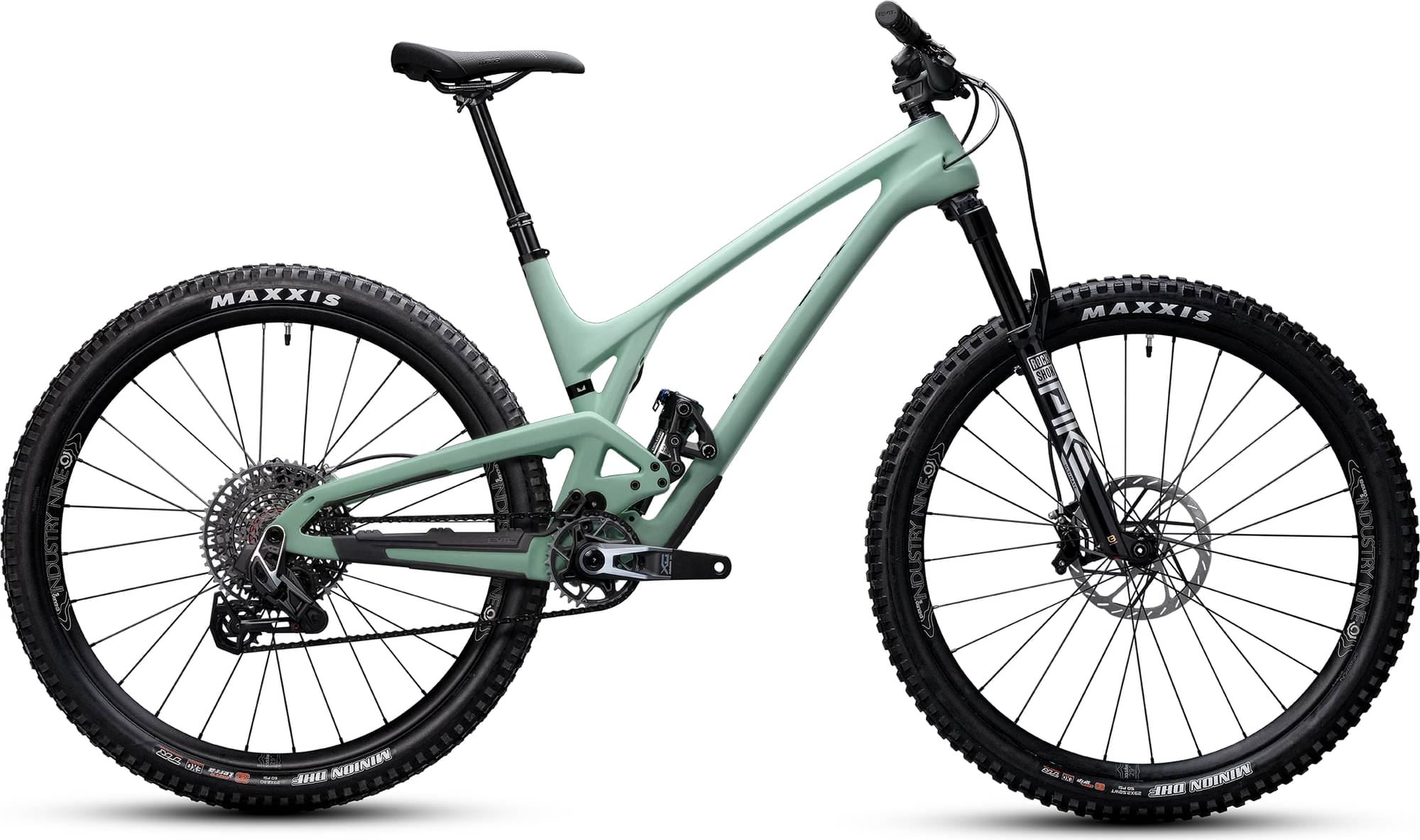

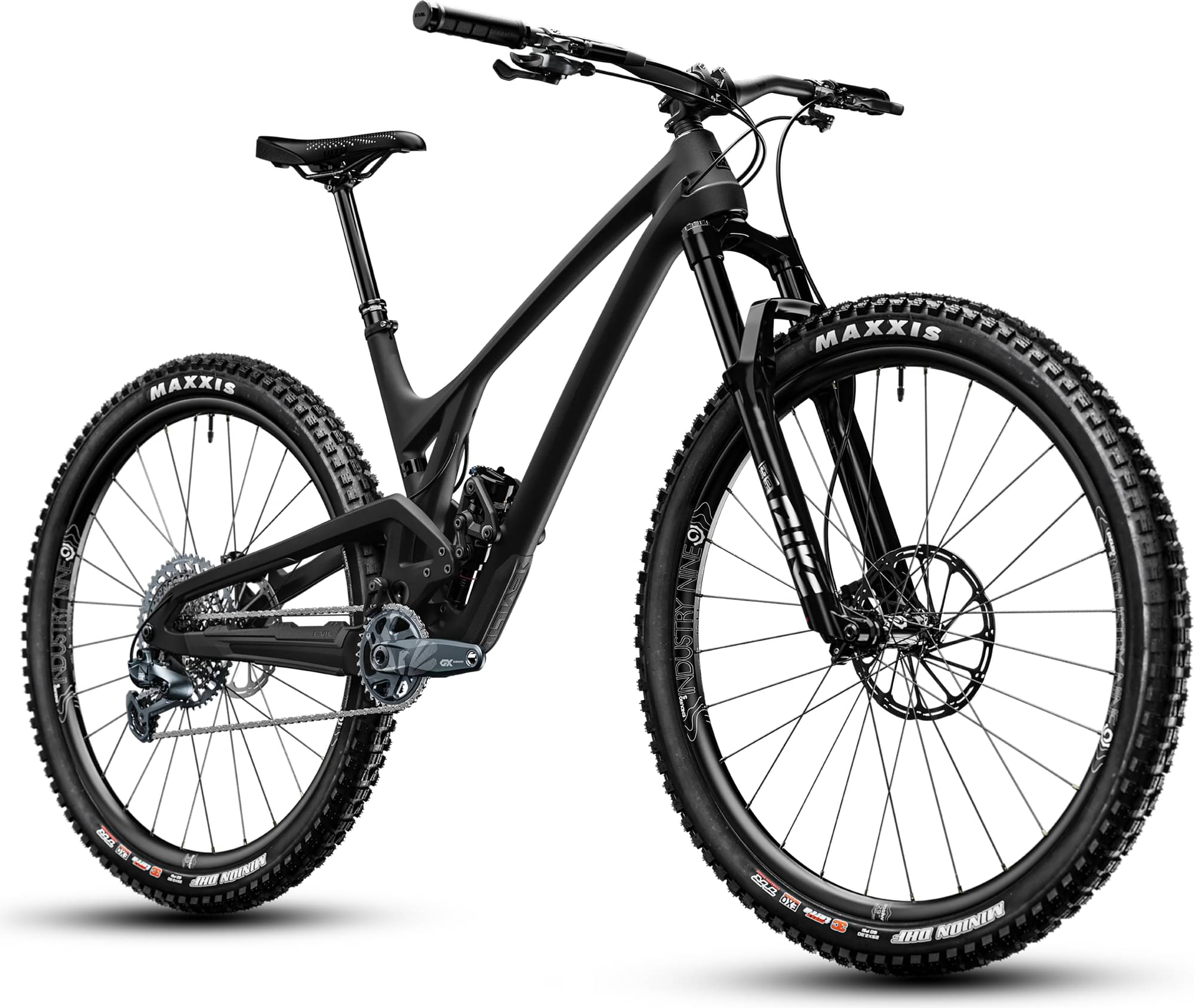

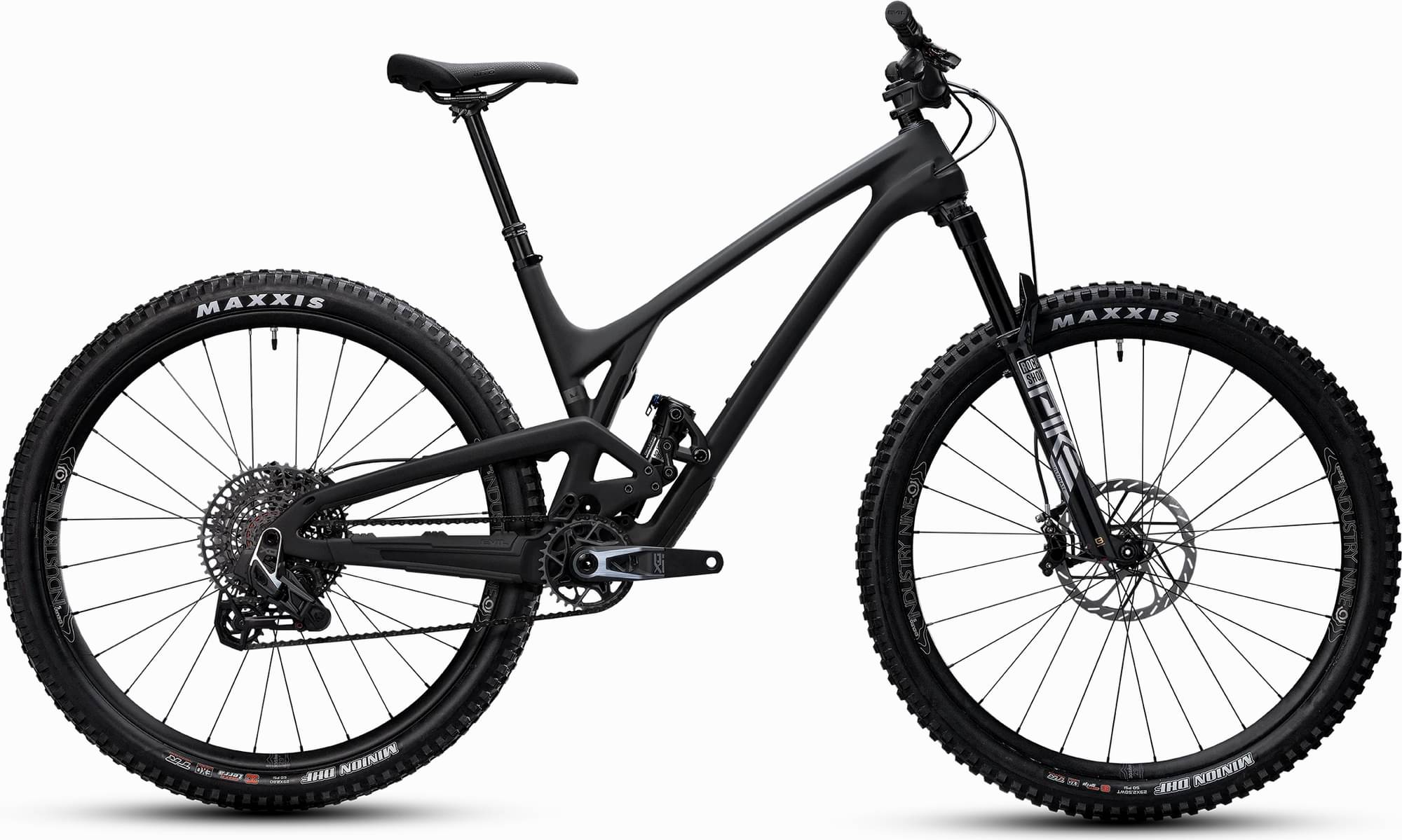

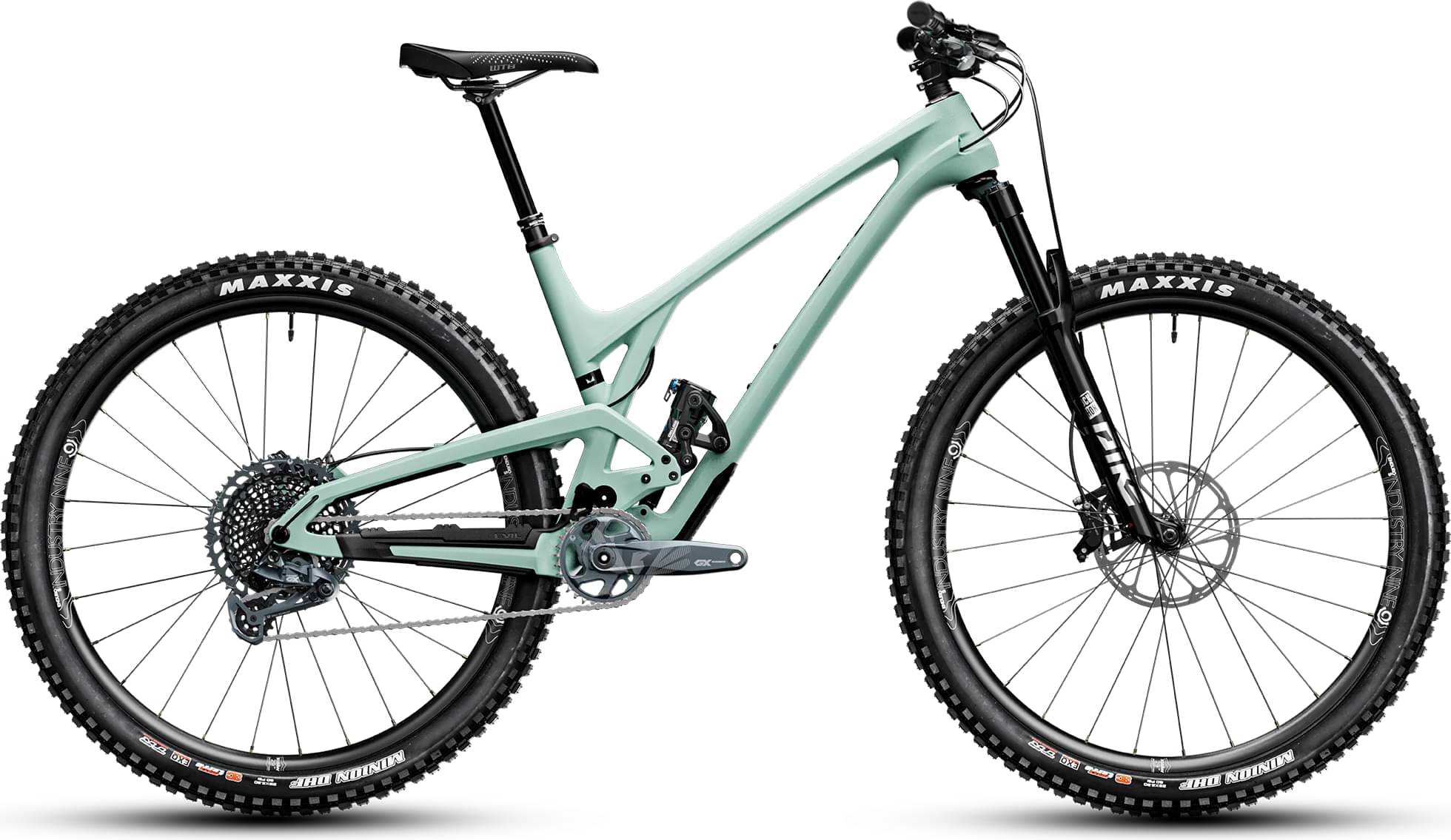

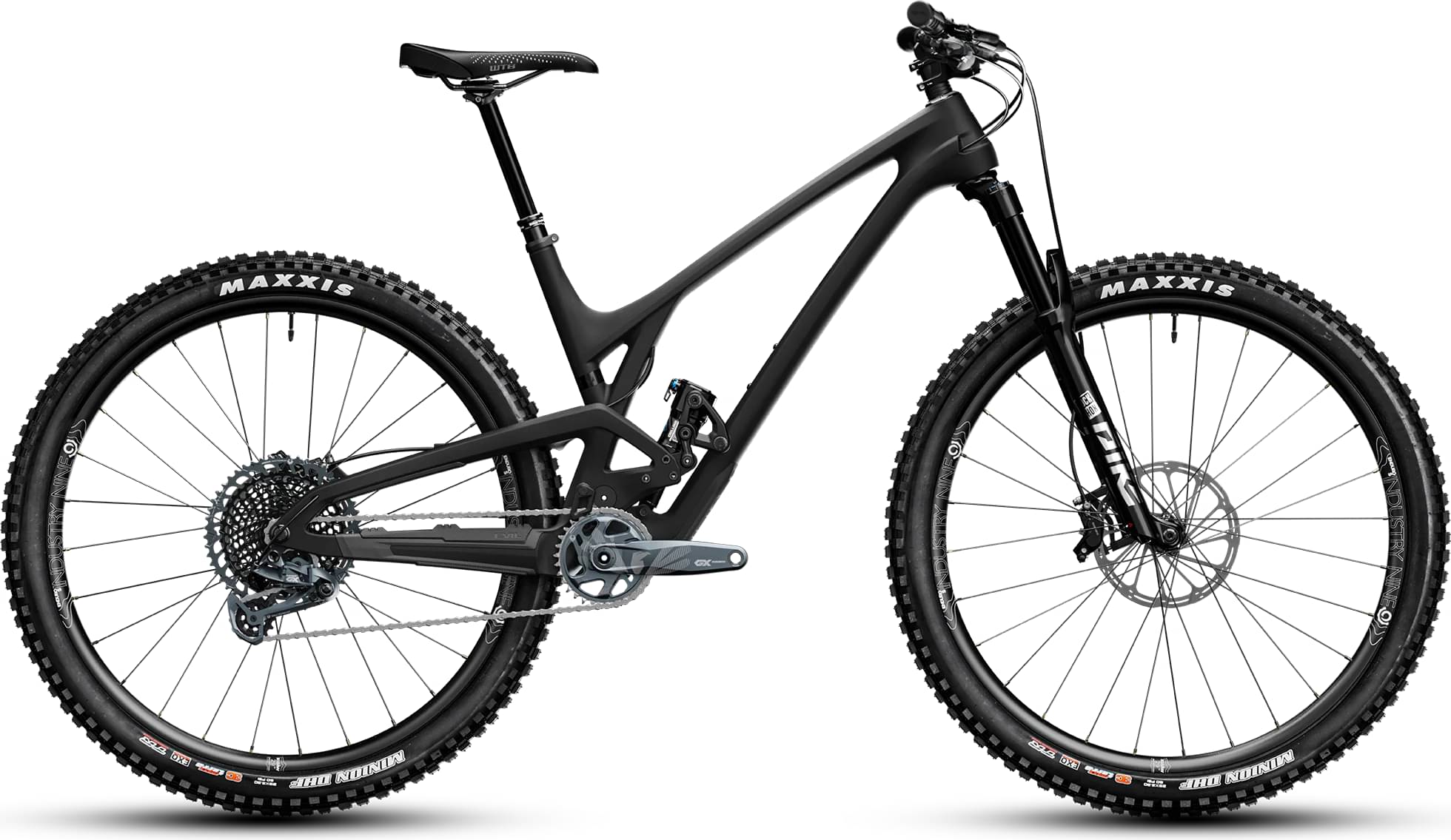

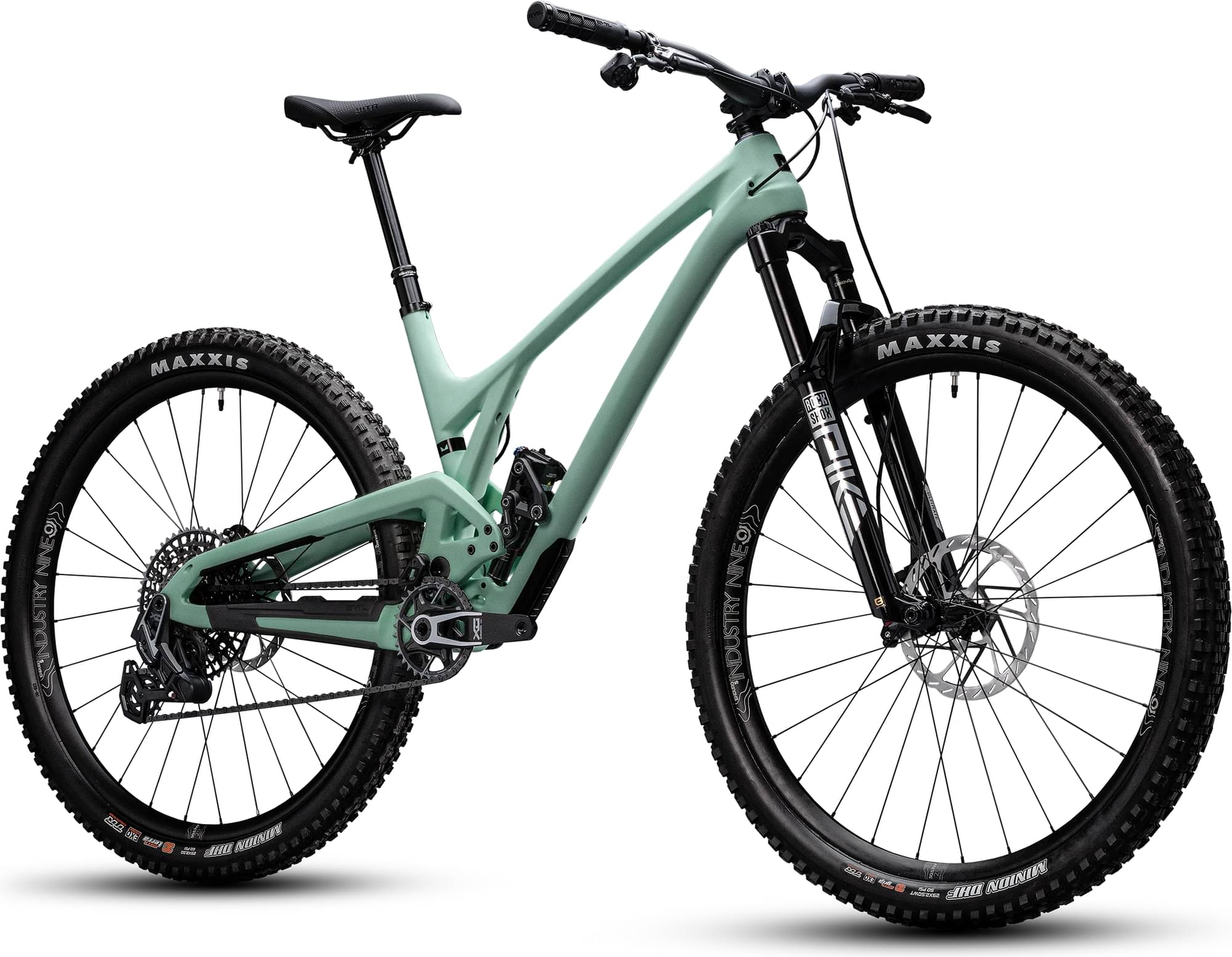

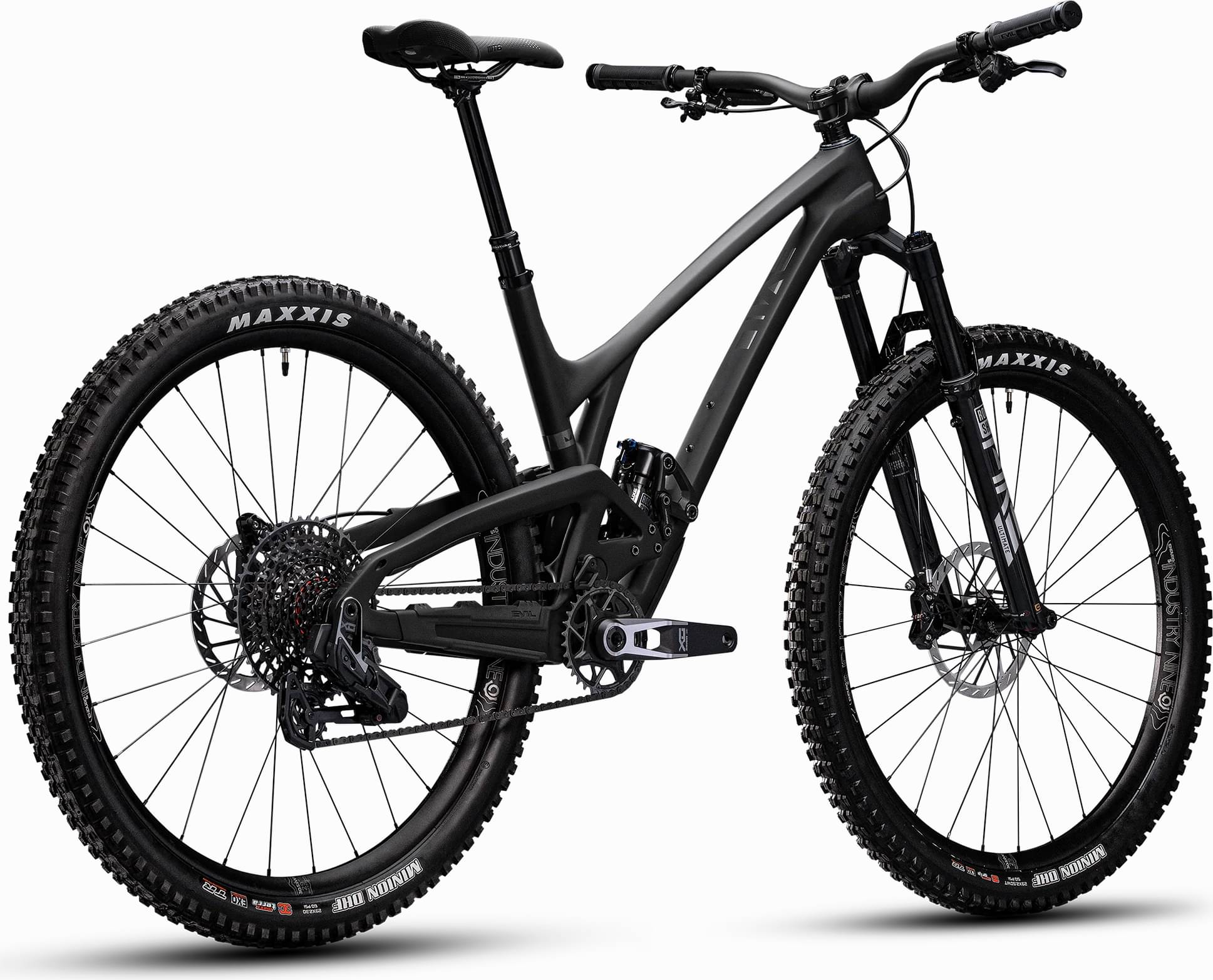

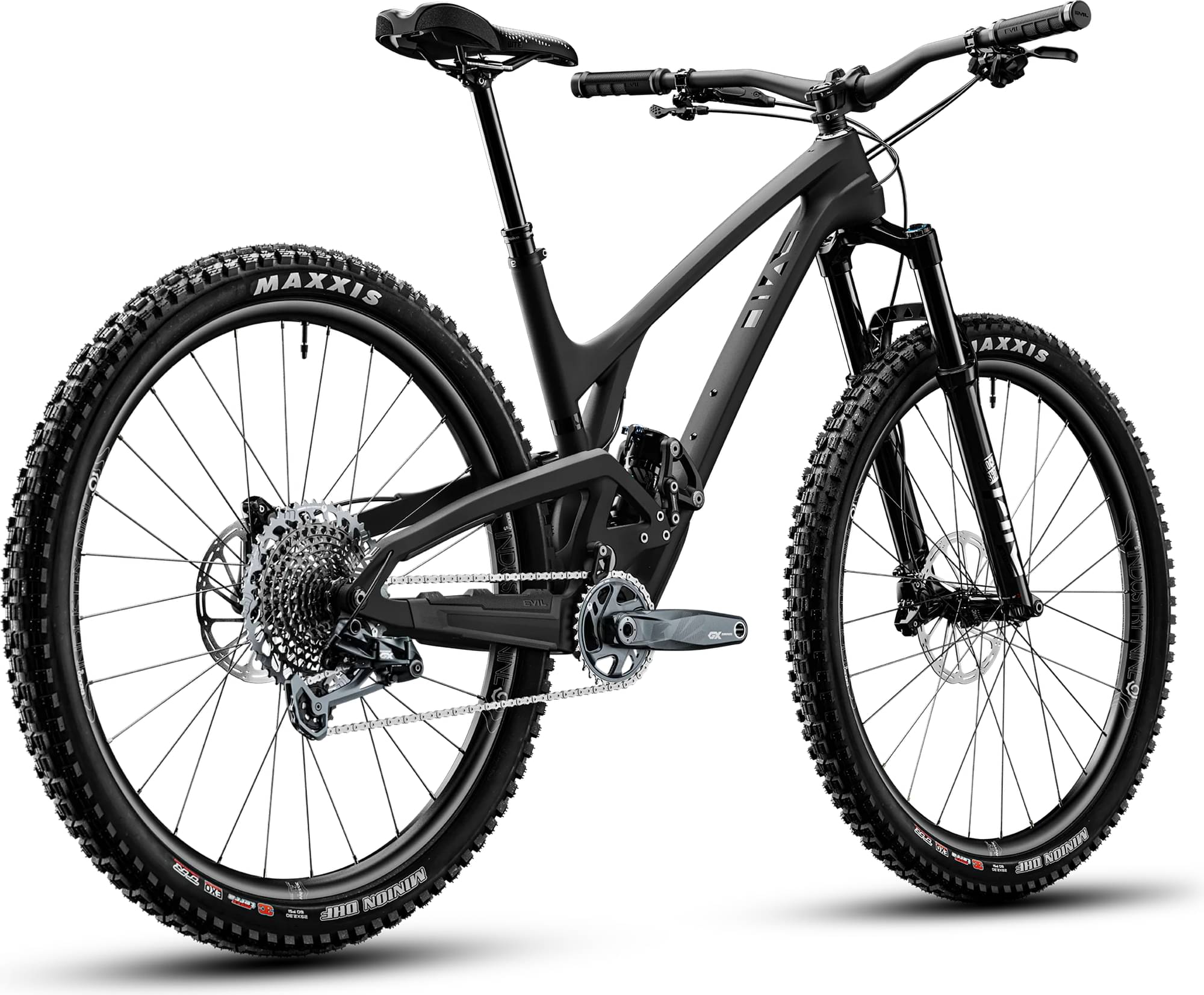

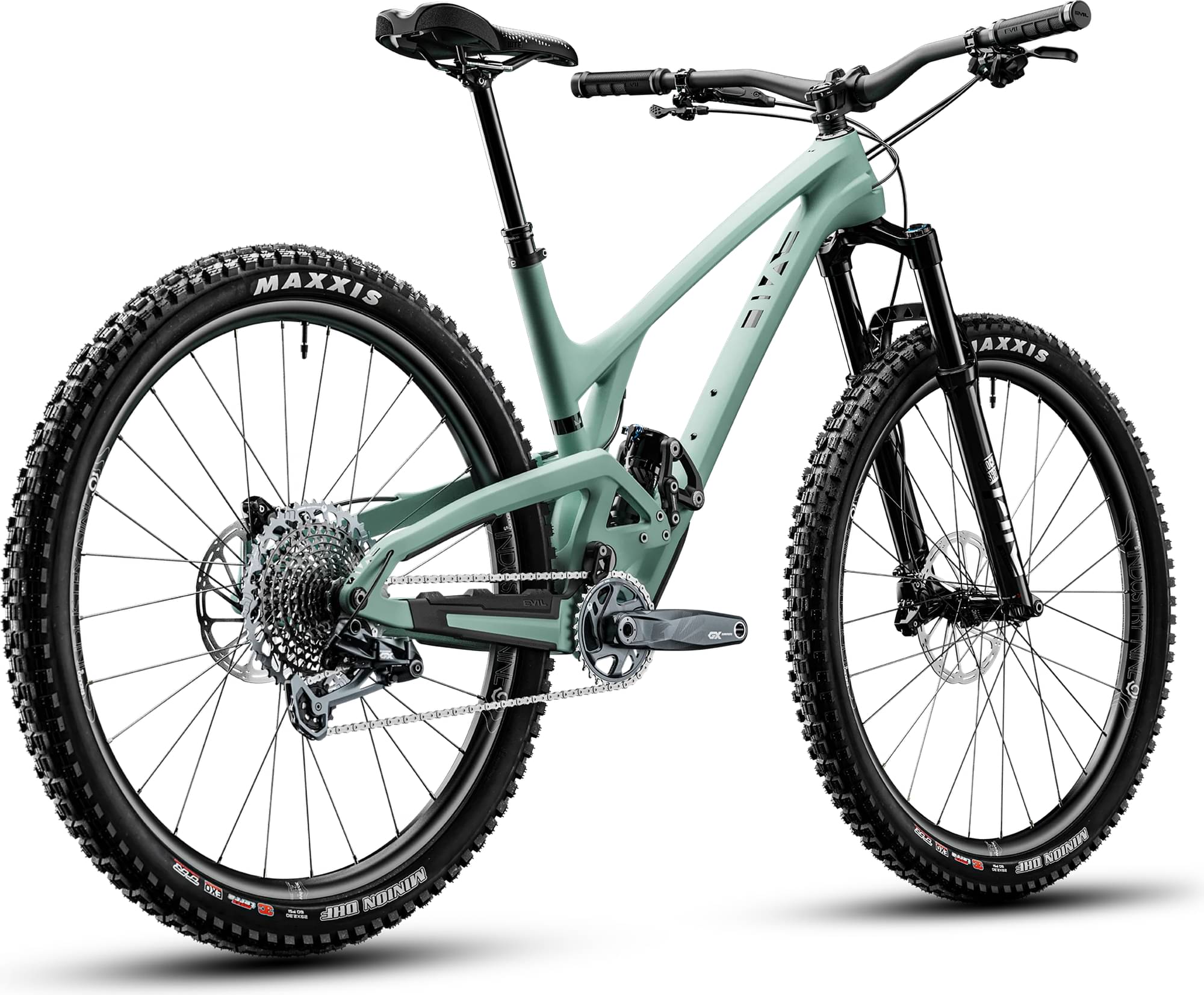

Evil Following – LS SRAM XO EAGLE TRANSMISSION HYDRA 2023
2023 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 121mm -
Fork RockShox Pike Ultimate
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

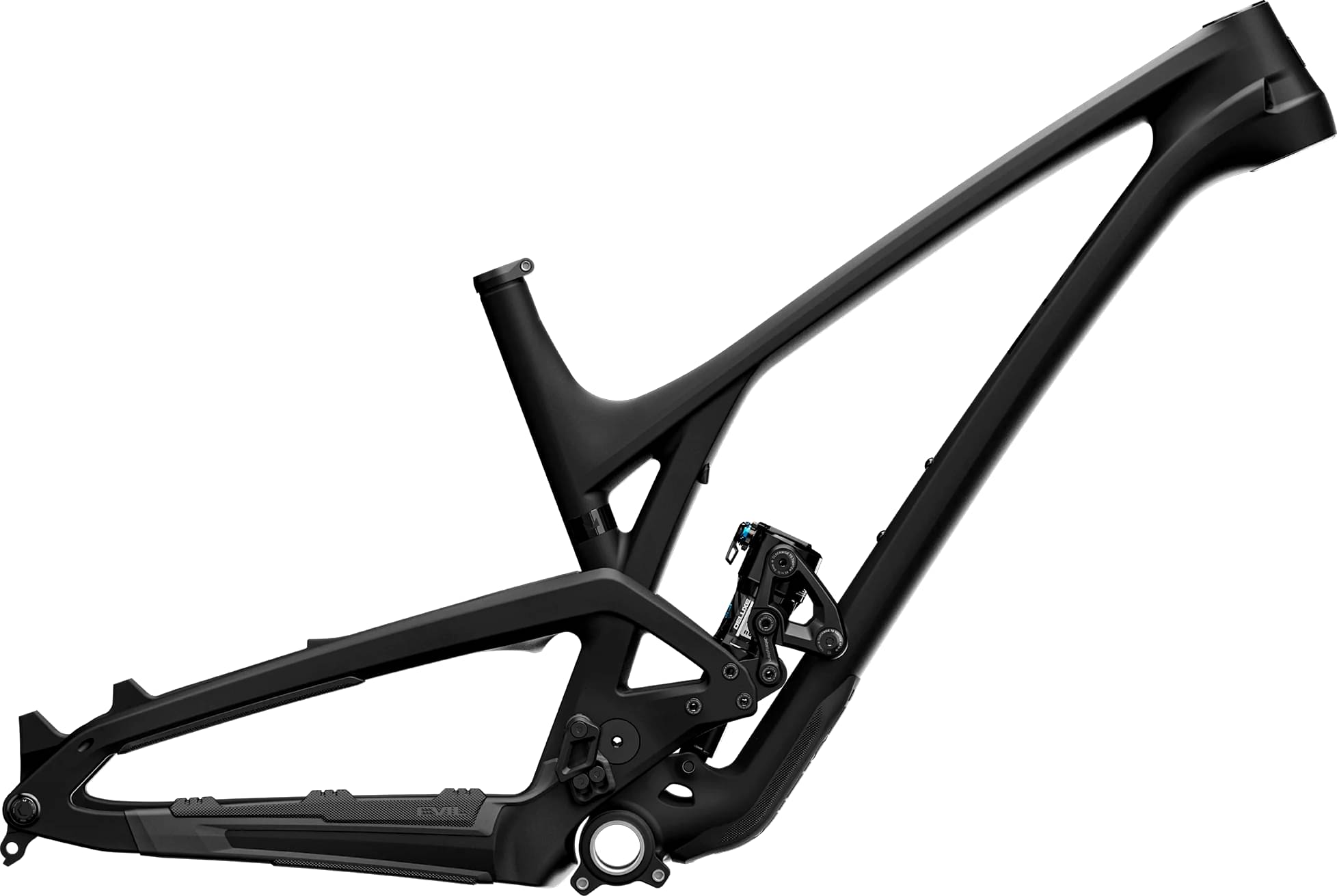

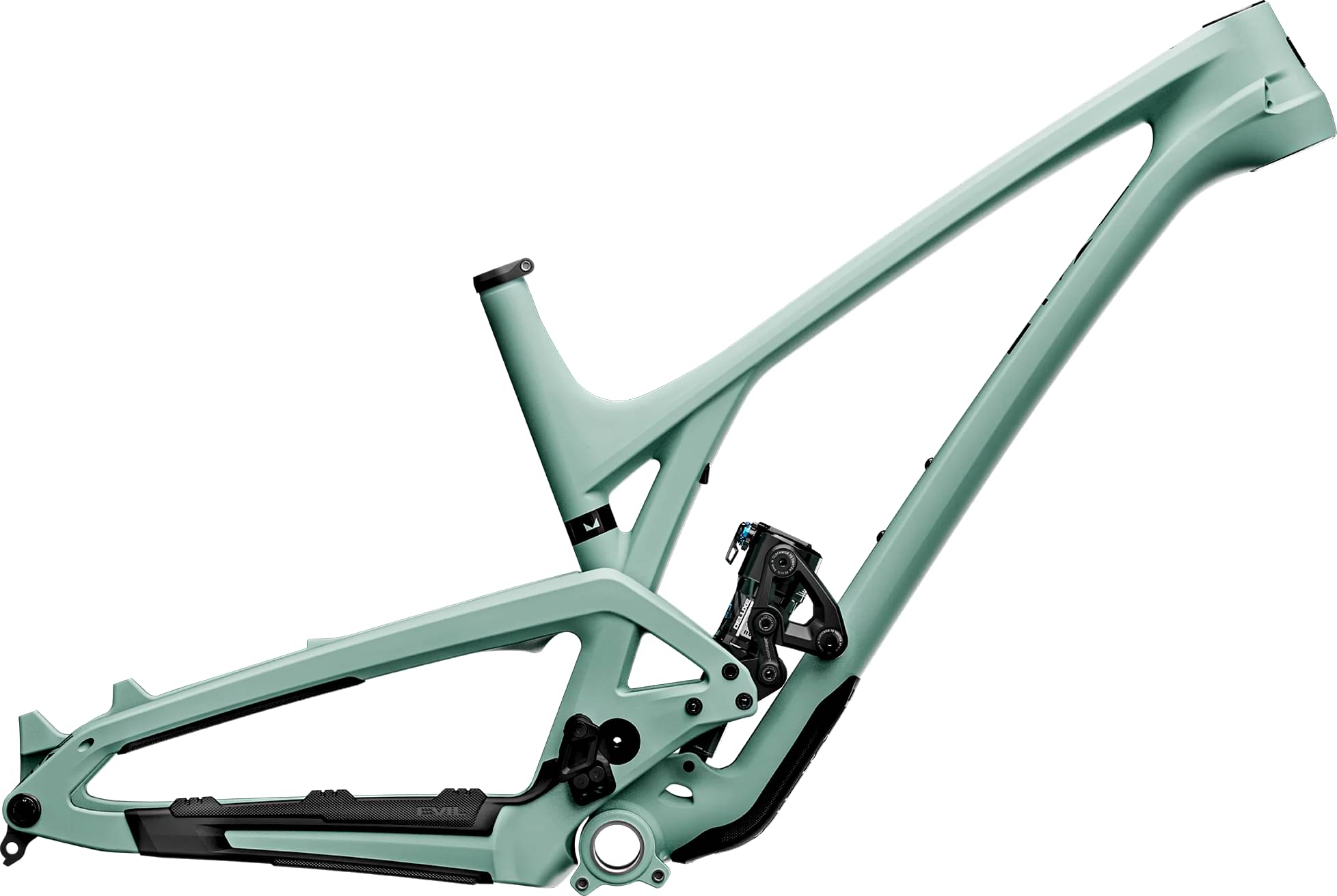

Following 121mm Travel, UD Carbon, Full Interna Cable Routing, SB+ 157, Integrated Chain Guide Threaded BB
Suspension Fork
Rockshox Pike Ultimate, Charger 3 RC2 W/ ButterCups, 130mm Travel, 44mm Offset
Rear Shock
Rockshox Deluxe Ultimate, Trunnion 165x45, 0L1 LNLC 38TS C1
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission Derailleur
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM X0 Eagle Transmission Cassette, 10-52T, 10, 12, 14, 16, 18, 21, 24, 28, 32, 38, 44, 52
Crank
SRAM X0 Eagle Crankset, DUB, 170mm, Direct Mount 32t, 55mm Chainline, Aluminum
Bottom Bracket
73mm Threaded
Chain
SRAM X0 Eagle Transmission Flat Top Chain w/Powerlock, 116 Link
Wheels
Rims
121mm
Tires
Maxxis Minion DHF EXO TR, 29x2.5
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Evil 12 Gauge, Clamp: 35mm, Length: 45mm
Handlebar
Evil Boomstick Carbon, Backsweep: 8°, Upsweep 5° Clamp:35mm, Rise: 35mm, Width: 810mm
Grips
Evil Palmela Handerson lock-on
Headset
Cane Creek 40 Series ZS Integrated Tapered Headset - Cups: ZS44/28.6 (Upper) and ZS62/40(Lower), Bearing: 36° x 45° - 41mm (Upper) and 36° x 45° - 52mm (Lower) ZN40 Zinc Coated, Crown Race: 28.6mm x 36° Integrated (Upper) and 40mm x 36° Press Fit (Lower)
Seat
Saddle
WTB Volt Pro
Seatpost
Bike Yoke Revive, S: 125mm, M: 160mm, L: 185m XL: 185mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | SM Low | MD Low | MD Low | LG Low | LG Low | XL Low | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.332 mm | 1.343 mm | 1.313 mm | 1.324 mm | 1.258 mm | 1.268 mm | 1.228 mm | 1.237 mm |
| Bottom Bracket Height | 337 mm | 330 mm | 337 mm | 330 mm | 337 mm | 330 mm | 337 mm | 330 mm |
| Front Center | 728 mm | mm | 755 mm | mm | 775 mm | mm | 799 mm | mm |
| Rake | 49 mm | mm | 48 mm | mm | 48 mm | mm | 48 mm | mm |
| Trail | 100 mm | 104 mm | 100 mm | 104 mm | 100 mm | 104 mm | 100 mm | 104 mm |
| Stack | 586 mm | 583 mm | 604 mm | 601 mm | 604 mm | 601 mm | 614 mm | 611 mm |
| Reach | 440 mm | 434 mm | 460 mm | 454 mm | 480 mm | 474 mm | 500 mm | 494 mm |
| Top Tube Length | 584 mm | 586 mm | 611 mm | 613 mm | 631 mm | 633 mm | 652 mm | 654 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° |
| Head Tube Angle | 66.9 ° | 66.4 ° | 66.9 ° | 66.4 ° | 66.9 ° | 66.4 ° | 66.9 ° | 66.4 ° |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm |
| Wheelbase | 1156 mm | mm | 1183 mm | mm | 1203 mm | mm | 1227 mm | mm |
| Bottom Bracket Drop | 36 mm | 44 mm | 36 mm | 44 mm | 36 mm | 44 mm | 36 mm | 44 mm |
| Standover Height | 652 mm | 646 mm | 666 mm | 660 mm | 677 mm | 671 mm | 690 mm | 684 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Following – LS SRAM XO EAGLE TRANSMISSION HYDRA is an Evil Following model. 42 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Evil Following – LS SRAM GX MECHANICAL i9 HYDRA 2023 is the most affordable bike of this model and has a price of 6999$. On the other hand, Evil Following – SID XX SRAM 2023, is the most expensive and costs 12706$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Following – LS SRAM XO EAGLE TRANSMISSION HYDRA components
Fork
The Following – LS SRAM XO EAGLE TRANSMISSION HYDRA comes factory-installed with the RockShox Pike Ultimate fork. This has a travel range of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Following – LS SRAM XO EAGLE TRANSMISSION HYDRA has a rear shock with a travel of 121mm. The model Rockshox Deluxe Ultimate is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Following – LS SRAM XO EAGLE TRANSMISSION HYDRA 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Evil Following – LS SRAM XO EAGLE TRANSMISSION HYDRA is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Following – LS SRAM XO EAGLE TRANSMISSION HYDRA. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
