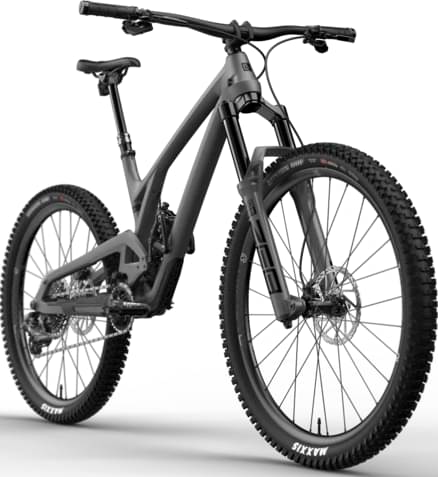

Evil Insurgent / AXS I9 Hydra 2021
2021 Mountain
Estimate price |
8,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 168mm -
Fork RockShox ZEB Ultimate
-
Groupset X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing, Integrated Chain Guide, Threaded BB
Suspension Fork
Rockshox ZEB Ultimate 27.5, Charger 2.1 RC2, 180mm Travel, 44mm Offset
Rear Shock
Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, 12 sp
Front Derailleur
Single Ring Only
Shift Levers
SRAM Eagle AXS Controller
Cassette
SRAM XG-1295-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Crank
SRAM X01 Eagle DUB, SUPERBOOST+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar
Bottom Bracket
73mm Threaded
Chain
SRAM XX1 Eagle w/Powerlock
Wheels
Rims
168mm
Tires
Front: Maxxis Minion DHF EXO TR, 27.5x2.5, Rear: Maxxis Minion DHF EXO TR, 27.5x2.3
Cockpit
Stem
Evil 12 Gauge Stem, Length: 35mm
Handlebar
Evil Boomstick Carbon, Backsweep: 8°, Upsweep: 5° Clamp: 35mm, Rise: 35mm, Width: 810mm
Grips
Evil Palmela Handerson lock-on
Headset
Works Components 1 Degree Angleset
Seat
Saddle
WTB Volt Pro
Seatpost
SRAM AXS Reverb, 30.9, S: 125mm, M: 150mm, L/XL: 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm | 358 mm |
| Front Center | 785 mm | 806 mm | 832 mm | 857 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 131 mm | 131 mm | 131 mm | 131 mm |
| Stack | 628 mm | 637 mm | 649 mm | 659 mm |
| Reach | 450 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 619 mm | 640 mm | 661 mm |
| Seat Tube Angle | 76.9 ° | 76.9 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 64.2 ° | 64.2 ° | 64.2 ° | 64.2 ° |
| Head Tube Length | 104 mm | 114 mm | 127 mm | 139 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1222 mm | 1243 mm | 1269 mm | 1294 mm |
| Bottom Bracket Drop | 1 mm | 1 mm | 1 mm | 1 mm |
| Standover Height | 712 mm | 723 mm | 731 mm | 743 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Insurgent / AXS I9 Hydra completes the Evil Insurgent model. There are 48 bikes that carry this model name. You can easily view all of the Evil Insurgent bikes models from 2021, here.
Model range prices
Evil Insurgent / GX I9 Hydra MX 2021 is the cheapest bike model and costs 5999$. Evil Insurgent / AXS I9 Hydra 2021 is the most expensive one and costs 8299$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Evil released this model in 2021, its price was 8299$. Comparing this to the average Enduro bike price, we see that the price is 130.59% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The RockShox ZEB Ultimate is included from the factory. It has a travel distance of 180mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Rockshox Super Deluxe Coil Ultimate rear shock model, which has a travel of 168mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Insurgent / AXS I9 Hydra bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Evil Insurgent / AXS I9 Hydra is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Evil Insurgent / AXS I9 Hydra bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Evil model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
