Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 168mm -
Fork RockShox ZEB Ultimate
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing, Integrated Chain Guide, Threaded BB
Suspension Fork
Rockshox ZEB Ultimate 29, Charger 2.1 RC2, 170mm Travel, 44mm Offset
Rear Shock
Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12sp
Front Derailleur
Single Ring Only
Shift Levers
SRAM GX Eagle, 12sp
Cassette
SRAM XG-1275-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Crank
SRAM GX Eagle DUB, SUPERBOOST+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar
Bottom Bracket
73mm Threaded
Chain
SRAM GX Eagle w/Powerlock
Wheels
Rims
168mm
Tires
Front: Maxxis Minion DHF EXO TR, 29x2.5, Rear: Maxxis Minion DHF EXO TR, 27.5x2.3
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Evil 12 Gauge Stem, Length: 35mm
Handlebar
Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp:35mm, Rise: 35mm, Width: 810mm
Grips
Evil Palmela Handerson lock-on
Headset
Works Components 1 Degree Angleset
Seat
Saddle
WTB Volt Pro
Seatpost
Bike Yoke Revive, S:125mm, M: 160mm, L:185mm XL: 213mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm | 358 mm |
| Front Center | 785 mm | 806 mm | 832 mm | 857 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 131 mm | 131 mm | 131 mm | 131 mm |
| Stack | 628 mm | 637 mm | 649 mm | 659 mm |
| Reach | 450 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 619 mm | 640 mm | 661 mm |
| Seat Tube Angle | 76.9 ° | 76.9 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 64.2 ° | 64.2 ° | 64.2 ° | 64.2 ° |
| Head Tube Length | 104 mm | 114 mm | 127 mm | 139 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1222 mm | 1243 mm | 1269 mm | 1294 mm |
| Bottom Bracket Drop | 1 mm | 1 mm | 1 mm | 1 mm |
| Standover Height | 712 mm | 723 mm | 731 mm | 743 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

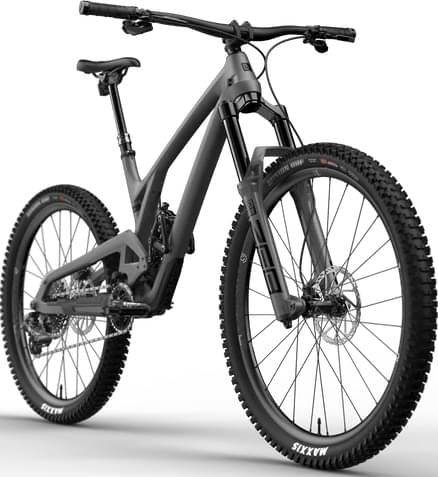

Insurgent / GX I9 Hydra MX completes the Evil Insurgent model. Evil released 48 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Insurgent / GX I9 Hydra MX components
Fork
The RockShox ZEB Ultimate is included from the factory. It has a travel distance of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the Rockshox Super Deluxe Coil Ultimate model, with a travel of 168mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the Insurgent / GX I9 Hydra MX bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Insurgent / GX I9 Hydra MX comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Evil Insurgent / GX I9 Hydra MX bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Evil Insurgent / GX I9 Hydra MX comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
